stock no. :
22200
Machine's group :
Type :

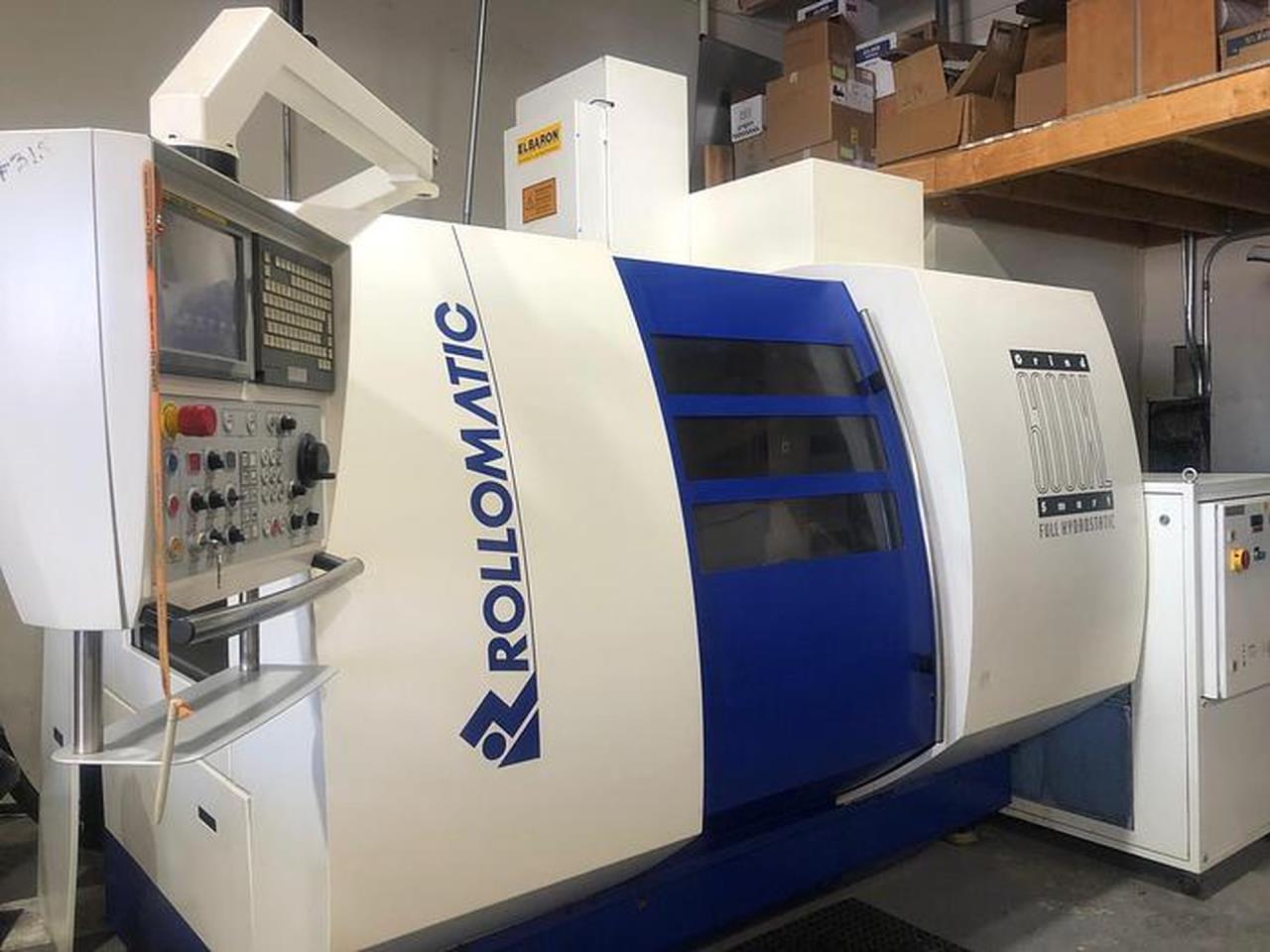

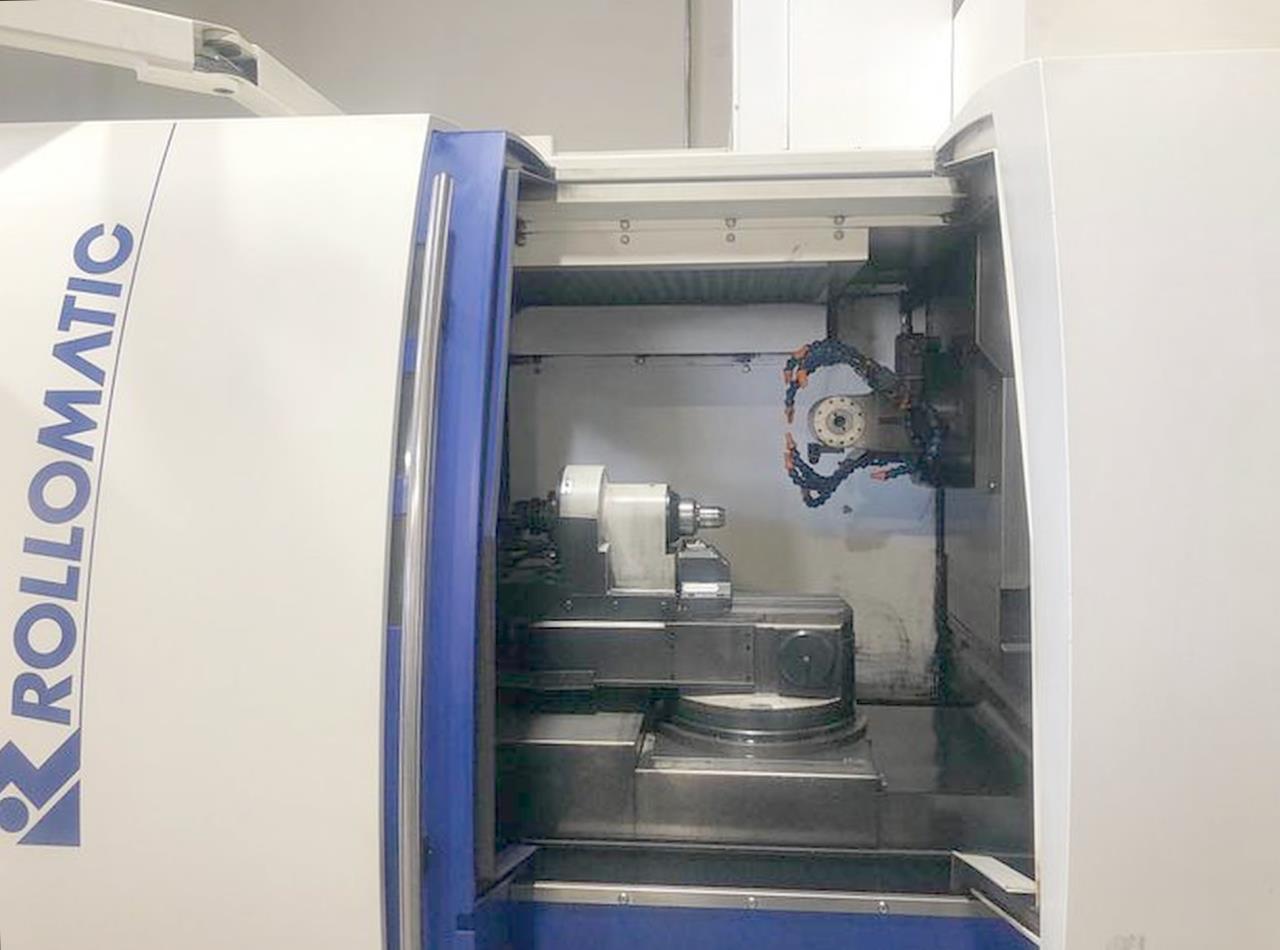

ROLLOMATIC 6000XL
Controller :
Fanuc 160-iMB
Jahrgang :
2005
Technical data
X axis
280 mm
Y axis
245 mm
Z axis
355 mm
grinding diameter
2 - 32 mm
Max. grinding wheel diamter
200 mm
A axis (grinding head rotaion)
240 °
Resolution
0.0001 °
Work piece spindle speed
60 rpm
B axis swivelling range
135 °
B axis resolution max.
0.0001 °
C axis (spindle,resolution)
0.0001 °

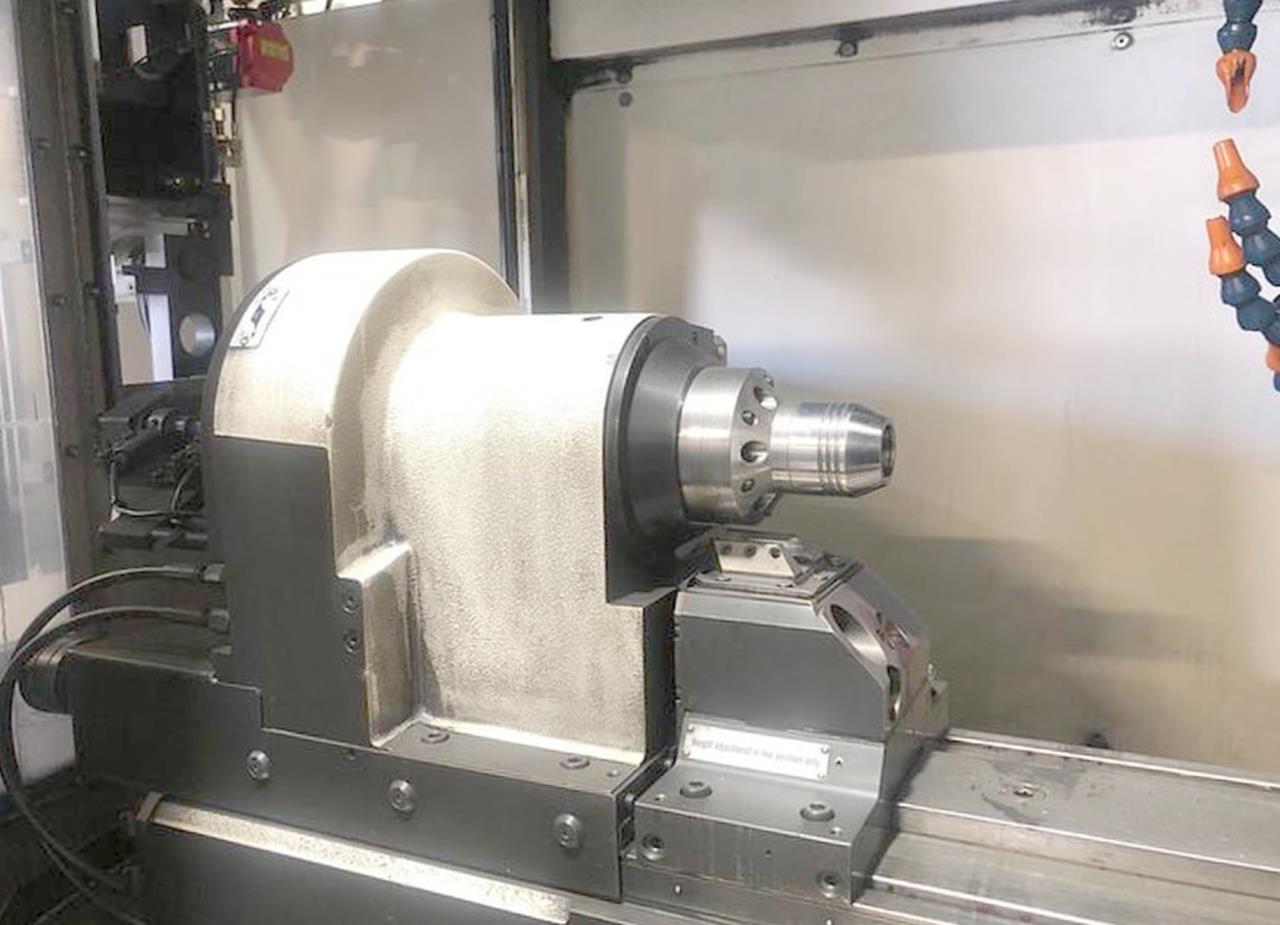

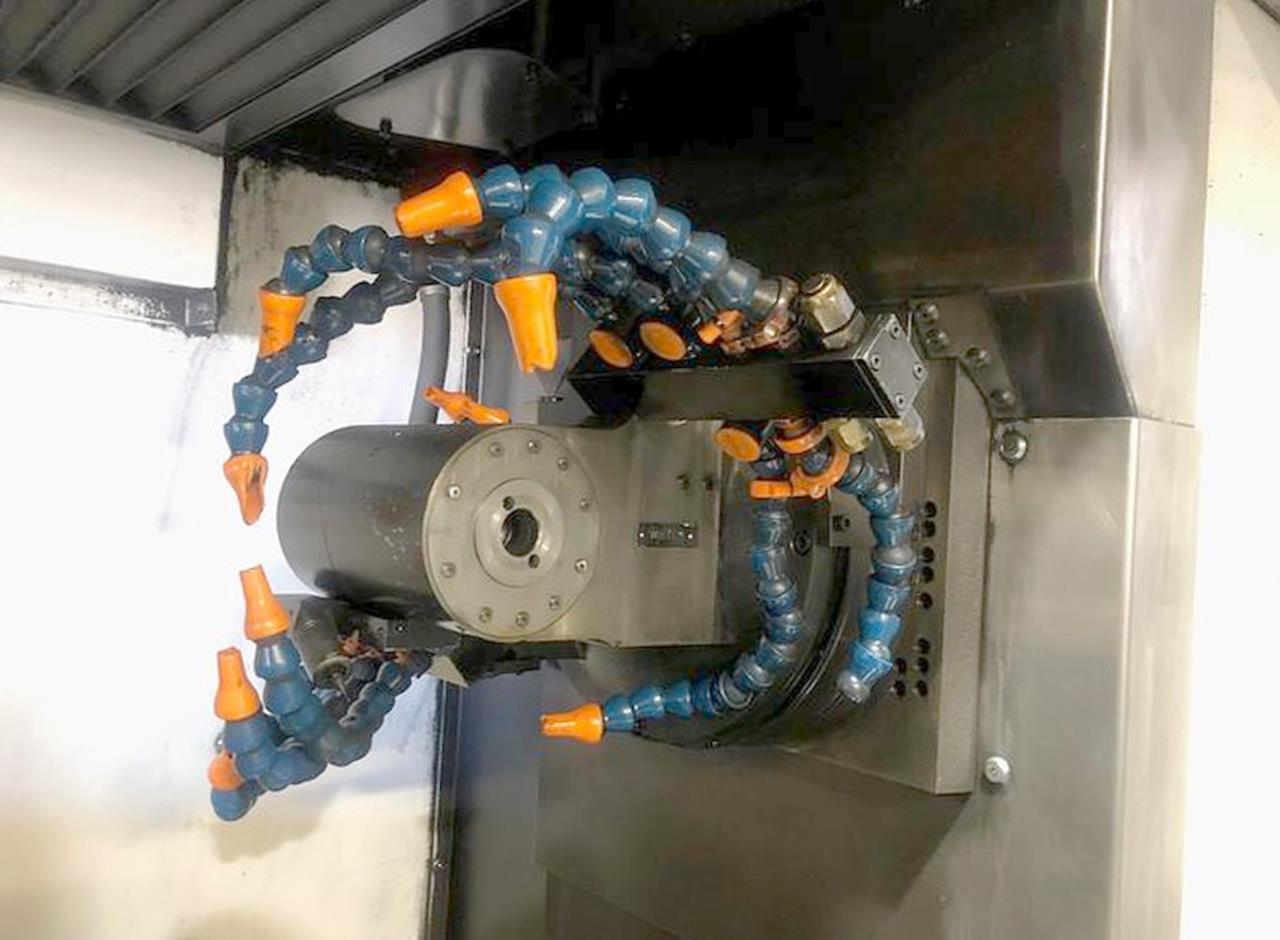

Work piece spindle head:
Collet attachment
31 / 20 W
Grinding spindle speeds:
from
0 rpm
up to
8000 rpm
Rapid traverse X
20 m/min
Rapid traverse Y
15 m/min
Rapid traverse Z
20 m/min
Voltage 60 Hz
480 Volt
Grinding spindle motor
20 kW
Overall dimensions machine:
Length
2640 mm
Width
2380 mm
Height
2720 mm
Various accessories:

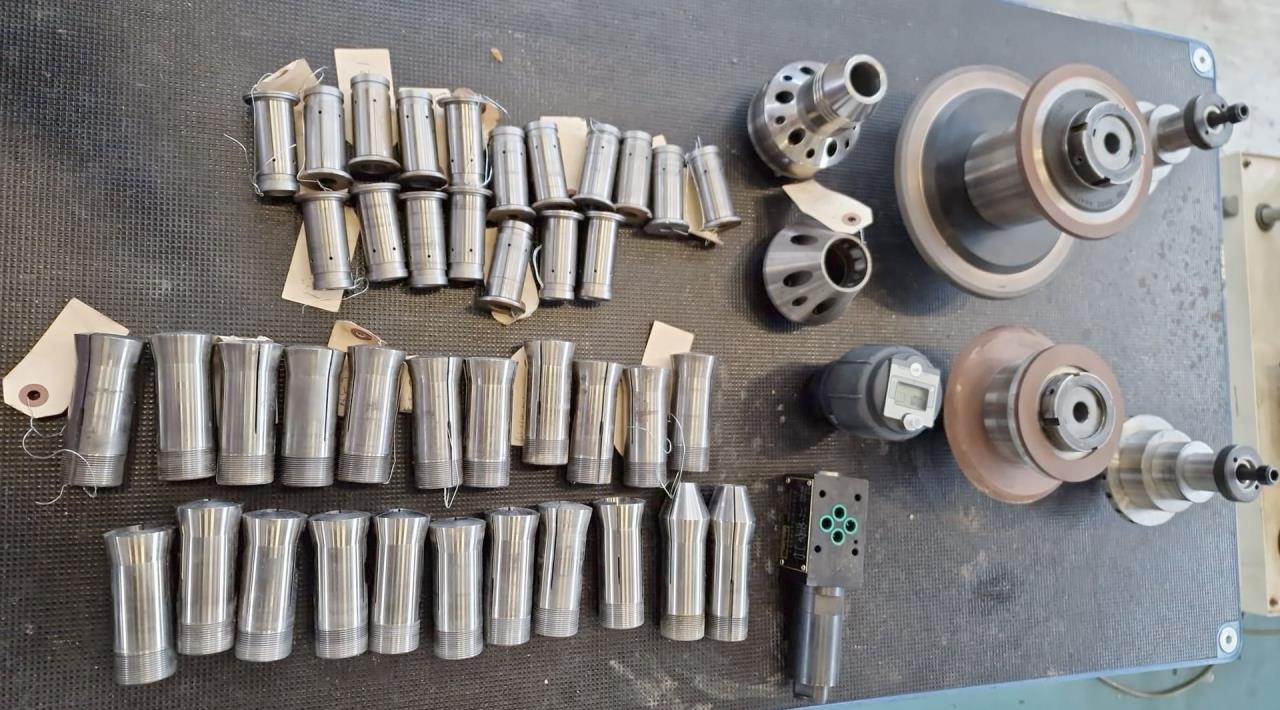

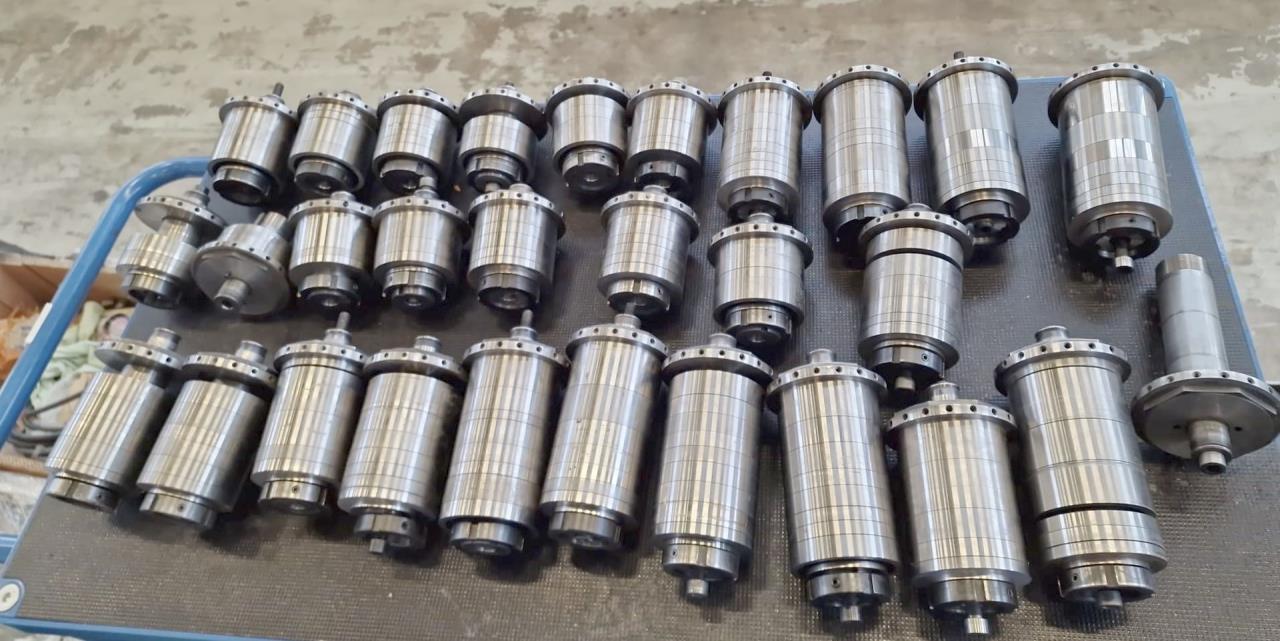

Set of collets
Set of flanges

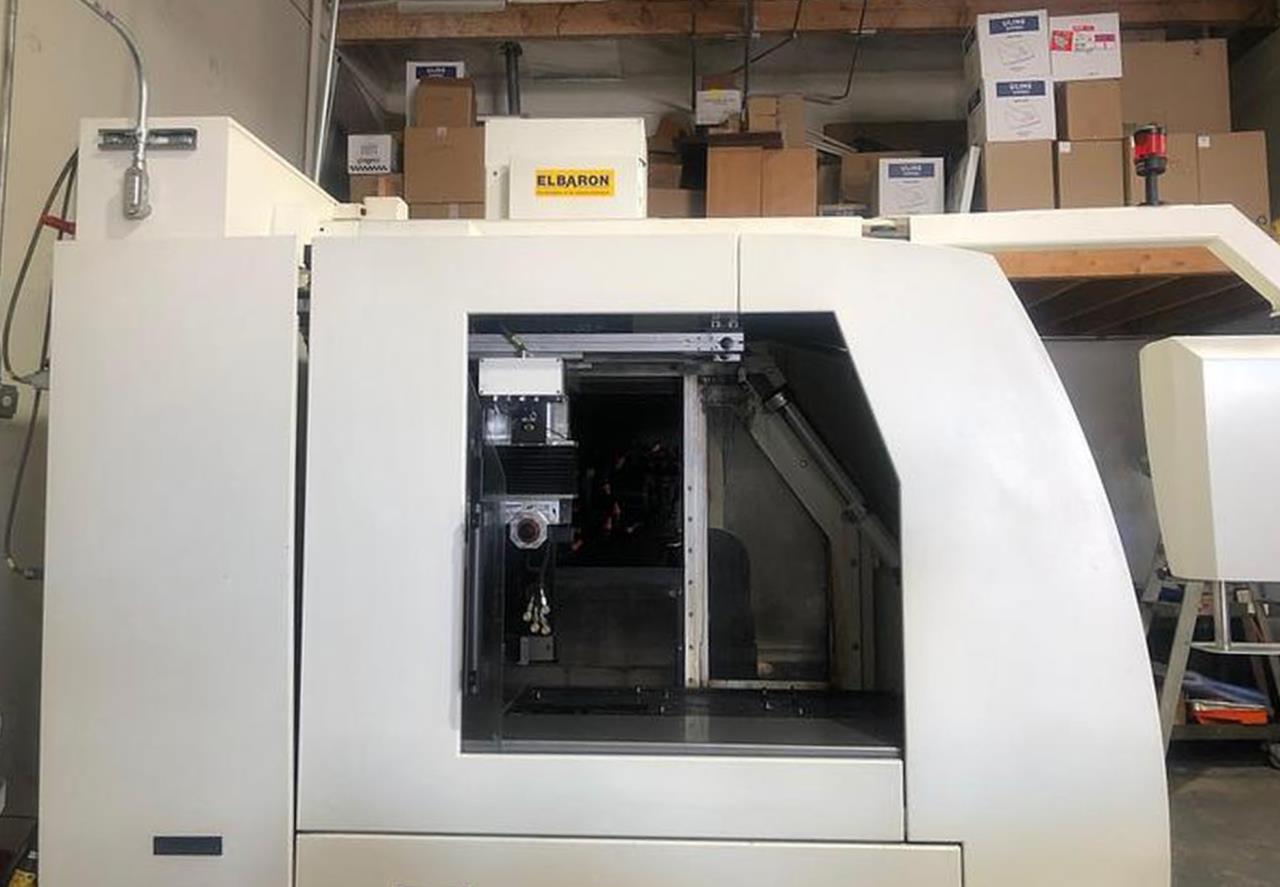

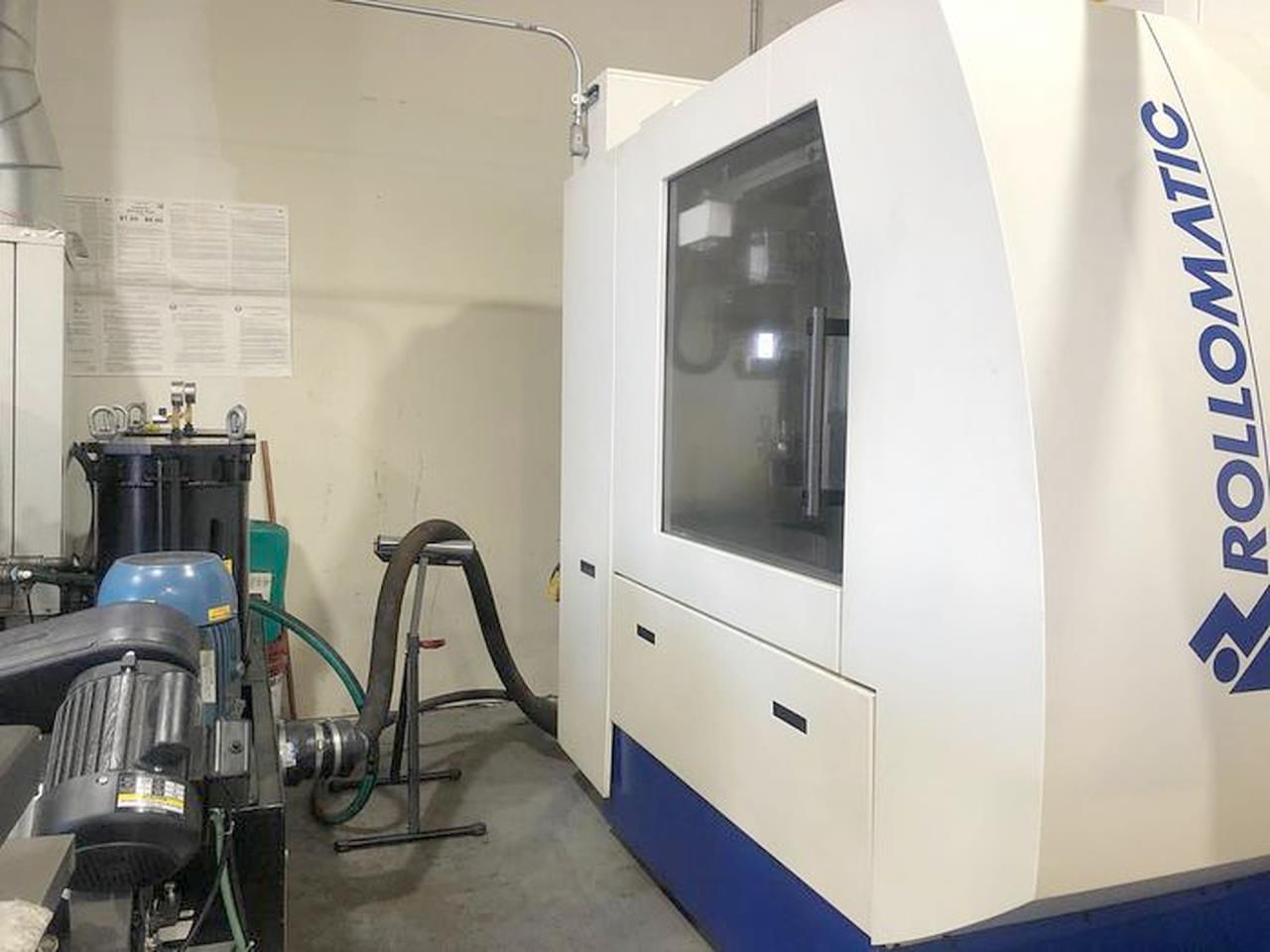

Oil mist extractor
ELBARON
Workpiece loader
Control System:

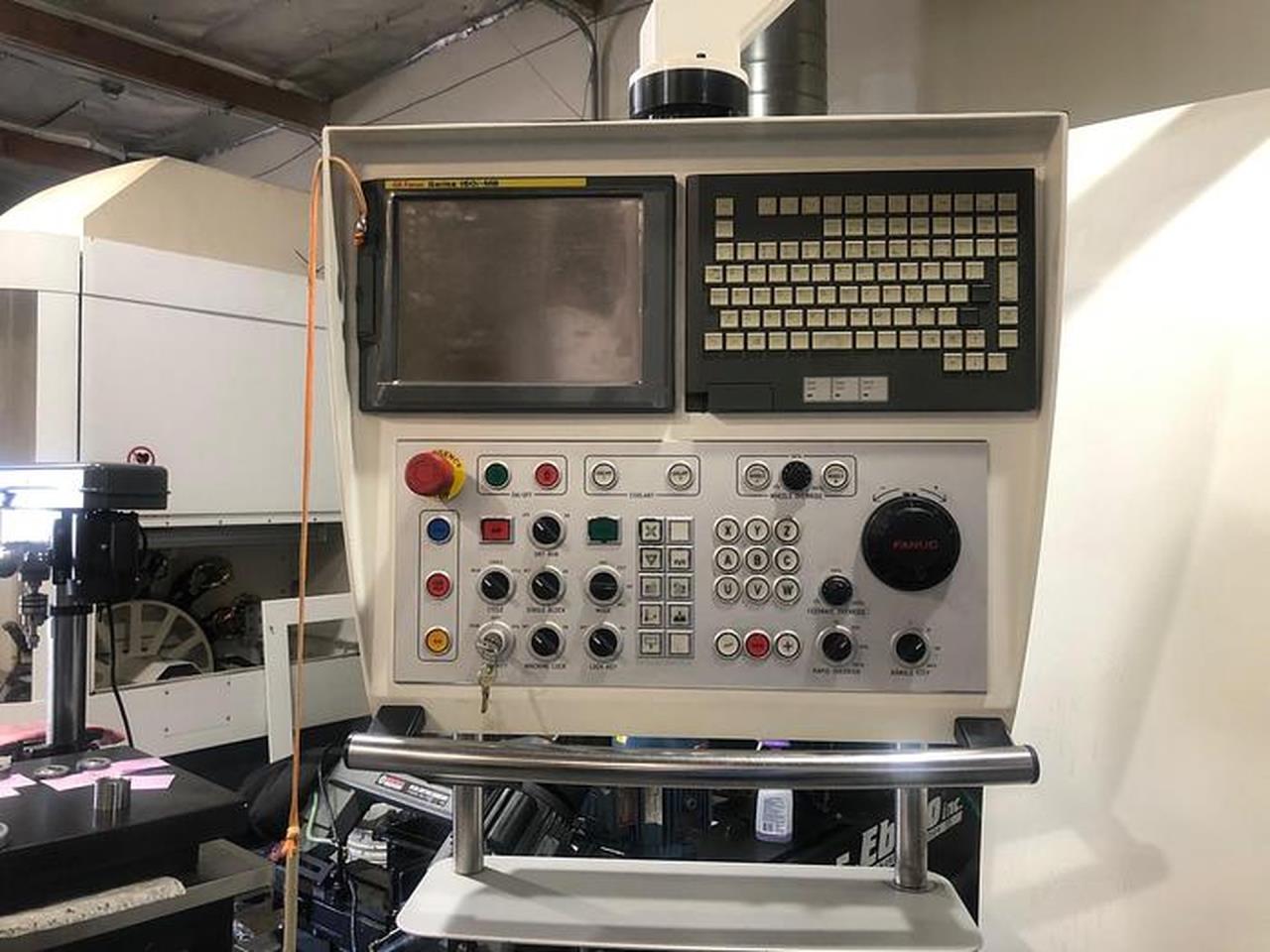

- Machine control FANUC 160-iMB 9-axis
Interface FANUC/PC including Windows 2000
Rollomatic Software:
Grinding: Endmills, ballnose and radius endmills
Taper tools, ballnose and radius taper endmills
Drills/step drills, step tools
Burs (industrial, aluminum-cut, surgical, dental)
Routers
Medical/surgical components
Simulation: VirtualGrind PC programming system/simulation
FluteCalc 2-D simulation of flute shapes
3DCalc 3-D simulation of any tools
BurCalc 2-D and 3-D simulation of burs
TaperCalc 2-D and 3D simulation of tapered tools
ISO programming using Rollomatic co-ordinate system, incl. 3-D simulation
Probing routines (flutes and coolant holes)
Teach-in (wheel shapes and machine calibrations)
Graphic wheel display with zero offsets
Various control diagnostics
Technical specifications and pictures without guarantee.
