stock no. :
22171
Machine's group :
Type :

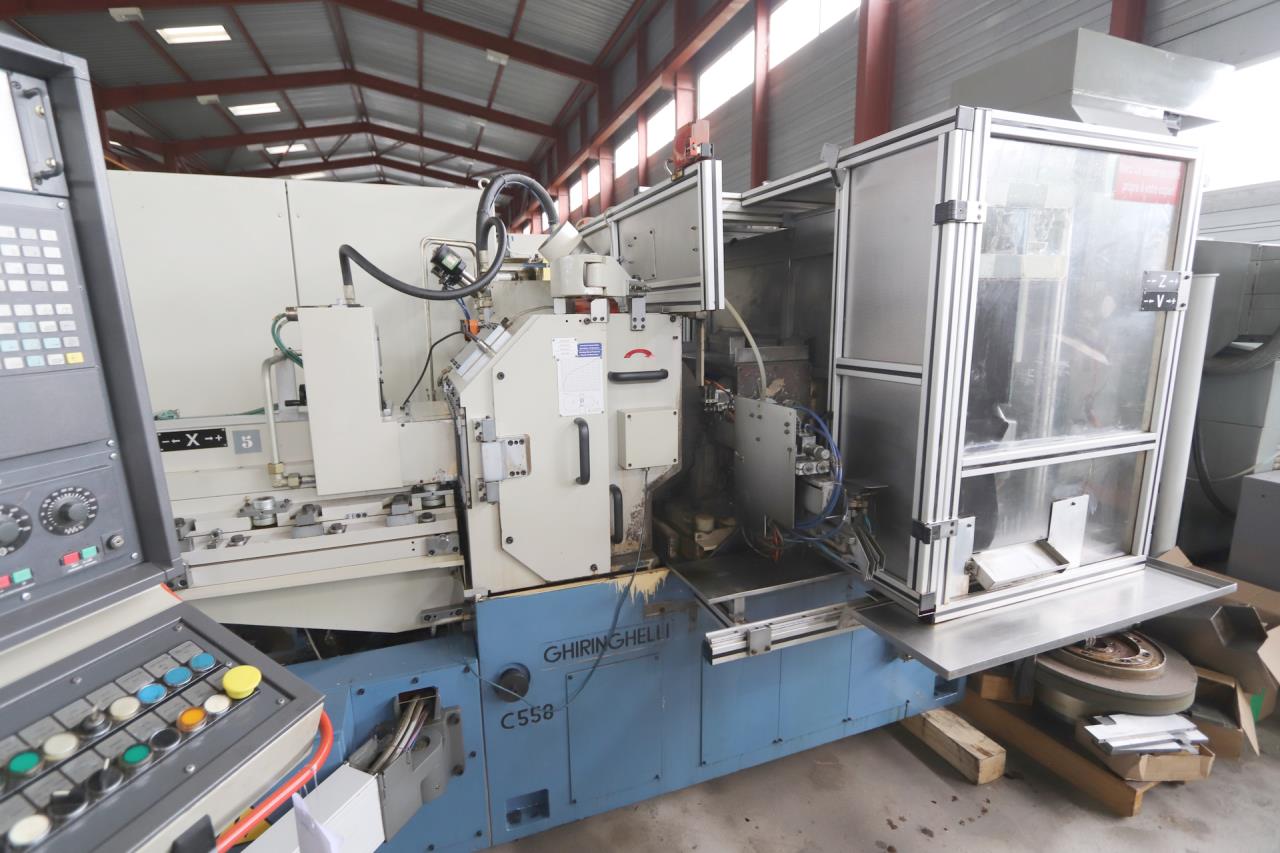

GHIRINGHELLI M150SP610
Controller :

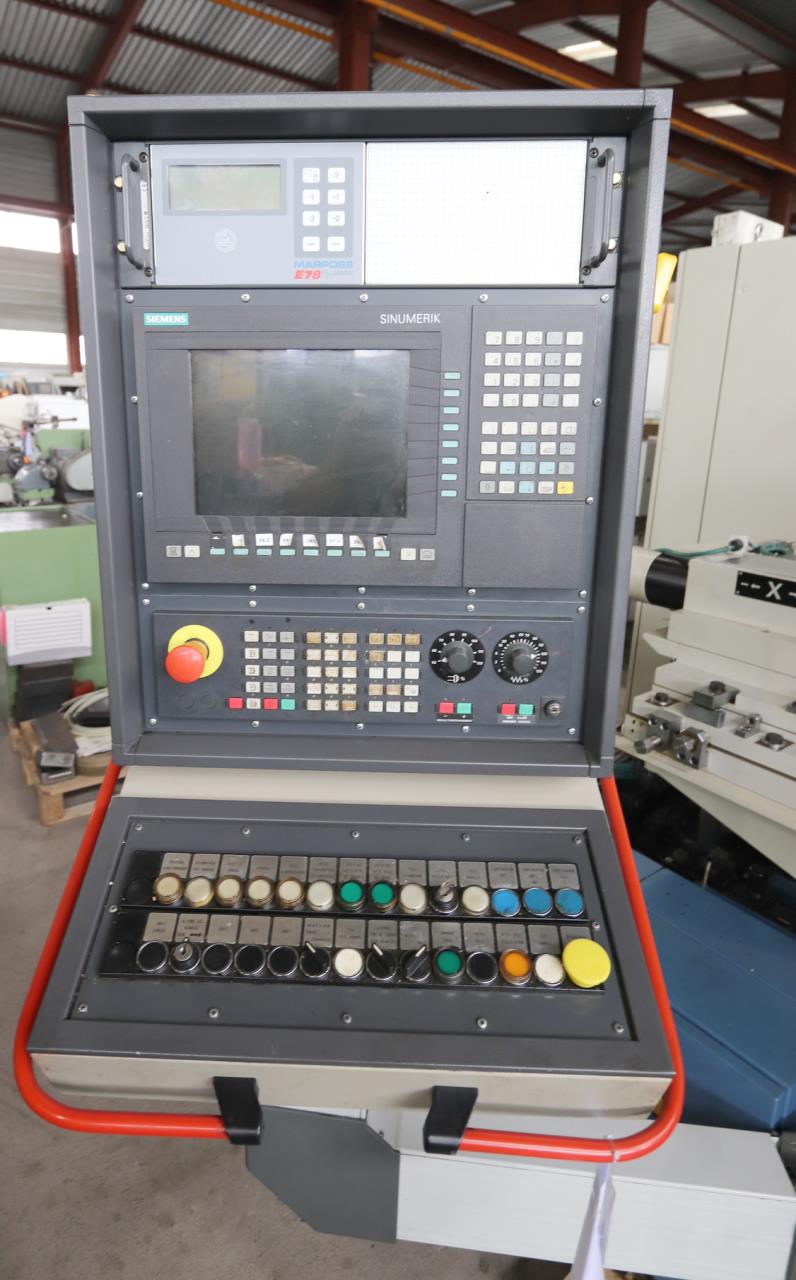

SIEMENS SINUMERIK 840 D
Technical data
Min. grinding diameter
1 mm
Max. grinding diameter
100 mm
Max. workpiece length
for infeed grinding
140 mm
Grinding wheel:
diameter new wheel
610 mm
diameter used wheel
440 mm
Width
200 mm
Bore
304.8 mm
Speed with new grinding wheel
1409 rpm
Speed with abraded grinding wheel
1685 rpm
Peripheral speed
45 m/s
Regulating spindle:
diameter new wheel
305 mm
diameter used wheel
220 mm
Width
200 mm
Swivelling range
-7 / +7 °
Speeds:
stepless
from
0 rpm
up to
140 rpm
Dressing speed
400 rpm
Voltage 50 Hz 3x
400 Volt
Air connect
5 bar
Total power required
45 kW
Machine's weight about
5800 kg
Overall dimensions machine:
Length
6200 mm
Width
3200 mm
Height
2542 mm

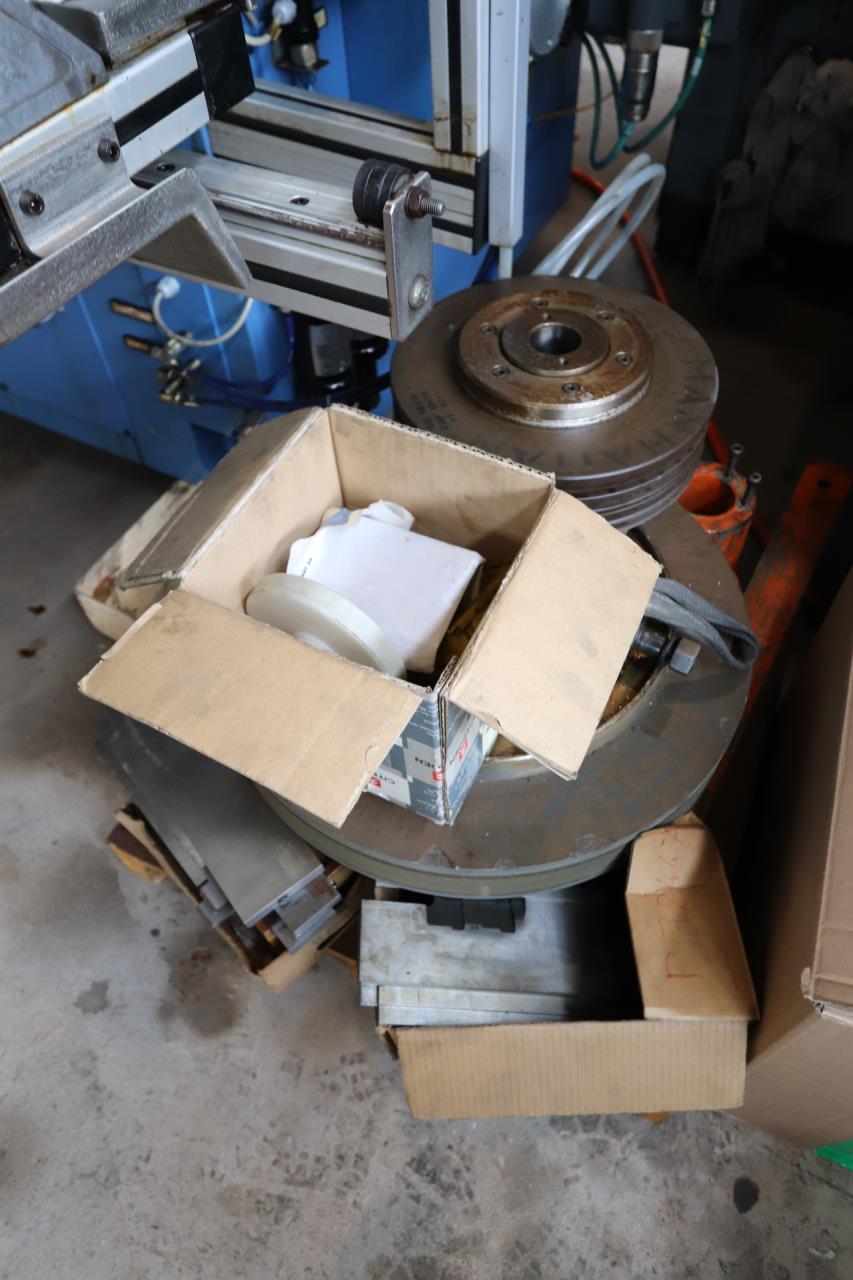

Various accessories:
New diamond wheel
Automatic infeed grinding attachment
Flange for grinding wheel
Flange for regulating wheel
Electronic balancing system
MARPOSS E78
Crushing profiling device
Central lubrification
Splash guard
Technical specifications and pictures without guarantee.
