Technical data
Min. grinding diameter
0.2 mm
Max. grinding diameter
40 mm
Width of the grinding wheel
100 mm
Max. workpiece length
for infeed grinding
100 mm
Grinding wheel:
diameter new wheel
300 mm
diameter used wheel
220 mm
Width
100 mm
Regulating spindle:
diameter new wheel
200 mm
diameter used wheel
160 mm
Width
100 mm
Speeds:
stepless
from
8 rpm
up to
200 rpm
Voltage 50 Hz 3x
380 Volt
Main motor
6.8 HP
Machine's weight about
1400 kg
Overall dimensions machine:
Length
1400 mm
Width
1000 mm
Height
1400 mm

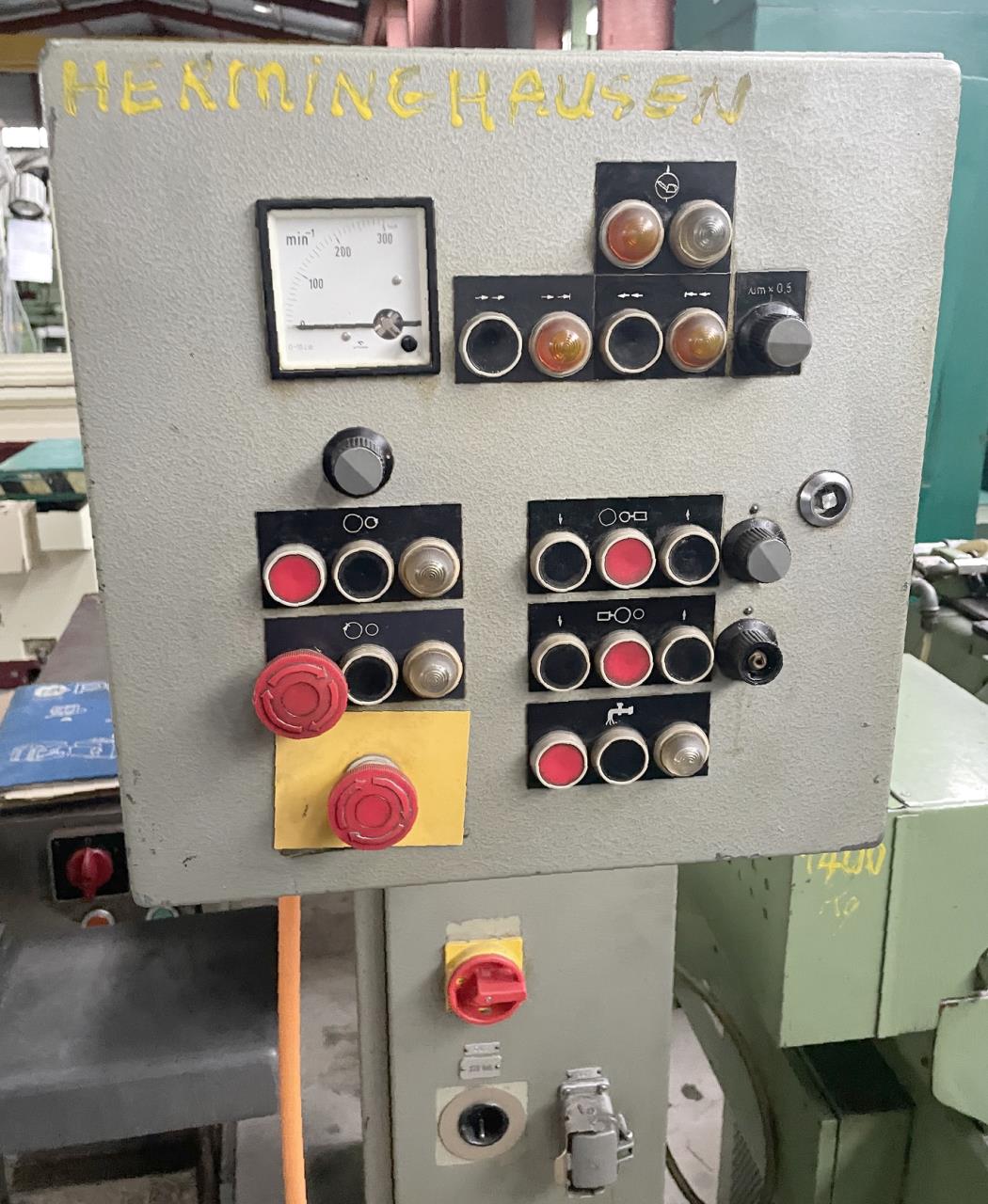

Dimensions of the control:
Length
1100 mm
Width
400 mm
Height
1600 mm
Various accessories:
Mechanic infeed grinding attachment
Technical specifications and pictures without guarantee.
