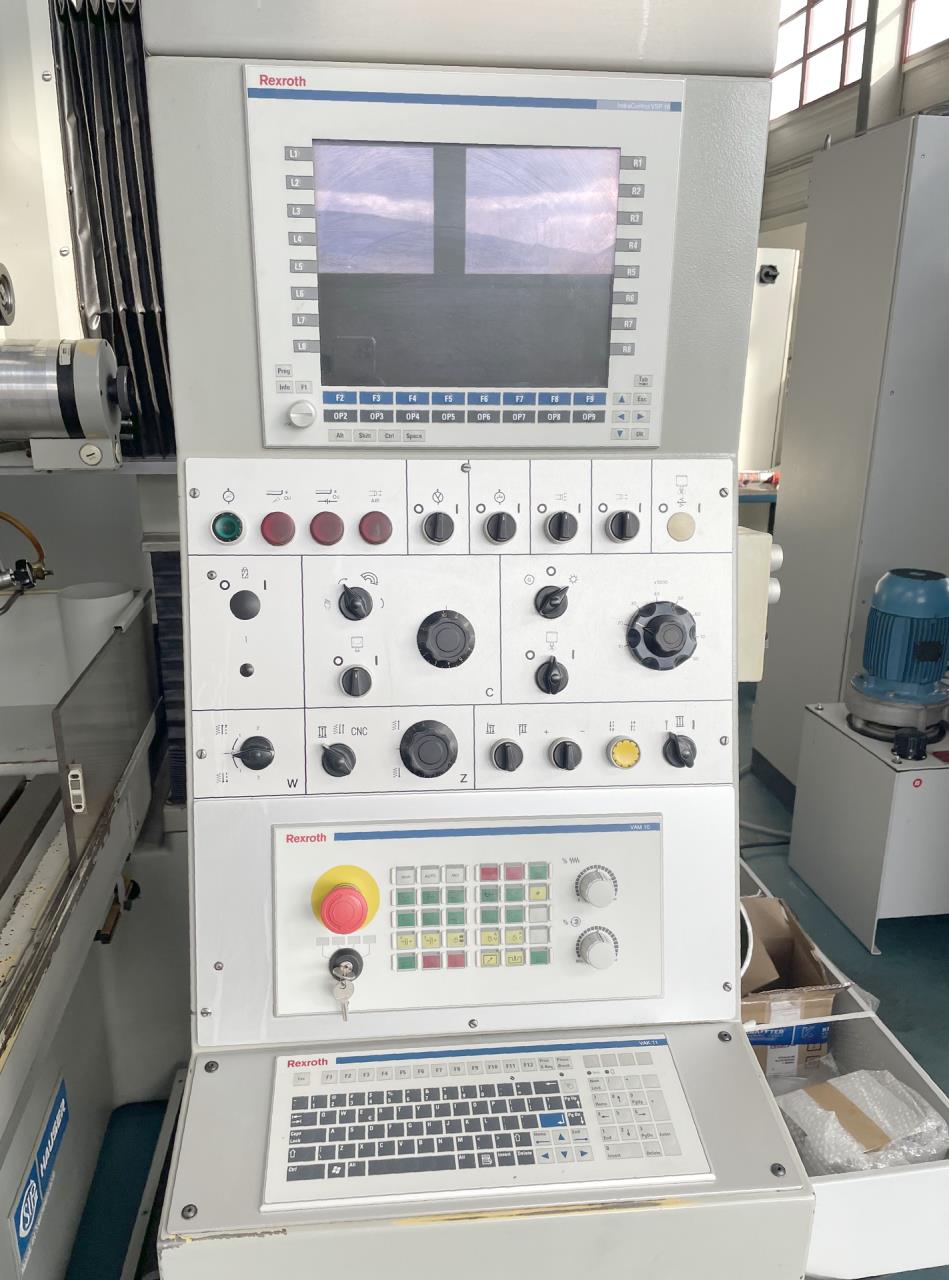

Technical data

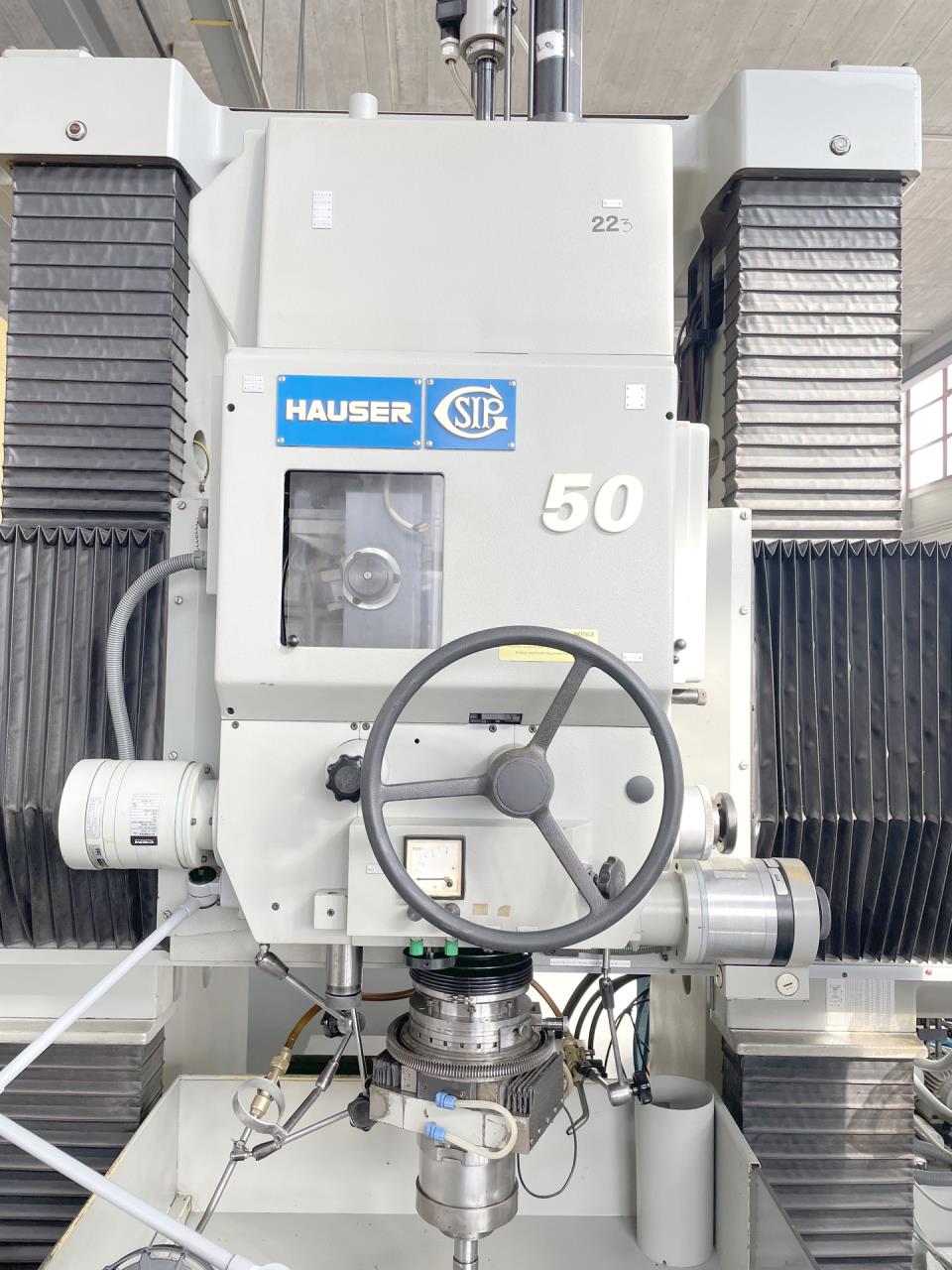

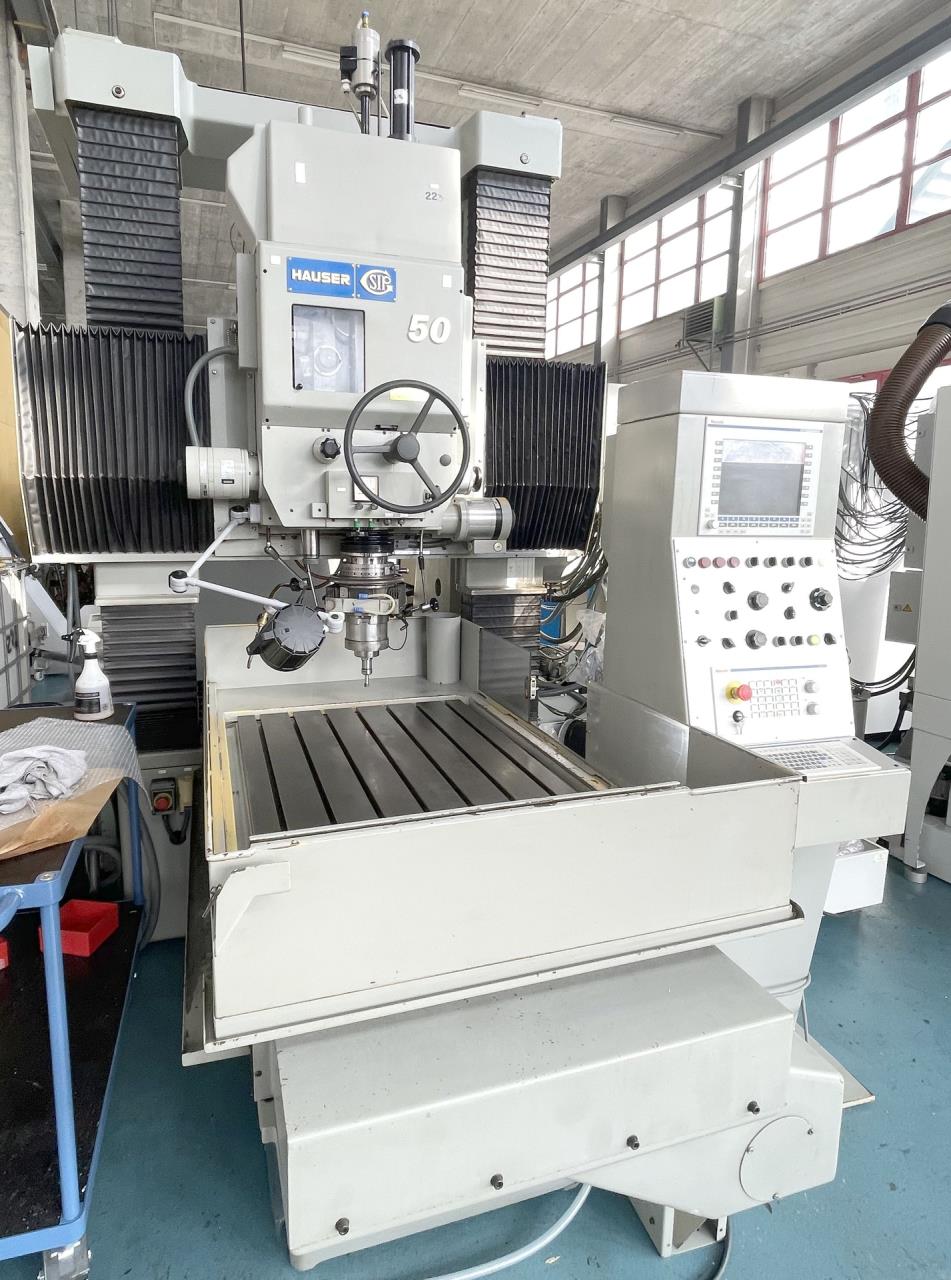

2 columns execution

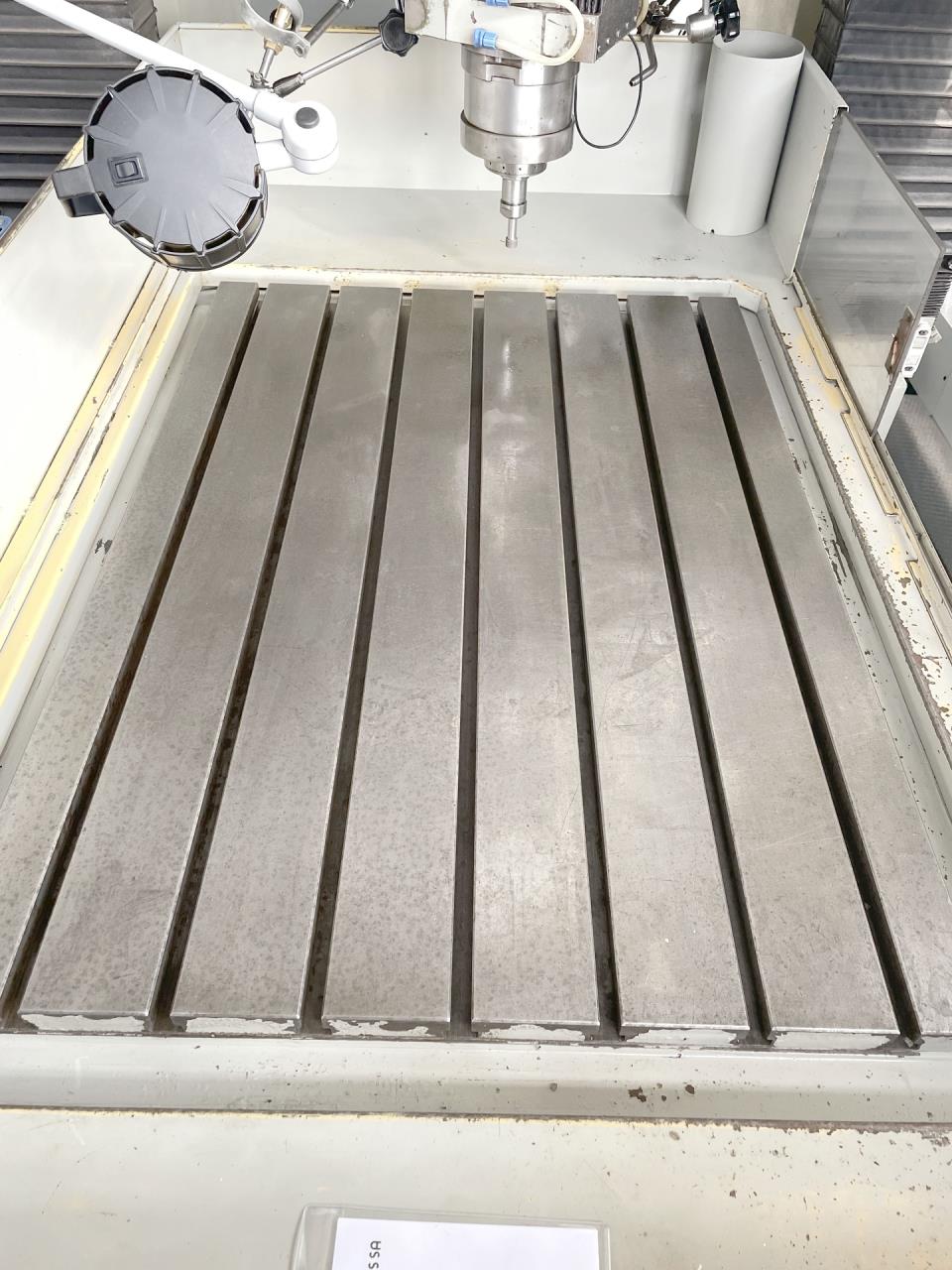

Table length
1020 mm
Table width
860 mm
Longitudinal travel (X-axis)
900 mm
Transversal travel (y-axis)
600 mm
Travel of the vertical slide
635 mm
Passage from grinding motor to table
750 mm
Max. grinding diameter
230 mm
with display-plate
360 mm
Passage between the columns
950 mm
Max. angle with taper grinding:
up to
16 °
Stroke speed Z-Axis:
Alternating stroke mouvement, infinitely adjust.
from Vmin.
0.500 mm/min
up to Vmax.
12000 mm/min
Stroke frequency Z
5.5 Hz
Stroke length Z, infinitely adjustable
0 - 170 mm
Radiale fine feed U-axis up to
5.5 mm
Planetary motion speeds: c axis
stepless
from
5 rpm
up to
300 rpm

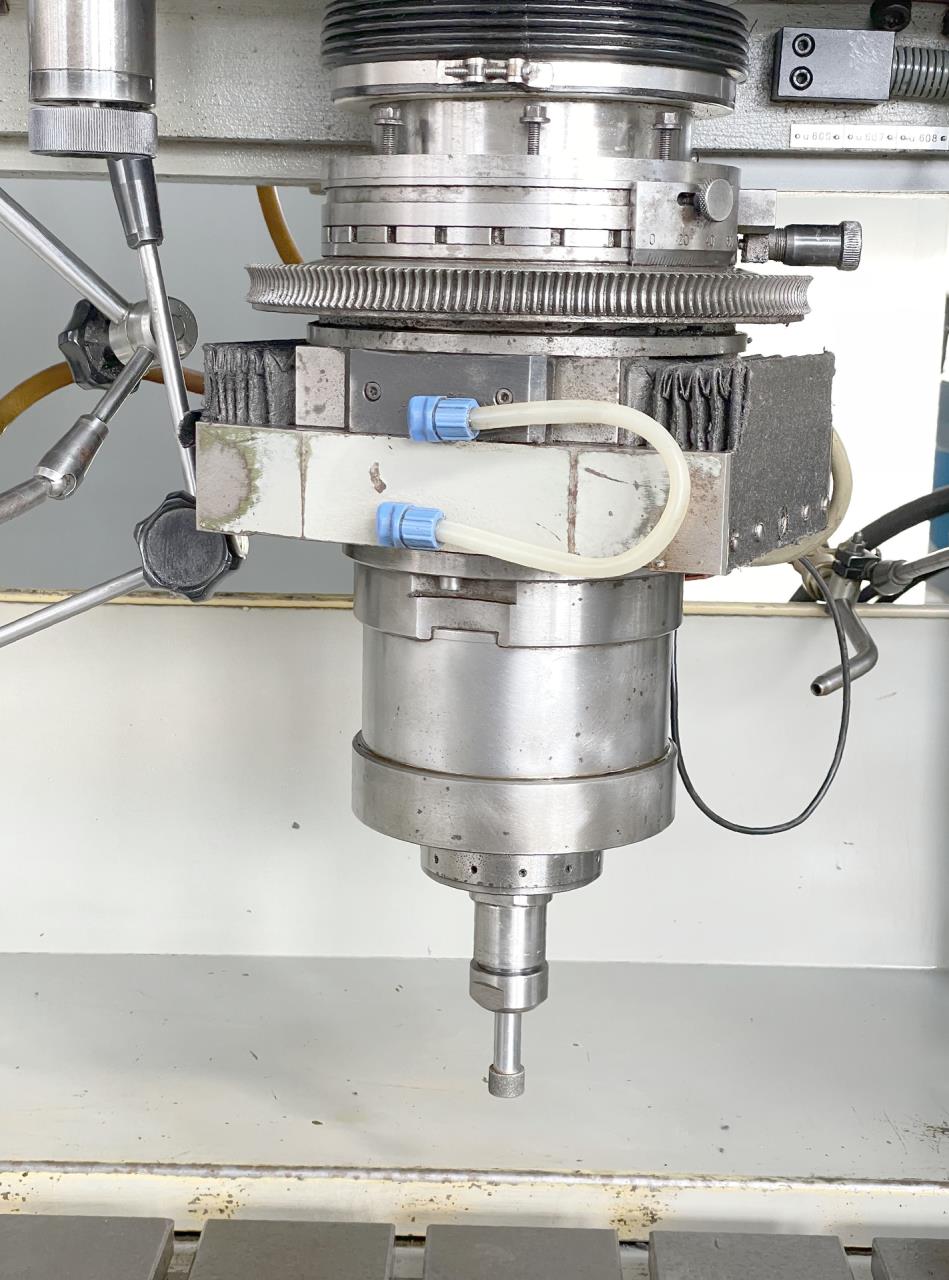

Possible grinding-spindle speeds:
stepless
from
4500 rpm
up to
80000 rpm
With air-turbine max.
160000 rpm
Voltage 50 Hz 3x
400 Volt
Total power required
8.5 kVA
Machine's weight about
6300 kg
Overall dimensions machine:
Length
3000 mm
Width
2500 mm
Height
2870 mm
Technical specifications and pictures without guarantee.
