Technical data
Time under power
68163 Hour
Operating time
54350 Hour
Working time
20640 Hour
Spindle run time
19232 Hour
Number of axis simultaneous
5
Table length
320 mm
Table width
320 mm
Longitudinal travel (X-axis)
600 mm
Transversal travel (y-axis)
450 mm
Vertical travel (z axis)
450 mm

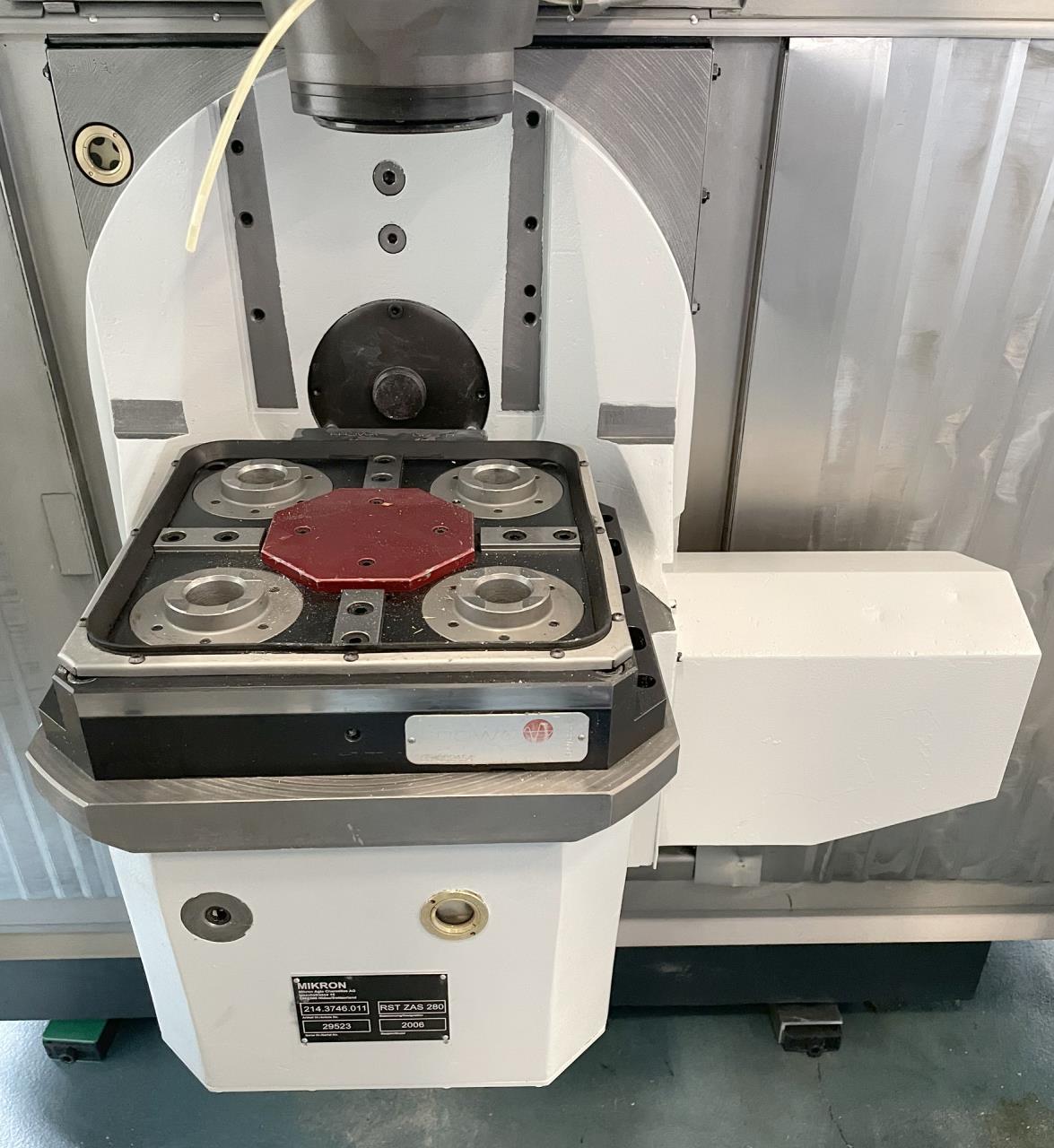

Table divisions (C)
n x 360 °
Milling head divisions (B)
-115/+30 °

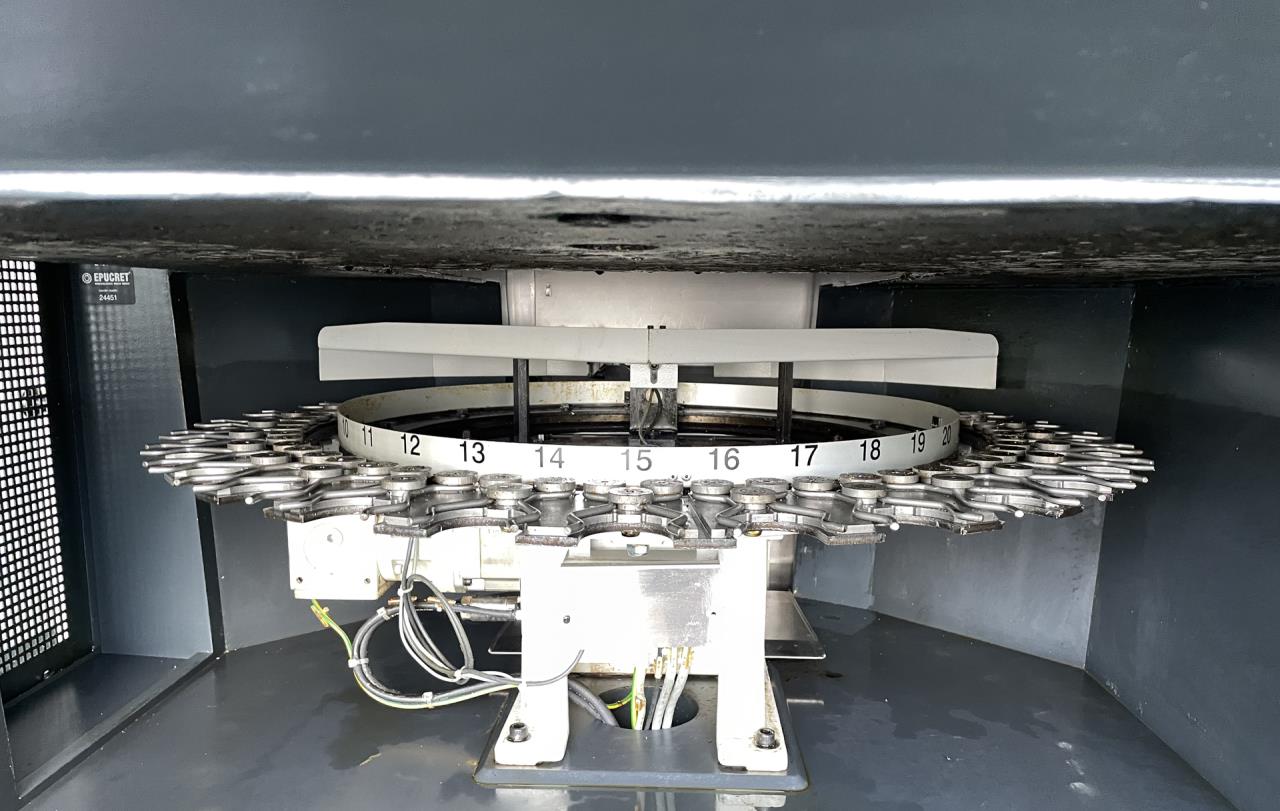

Tool changer:
Number of tools
30
Tool diameter max.
80 mm
Tool lenght
200 mm
Max. tool-weight
8 kg
Spindle nose:
HSK-A 63
Spindle speeds:
stepless
from
0 rpm
up to
20000 rpm
Feed range
15000 mm/min
Rapid traverse:
22 m/min
Voltage 50 Hz 3x
400 Volt
Spindle power
30 kW
Torque max.
91 Nm
Noise level
75 dB (A)
Machine's weight about
7700 kg
Overall dimensions machine:
Length
6820 mm
Width
4800 mm
Height
2540 (2810) mm
Various accessories:

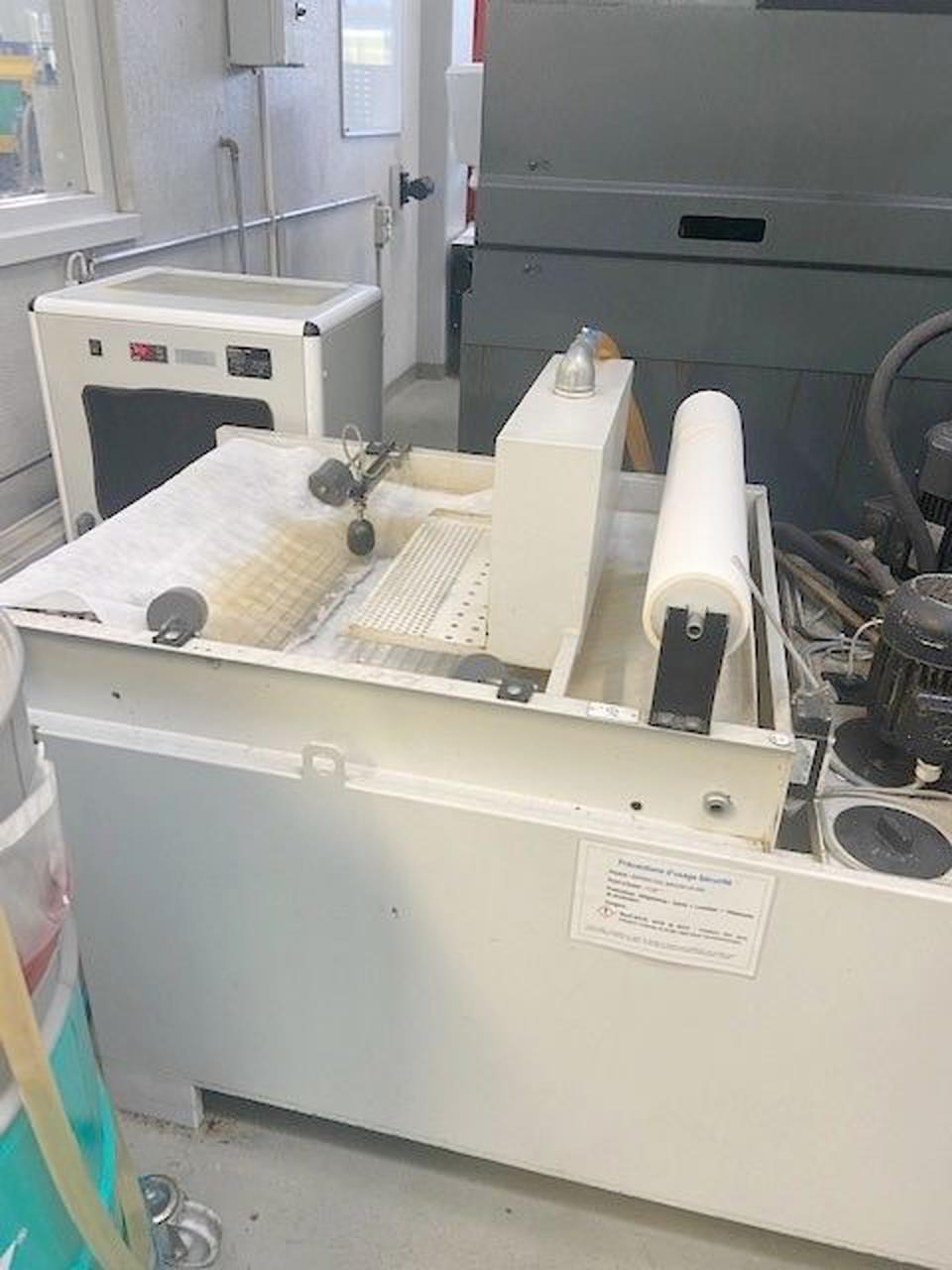

Paper filtration system
Water cooler

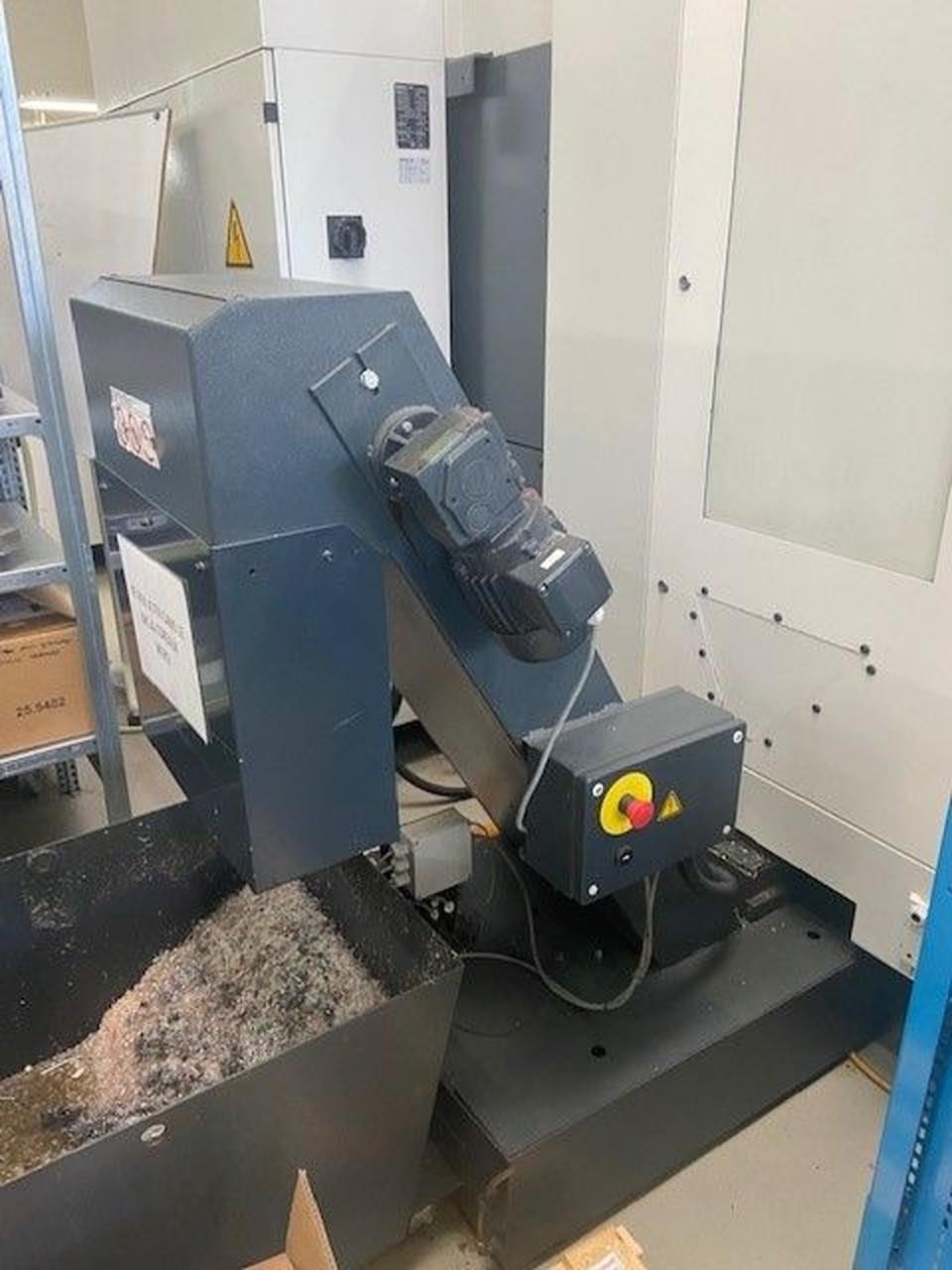

Chip conveyor
Type of table
EROWA UPC

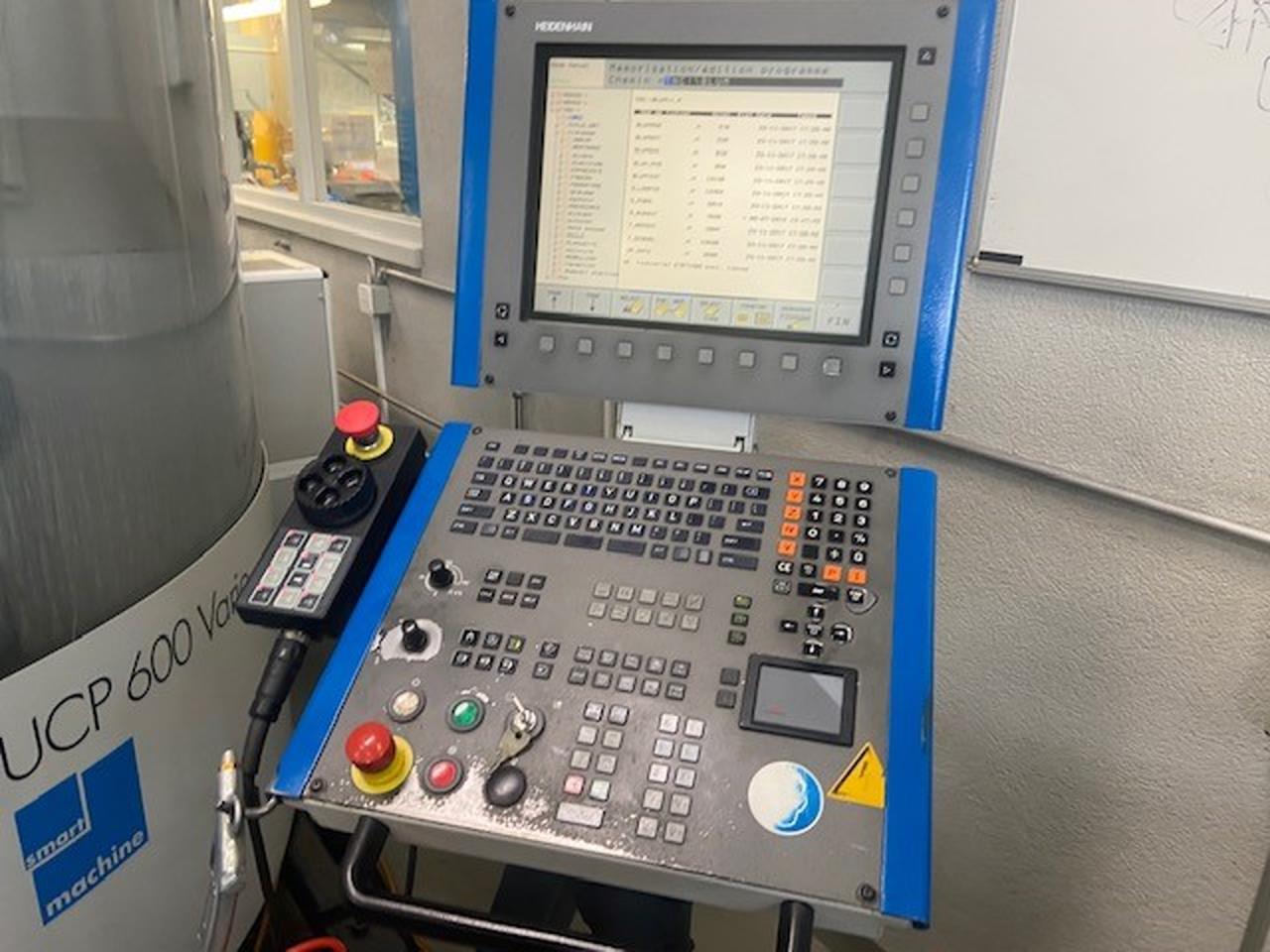

Handwheel electroinic
Lamp
Status light
Notes:
4+5 Axis revised
2023
Technical specifications and pictures without guarantee.
