Technical data

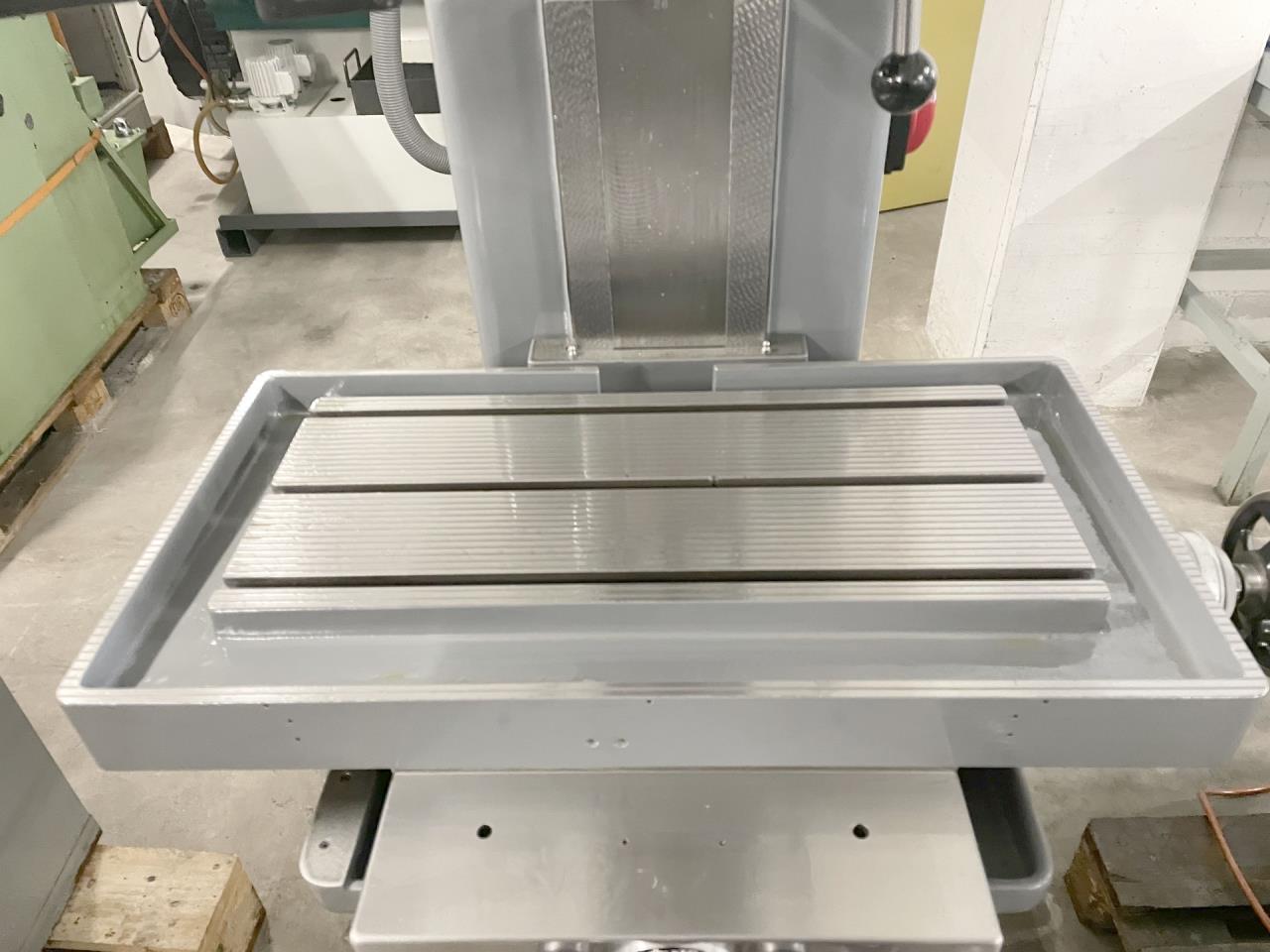

Table length
500 mm
Table width
490 mm
Clamping surface:
Length
355 mm
Width
315 mm
T-channel width
23 mm
Drill capacity in steel
22 mm
Drill capacity in cast-iron
24 mm
Taper in spindle: MT
3
Depth of throat
300 mm
Drill depth (spindle stroke)
120 mm
Spindle speeds:
stepless
from
250 rpm
up to
400 rpm
Feeds:
stepless
from
0.02 mm/r
up to
0.25 mm/r
Voltage 50 Hz 3x
380 Volt
Spindle motor
1.0 / 1.5 HP
Machine's weight about
990 kg
Overall dimensions machine:
Length
1330 mm
Width
900 mm
Height
1800 mm
Various accessories:

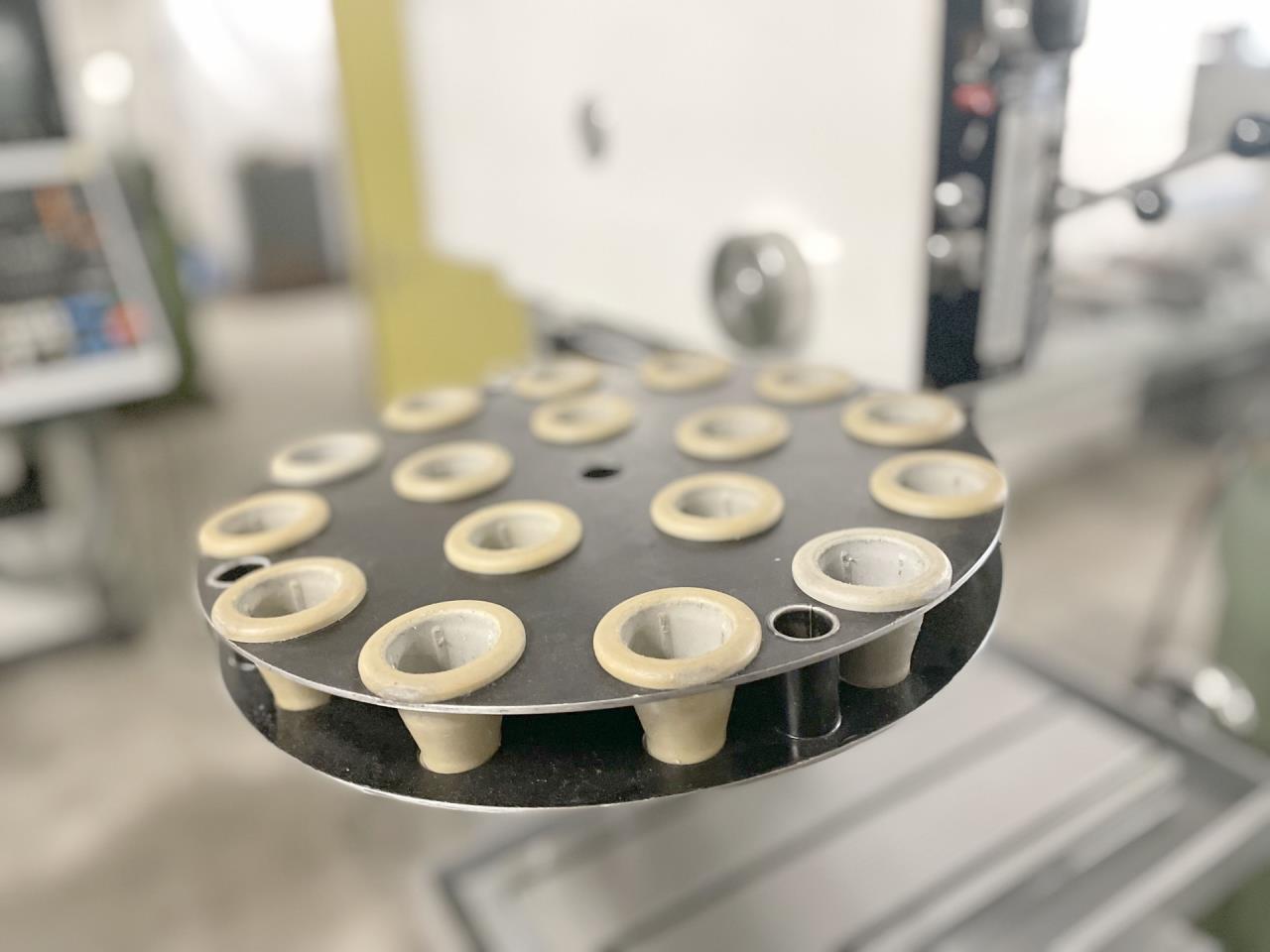

Tool storage
Technical specifications and pictures without guarantee.
