Technical data
Max. internal grinding diameter
50 mm
Grinding depth
80 mm
Centre height
200 mm
Workpiece spindle speeds:
stepless
from
350 rpm
up to
1200 rpm
Max. angle
120 °
Spindle hole
25 mm
from
18000 rpm
Grinding table travel:
min.
2 mm
max
300 mm
Table speeds:
from
0.10 m/min
up to
10.00 m/min
Voltage 50 Hz 3x
380 Volt

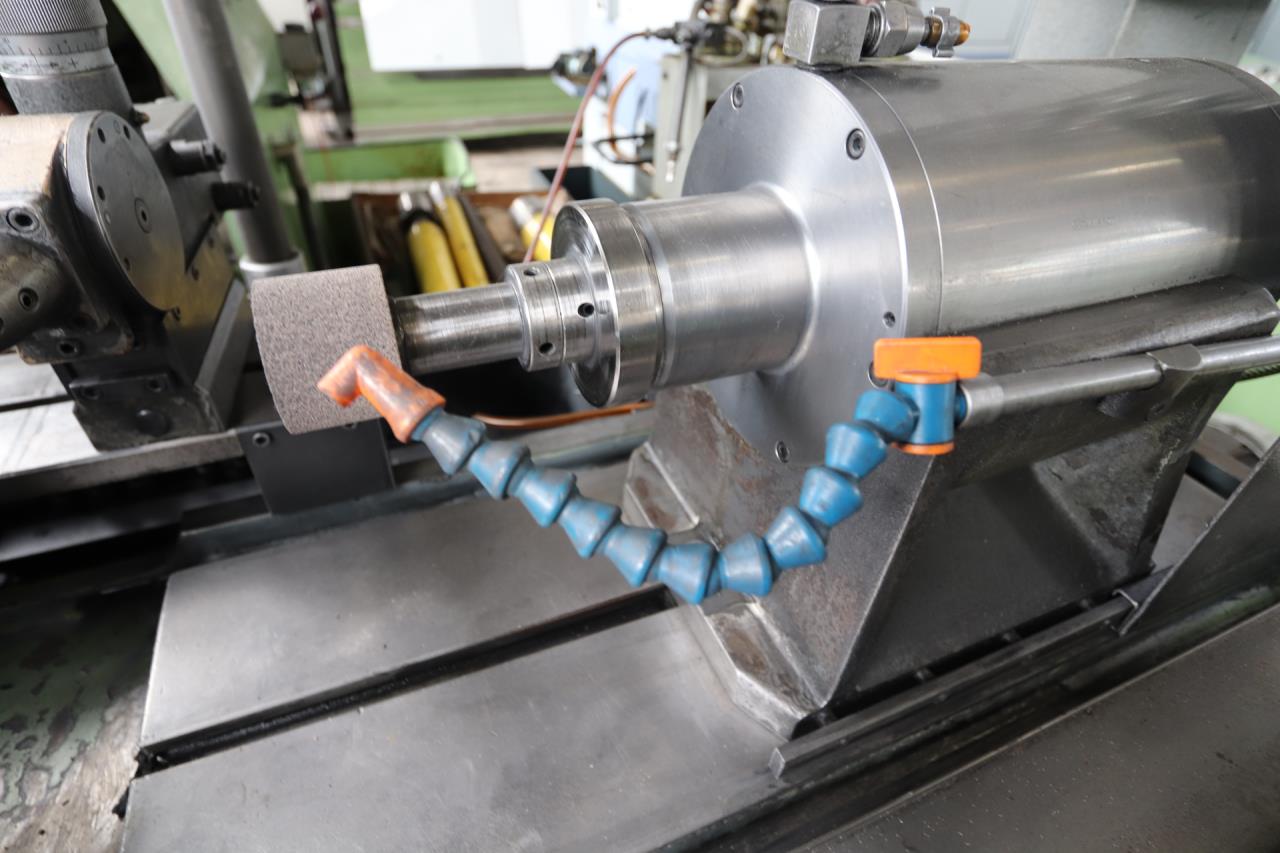

Drive for internal grinding spindle
15.0 kW
Machine's weight about
2200 kg
Overall dimensions machine:
Length
1800 mm
Width
1500 mm
Height
1600 mm
Various accessories:
Redressing device

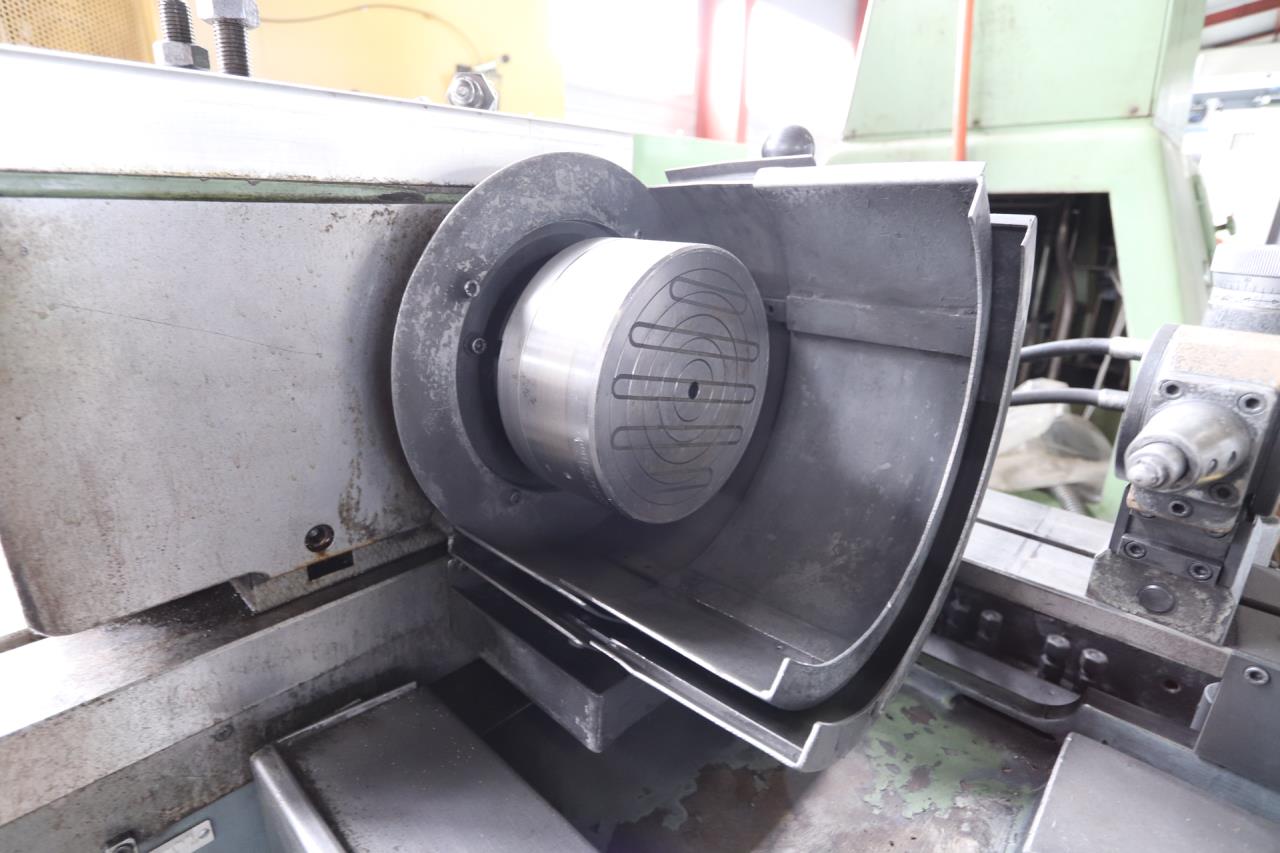

Macnetic chuck diameter
200 mm
Coolant system
Lamp
Lathe chuck protection
Technical specifications and pictures without guarantee.
