Technical data
Number of axis simultaneous
3
Table length
1321 mm
Table width
457 mm
Number of T-channels
5
Distance of the T-slots
80 mm
T-channel width
16 mm
Table load max.
800 kg
Longitudinal travel (X-axis)
1270 mm
Transversal travel (y-axis)
508 mm
Vertical travel (z axis)
635 mm
Tool changer:
Number of tools
30
Tool diameter max.
64 mm
Diameter with free adjacent pockets
127 mm
Tool lenght
330 mm
Max. tool-weight
5.4 kg
Time of tool changing
1.8 sec
Average chip-to-chip time
2.4 sec
Spindle nose: BT
40
Distance spindle nose to table
742 mm
Spindle speeds:
stepless
from
0 rpm
up to
12000 rpm
Rapid traverse:
35.6 m/min
Voltage 50 Hz 3x
400 Volt
Machine's weight about
6200 kg
Overall dimensions machine:
Length
3300 mm
Width
2330 mm
Height
2570 mm
Various accessories:

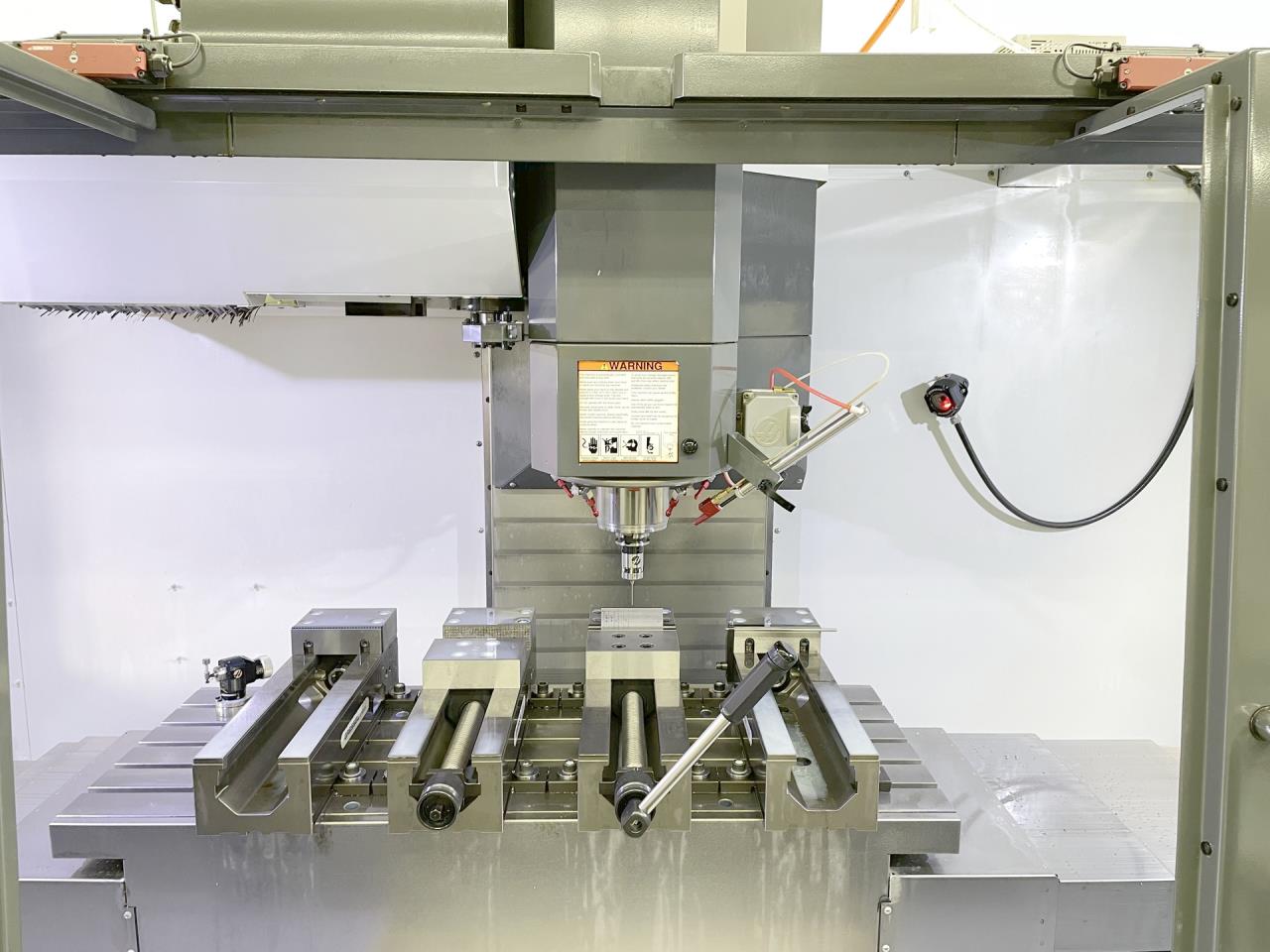

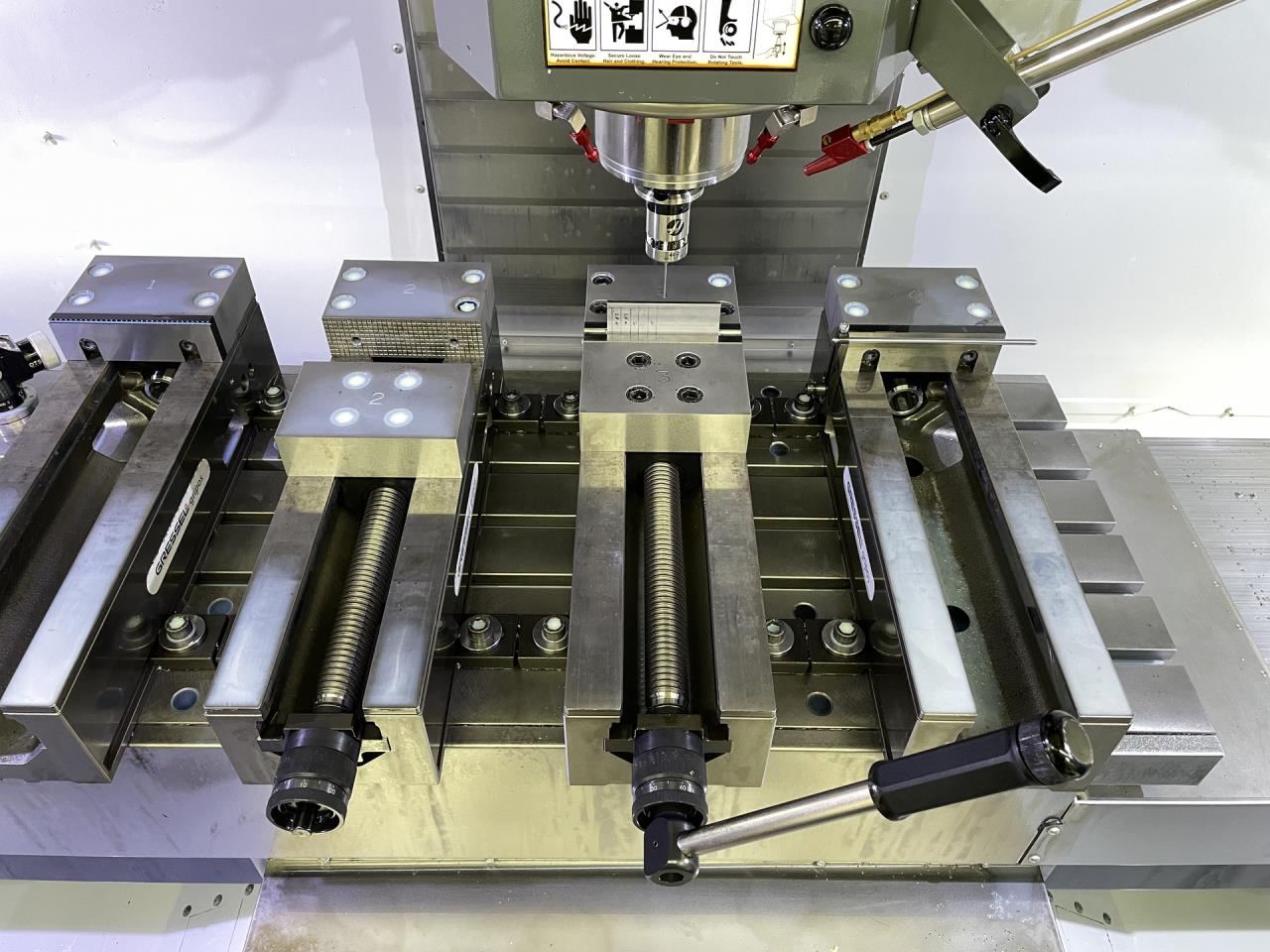

Vice
(4x)

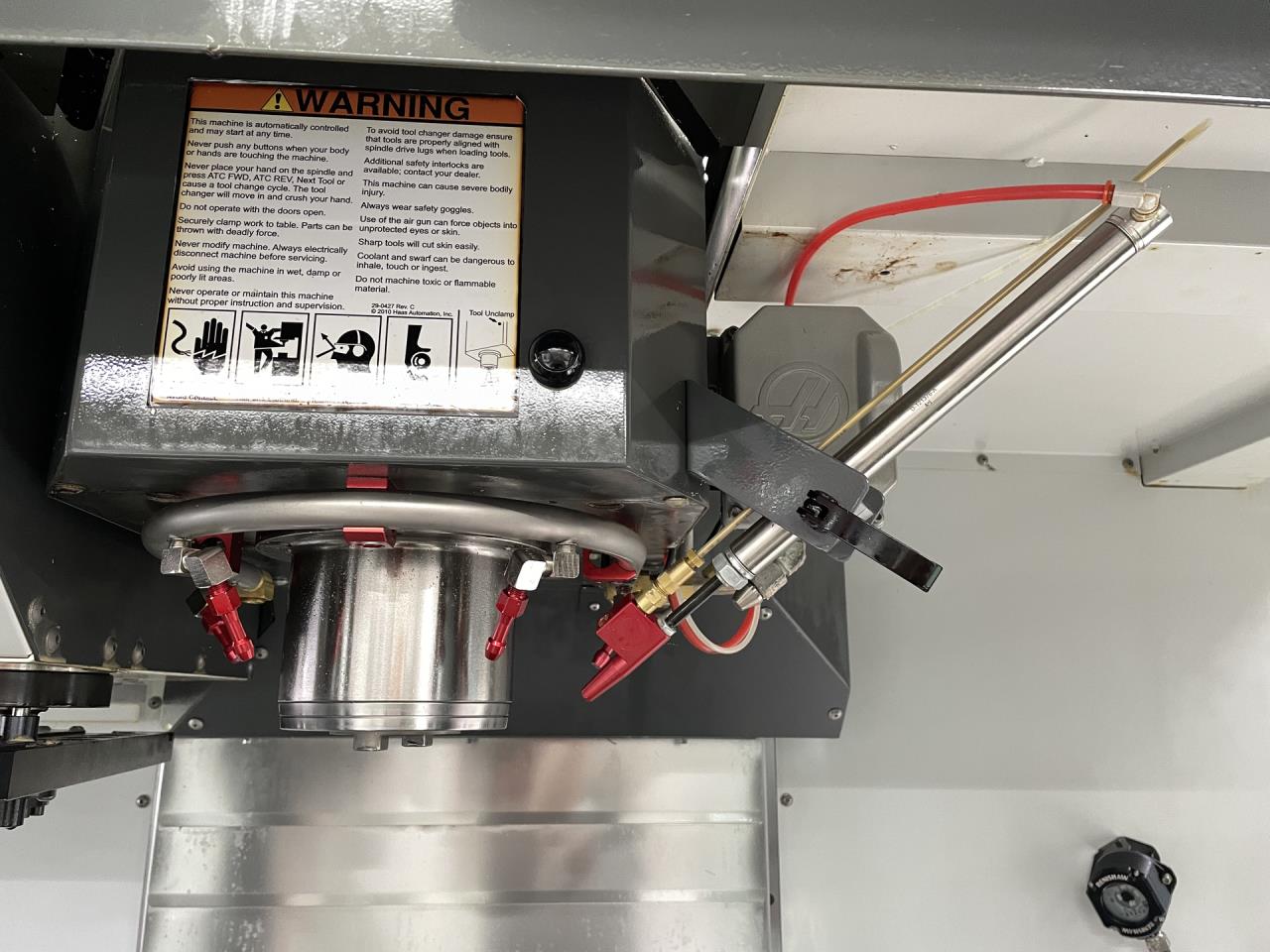

Programmable and rotatable coolant nozzle
Coolant system
Additional coolant filter
Coolant through spindle (cts)
21 bar

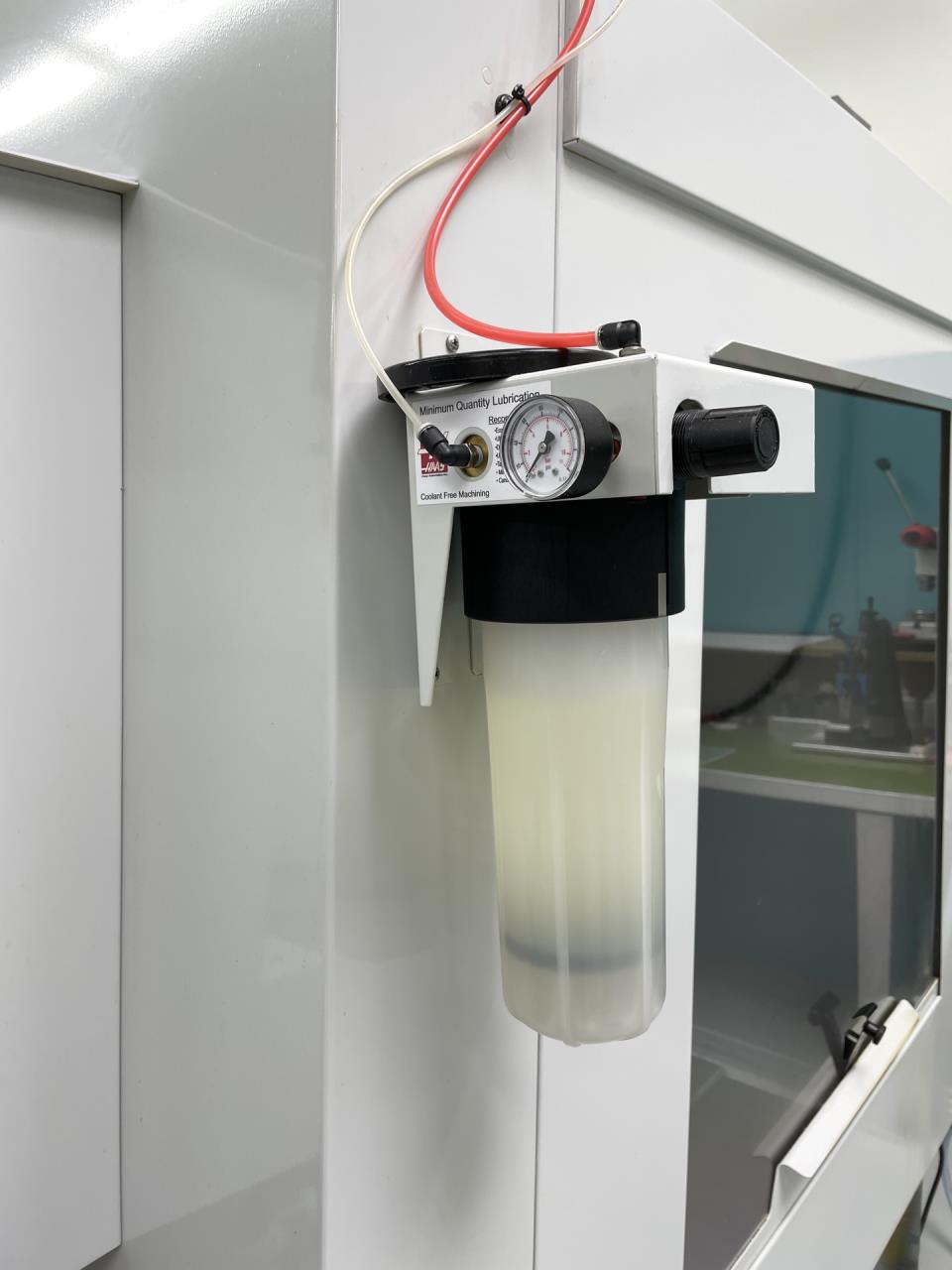

Oil mist lubrication unit
Touch Probe Renishaw

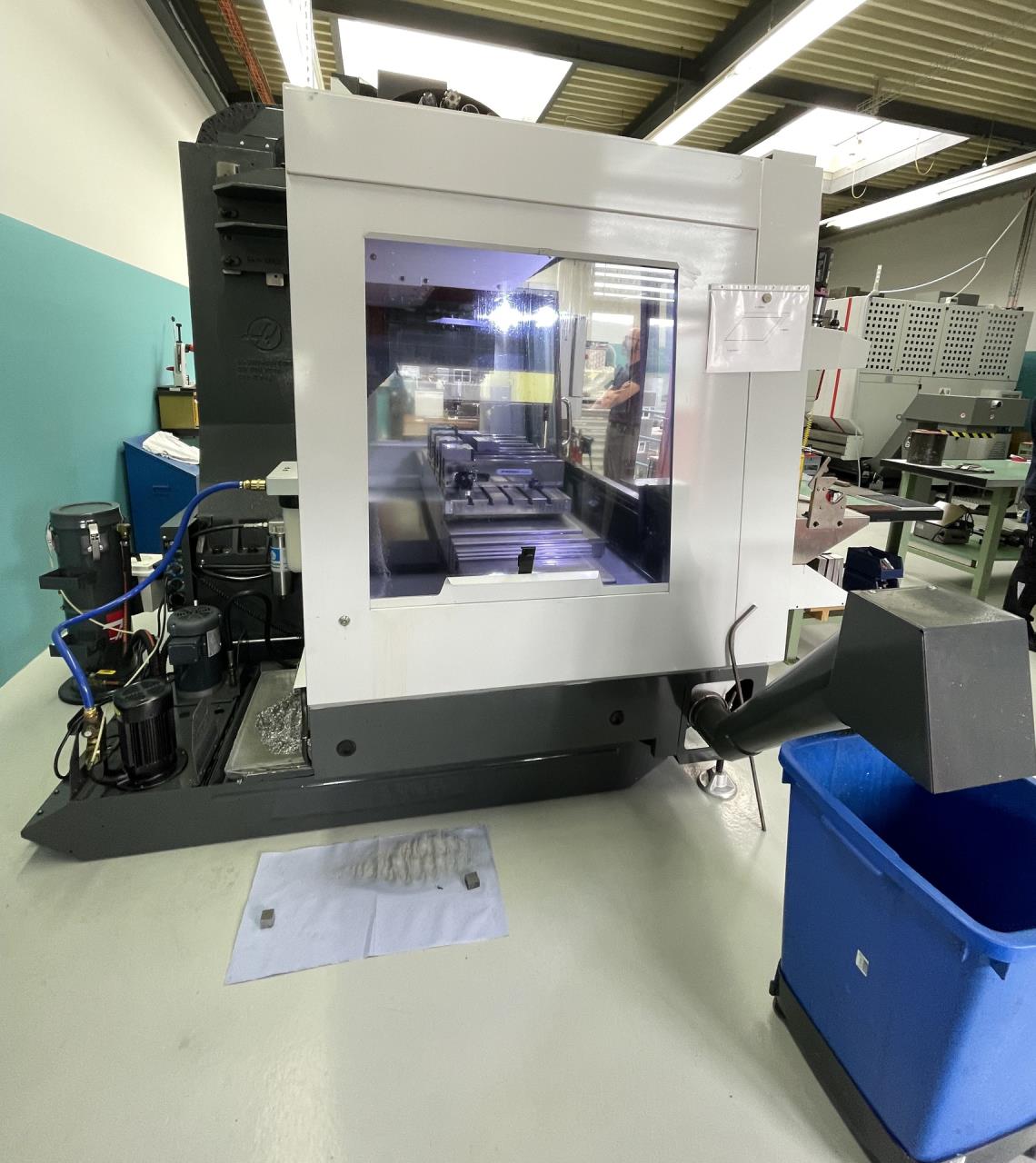

Chip conveyor

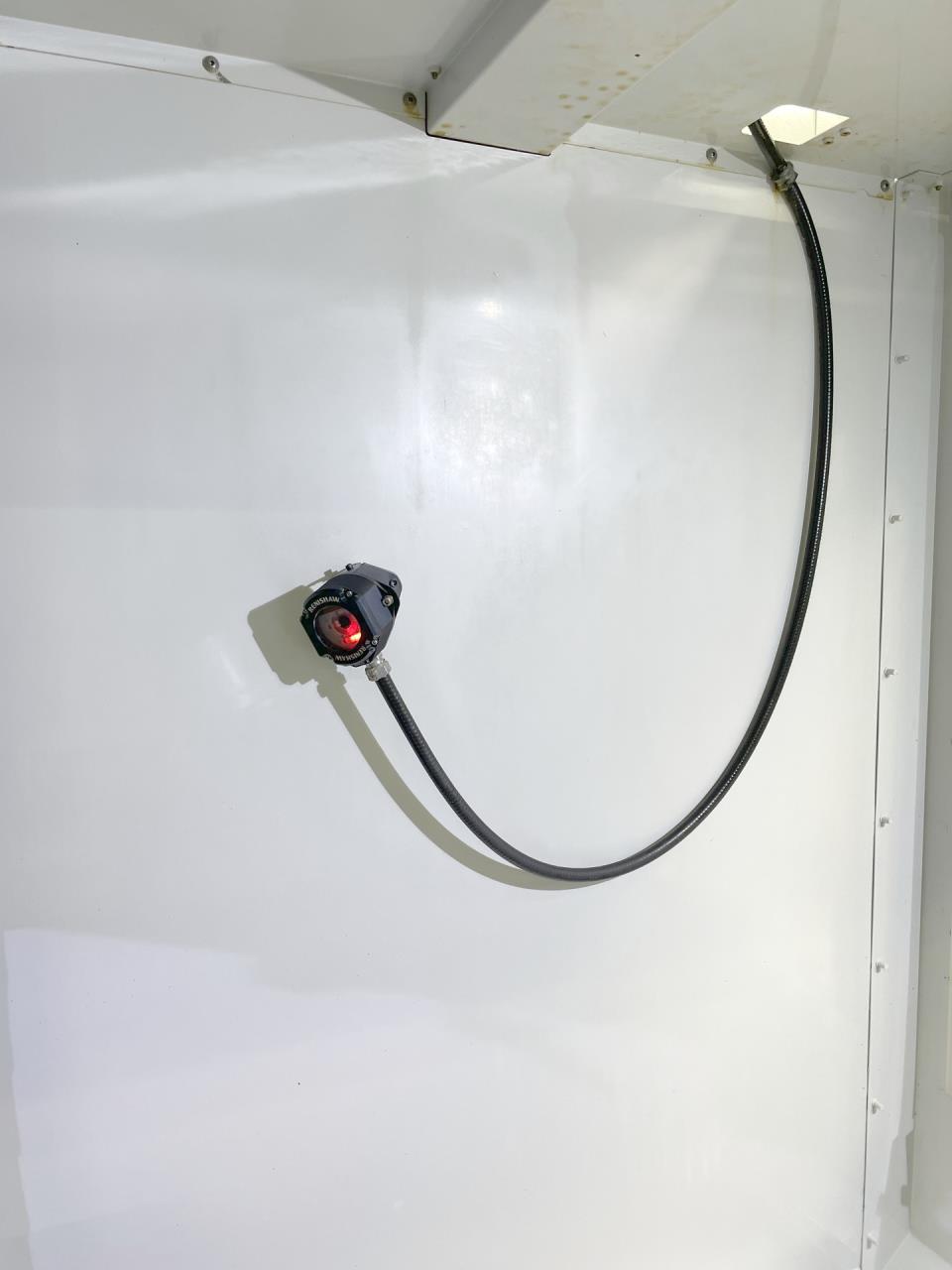

Lamp
Synchronized tapping
Technical specifications and pictures without guarantee.
