Technical data
Min. internal grinding diameter
5 mm
Max. internal grinding diameter
200 mm
Grinding depth
250 mm
Centre height
180 mm
Max. work piece diameter
340 mm
Max.workpiece length + steady
1000 mm
Workpiece spindle speeds:
number (steps)
6
from
140 rpm
up to
1120 rpm
Max. angle
30 °
Spindle hole
50 mm
Grinding table travel:
min.
3 mm
max
600 mm
Table speeds:
stepless
from
0.01 m/min
up to
10 m/min
Voltage 50 Hz 3x
380 Volt
Total power required
15 kW
Machine's weight about
3000 kg
Overall dimensions machine:
Length
2400 mm
Width
1200 mm
Height
1400 mm
Various accessories:
Redressing device

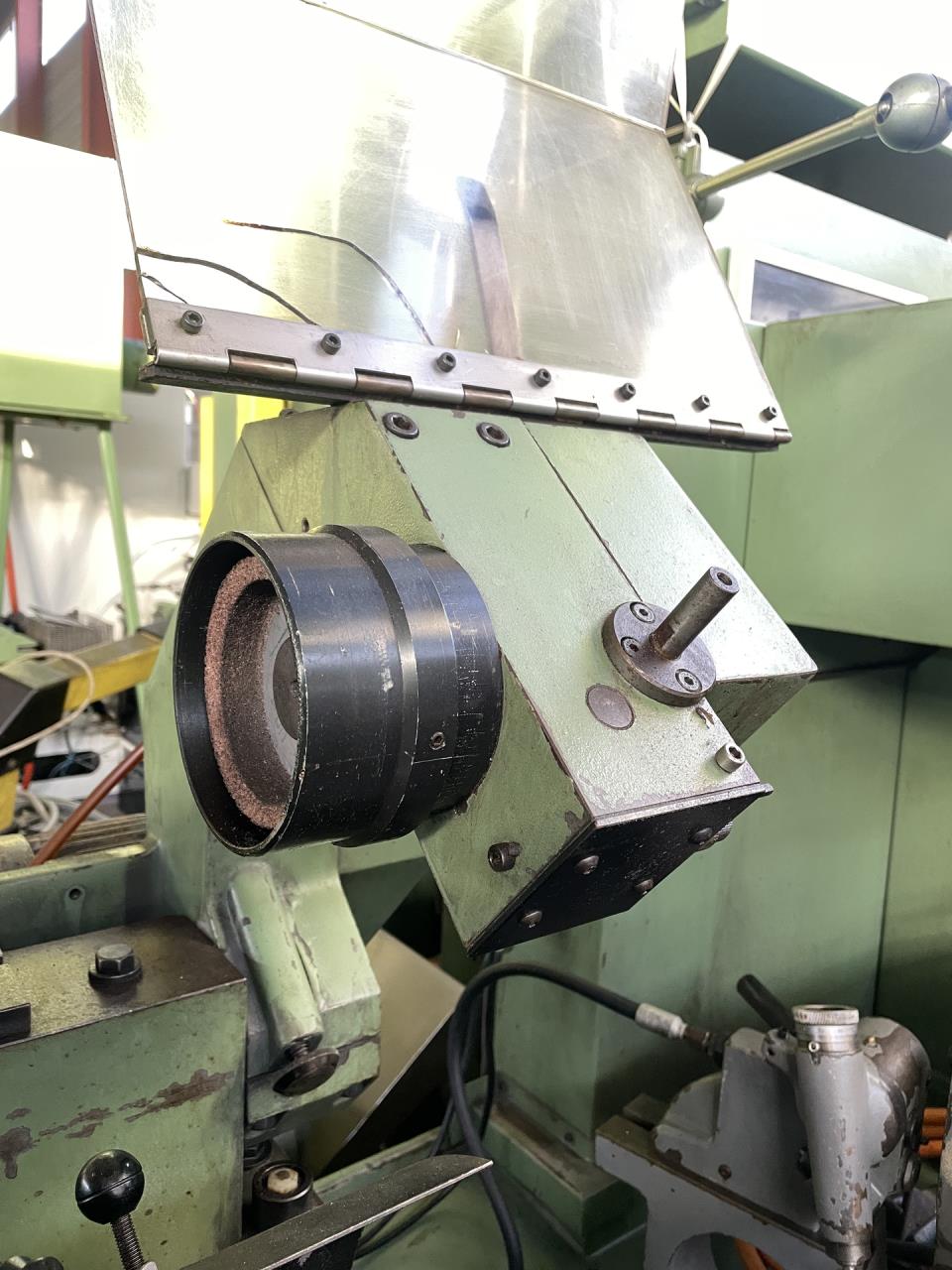

Frontal grinding device

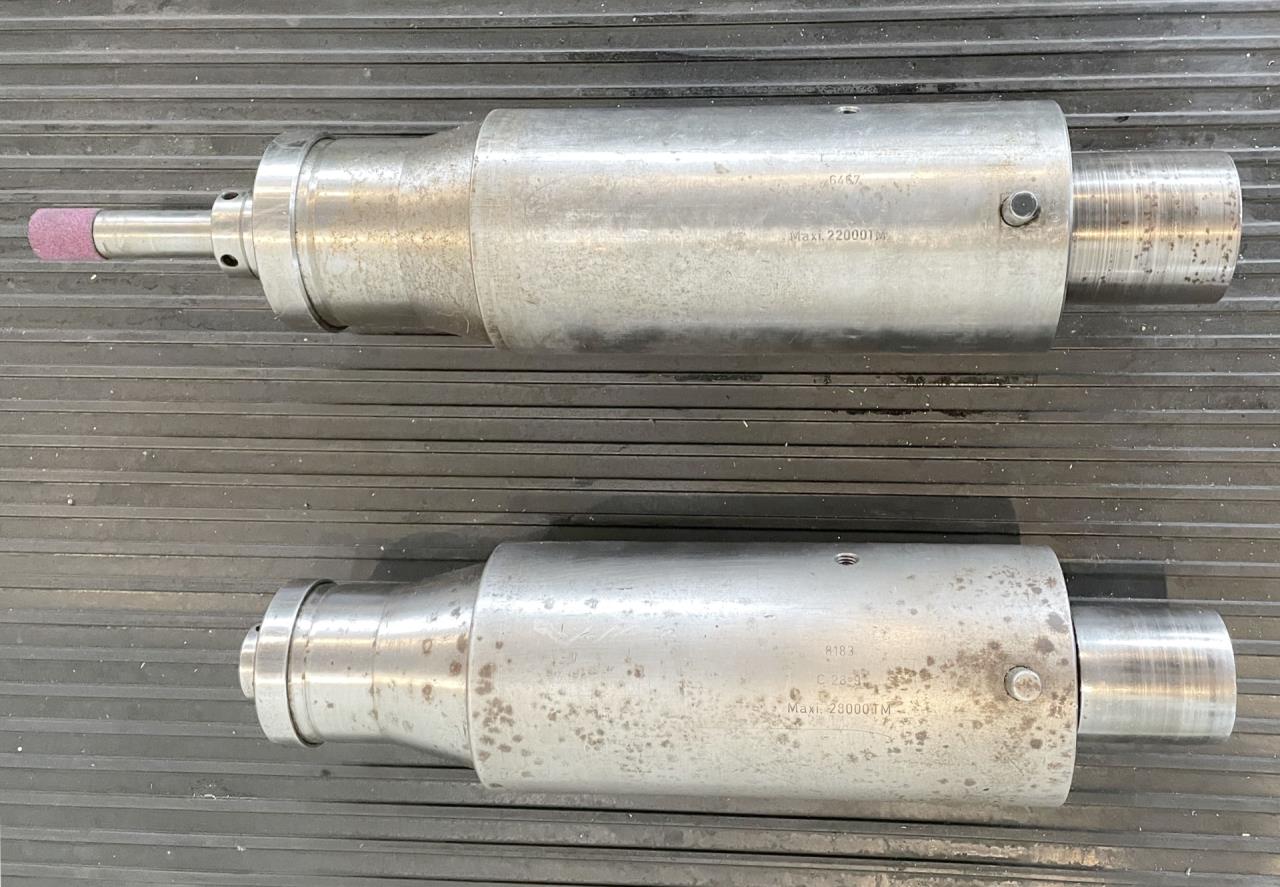

Internal grinding spindle:
numbers
2
max. speed
22000 rpm
max. speed
28000 rpm

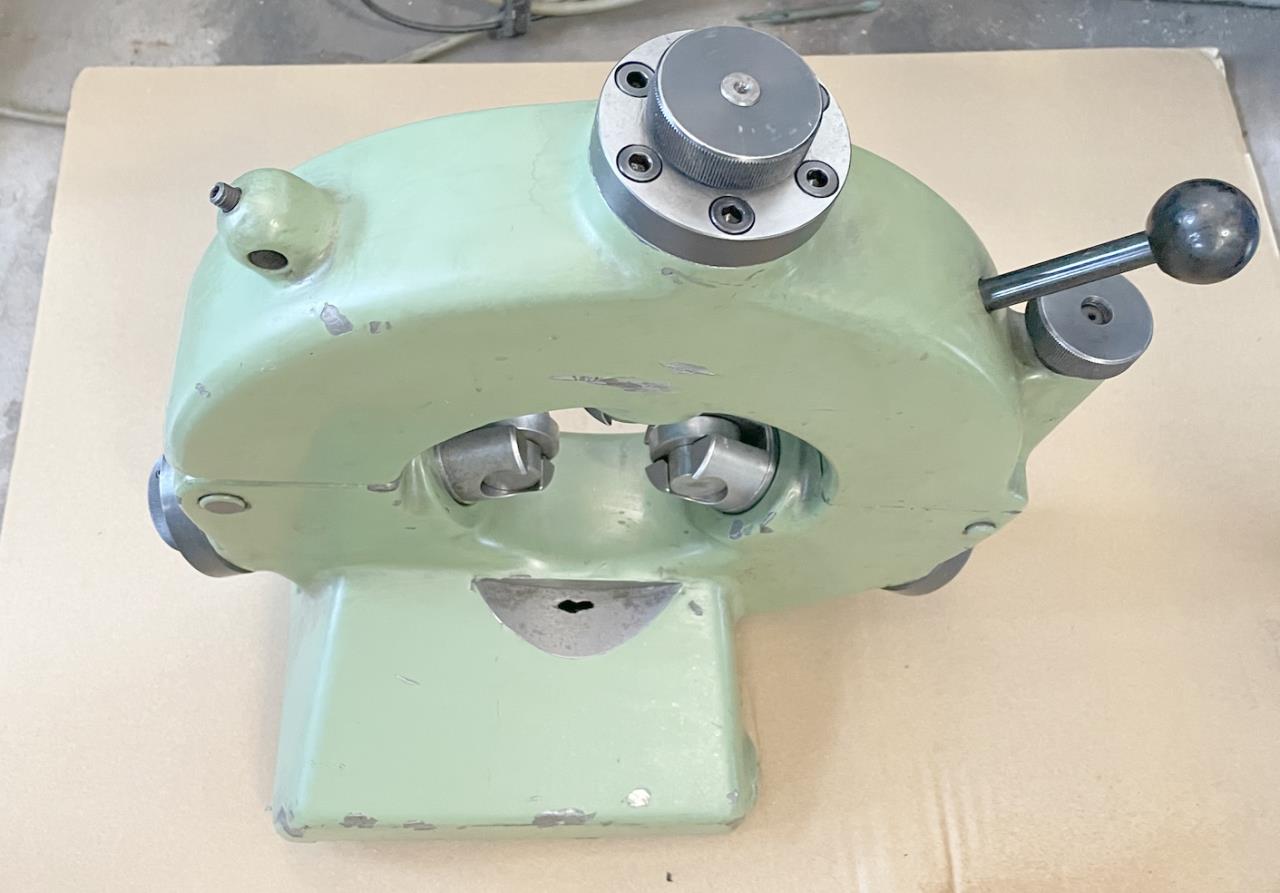

Steady
Lamp
Protective cover
Technical specifications and pictures without guarantee.
