Technical data
semi-automatic
Min. drill capacity
1 mm
Max. drill capacity
32 mm
Spitzwinkel min.
60 °
max.
180 °
Diameter of grinding wheel
150 mm
Width of the grinding wheel
40 mm
Drilling cap. of grind.wheel
50 mm
Grinding wheel speeds:
from
2800 rpm
Voltage 50 Hz 3x
380 Volt
Power
1 HP
Machine's weight about
450 kg
Overall dimensions machine:
Length
800 mm
Width
750 mm
Height
1300 mm
Various accessories:
Wet-grinding attachment
Tool cabinet
Disc wheel trueing attachment

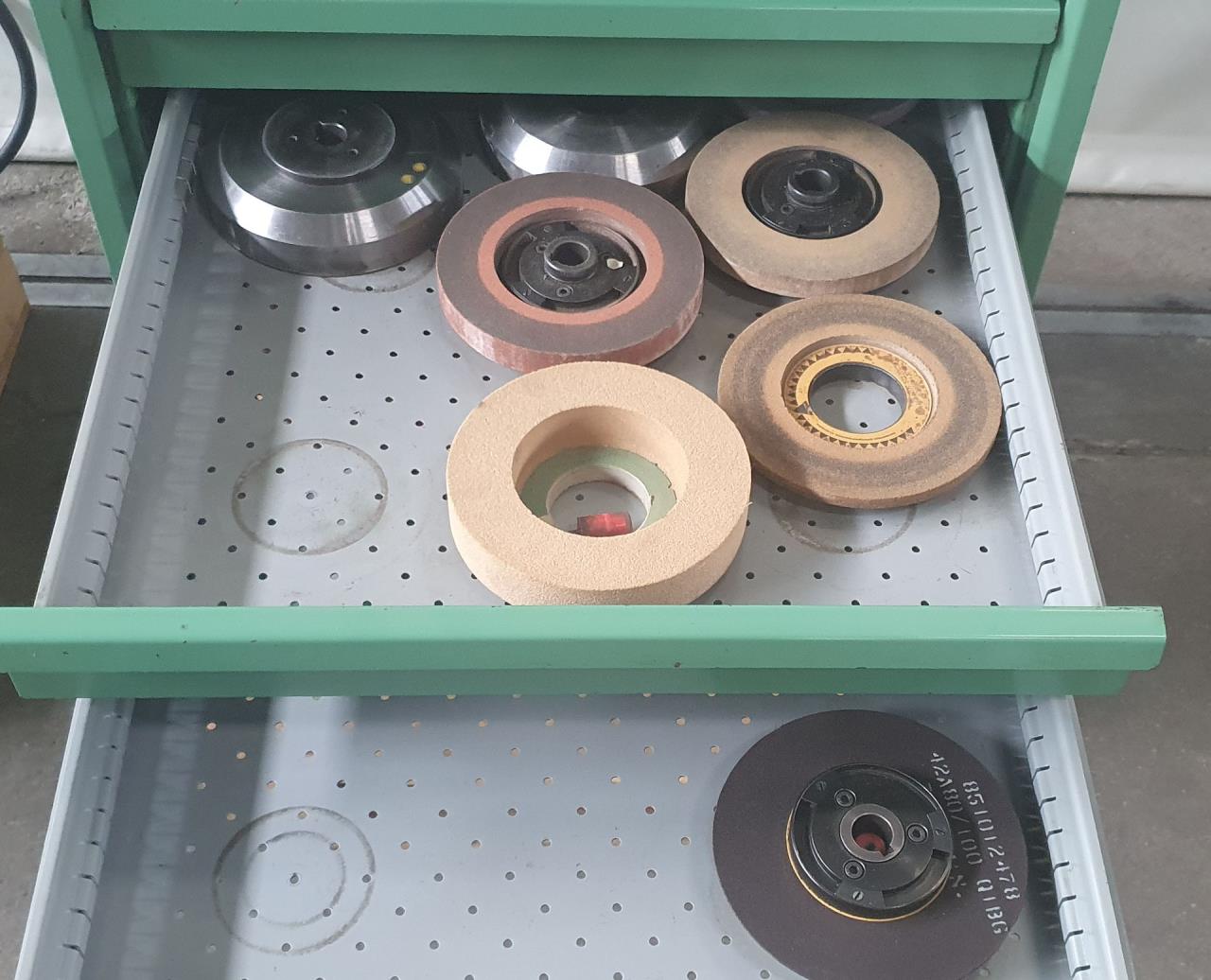

Set of grinding wheels

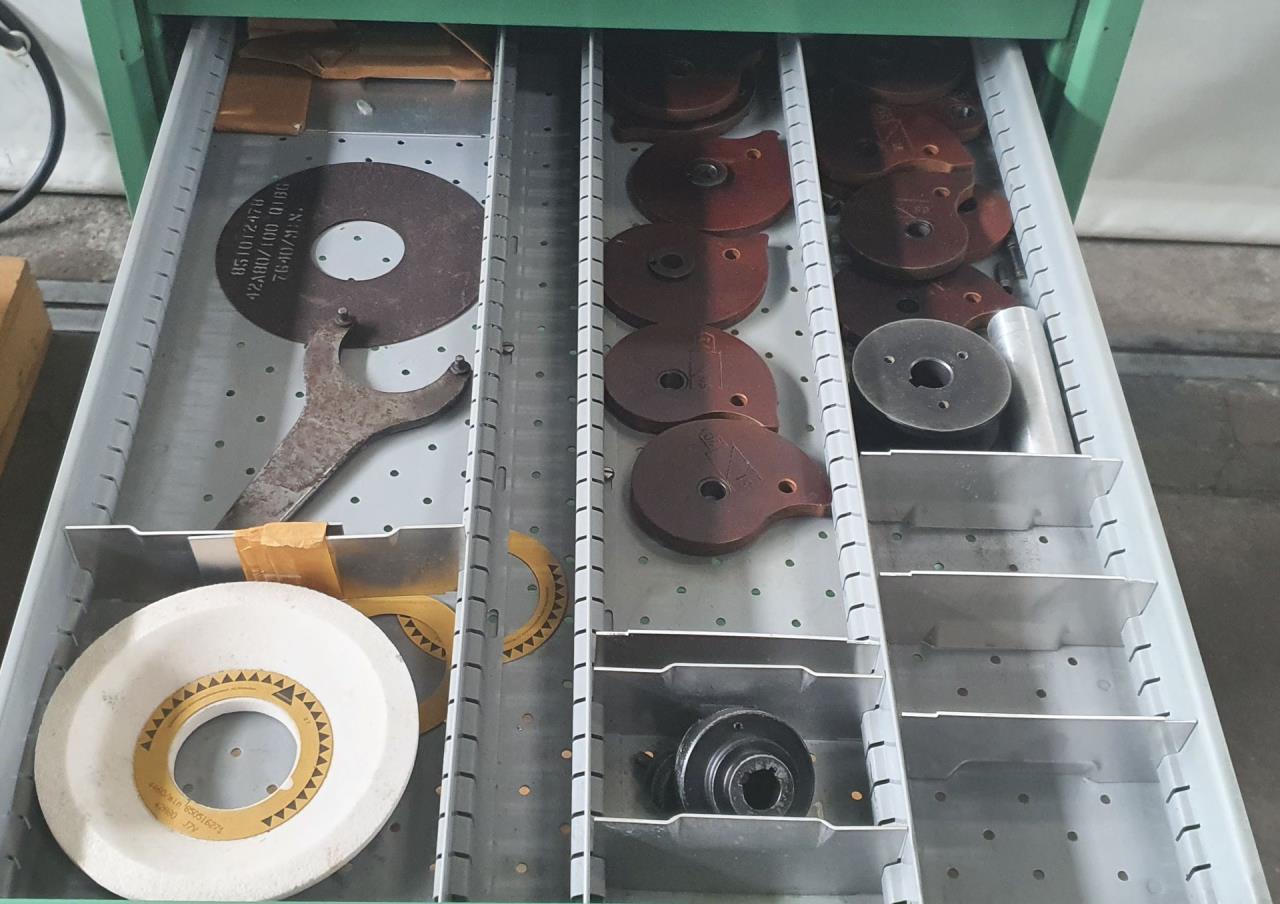

Set of flanges

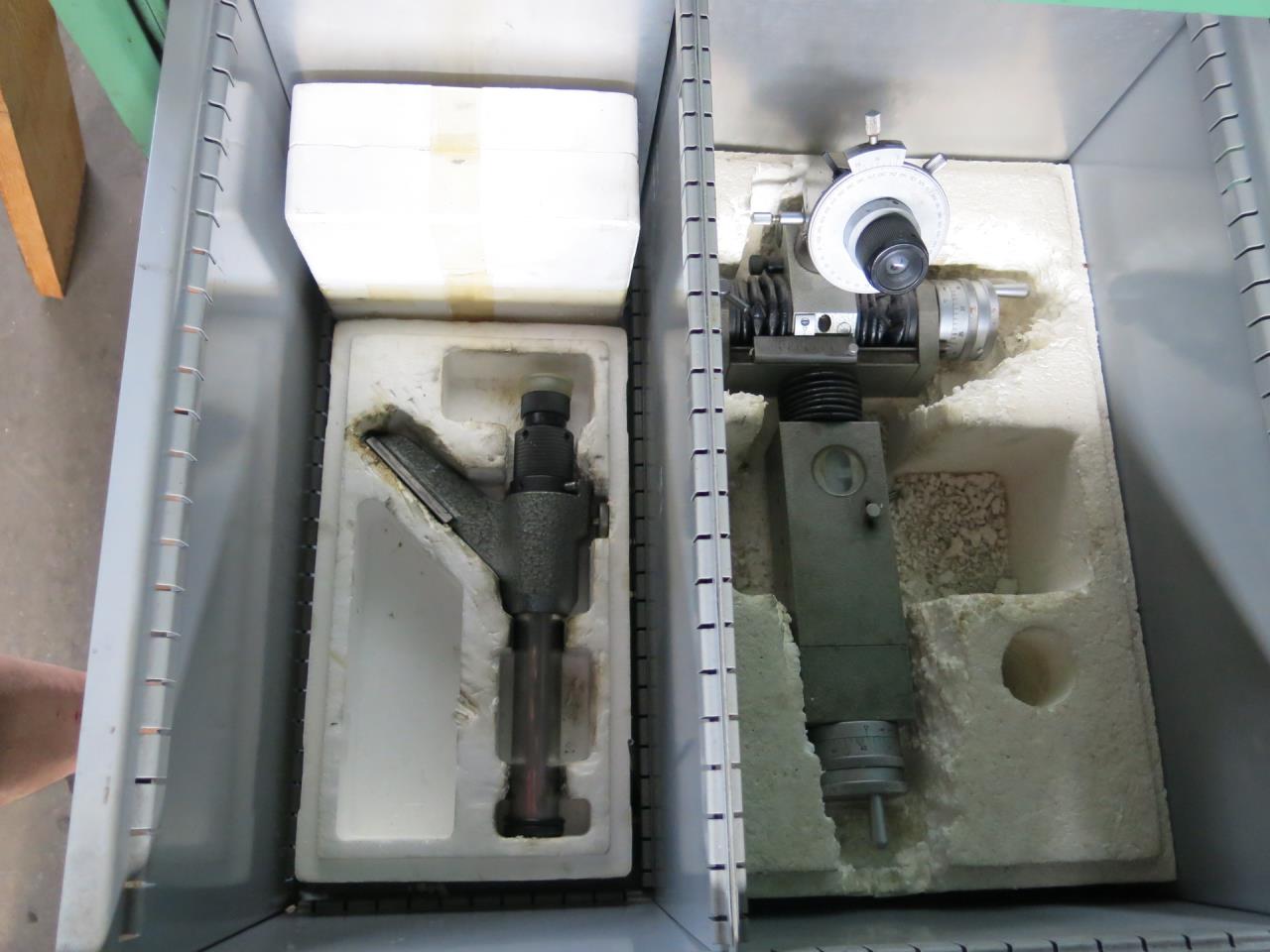

Adjustment and control microscope
Length and angle measuring device

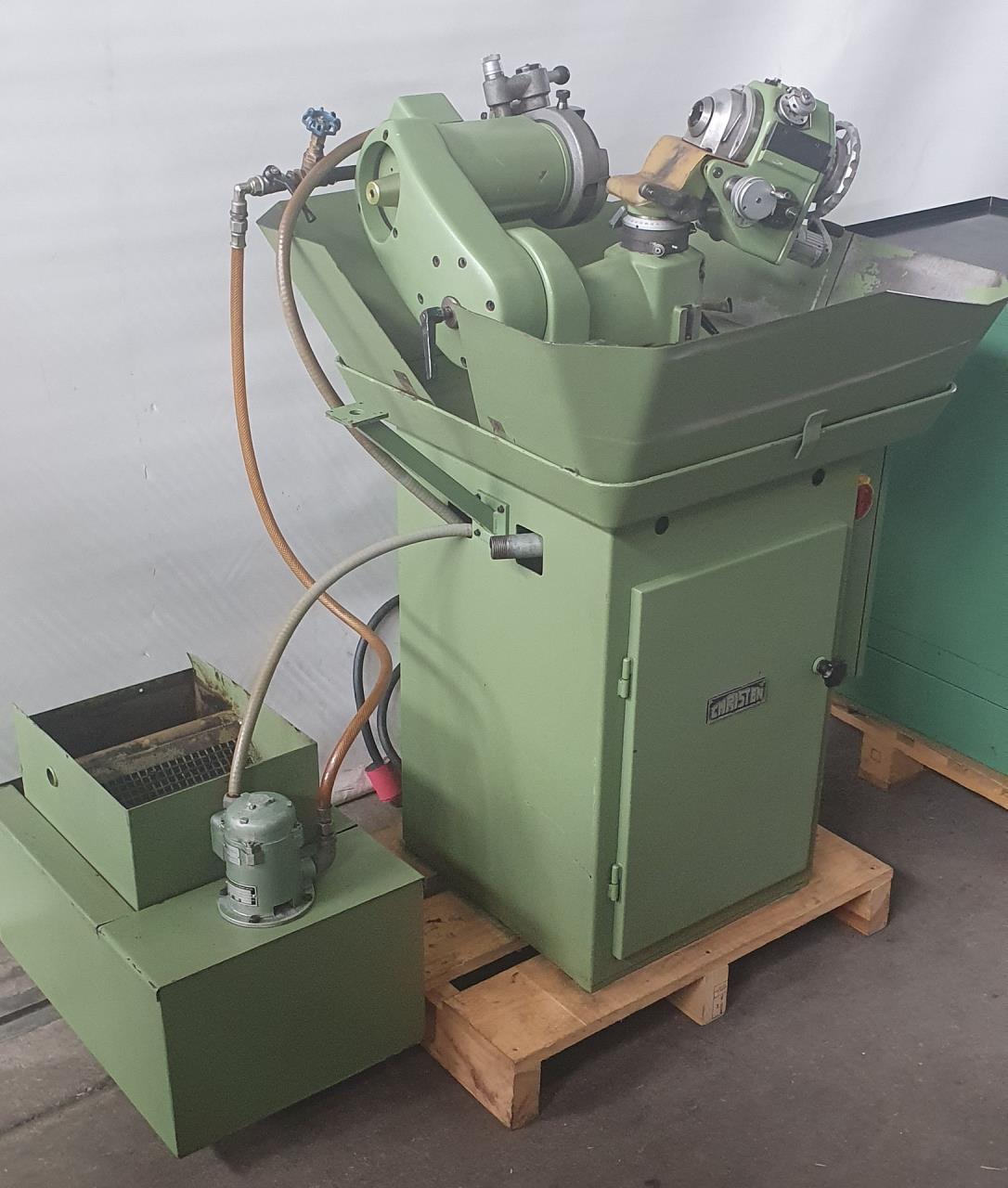

Coolant system
Technical specifications and pictures without guarantee.
