Technical data
Drill capacity in steel
6 mm

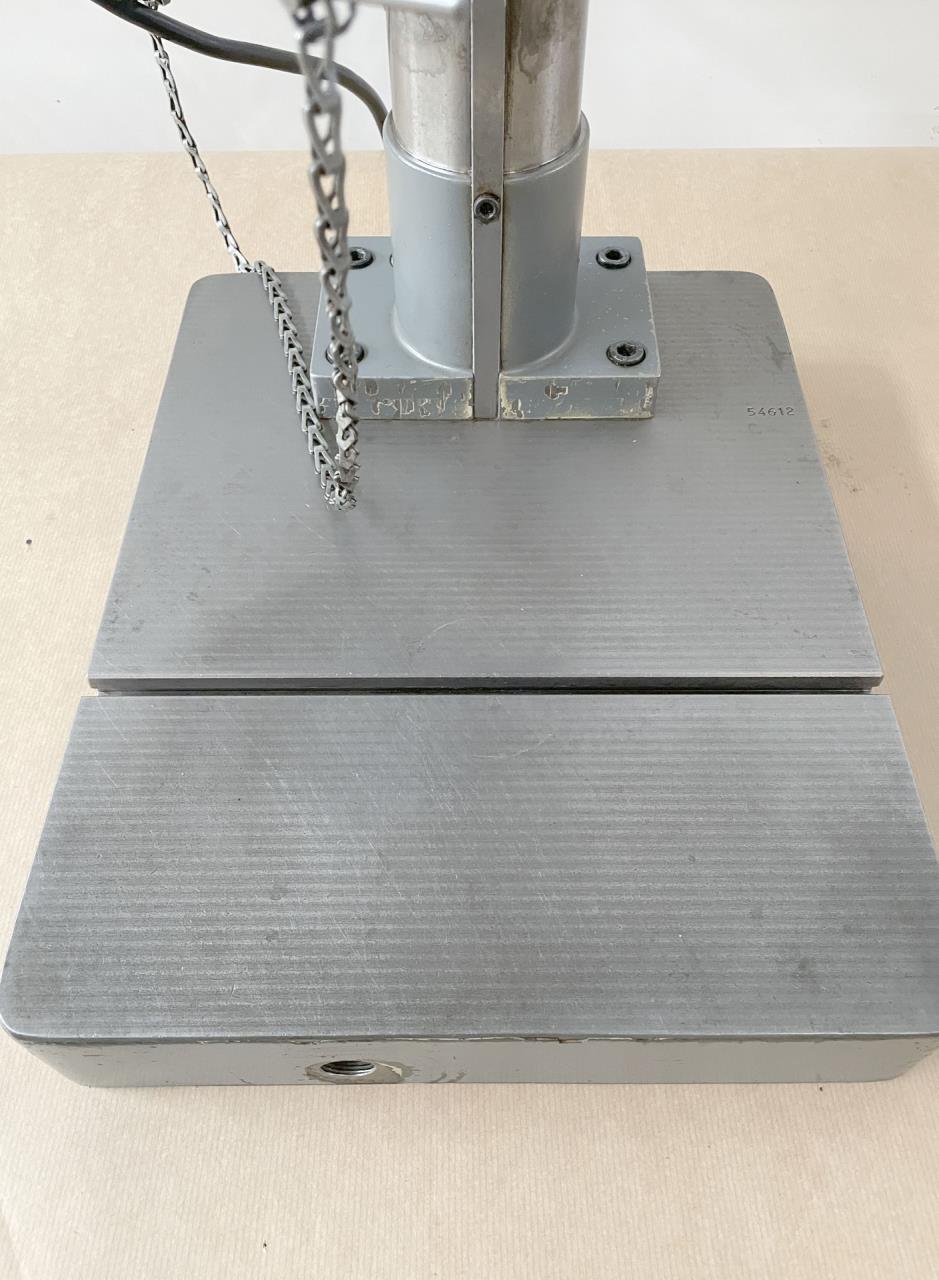

Table length
310 mm
Table width
280 mm
T-channel width
8 mm
Depth of throat
150 mm
Spindle stroke
50 mm
Spindle speeds:
number (steps)
8
from
160 rpm
up to
6000 rpm
Voltage 50 Hz 3x
120 Volt
Power
0.3 HP
Machine's weight about
50 kg
Overall dimensions machine:
Length
600 mm
Width
350 mm
Height
650 mm
Various accessories:

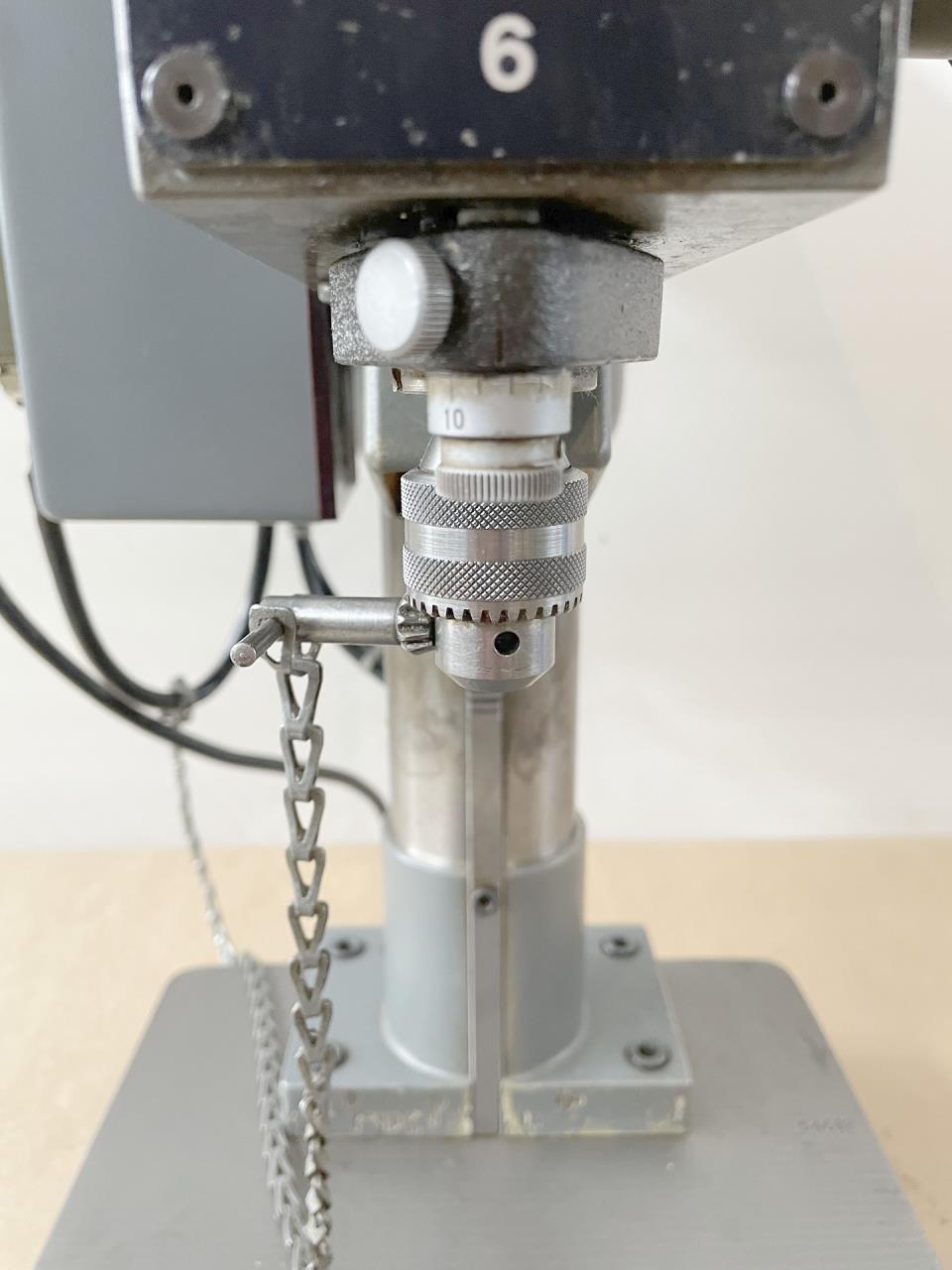

Drill chuck
0 - 6.5 mm
Thread cutting device
Technical specifications and pictures without guarantee.
