Technical data

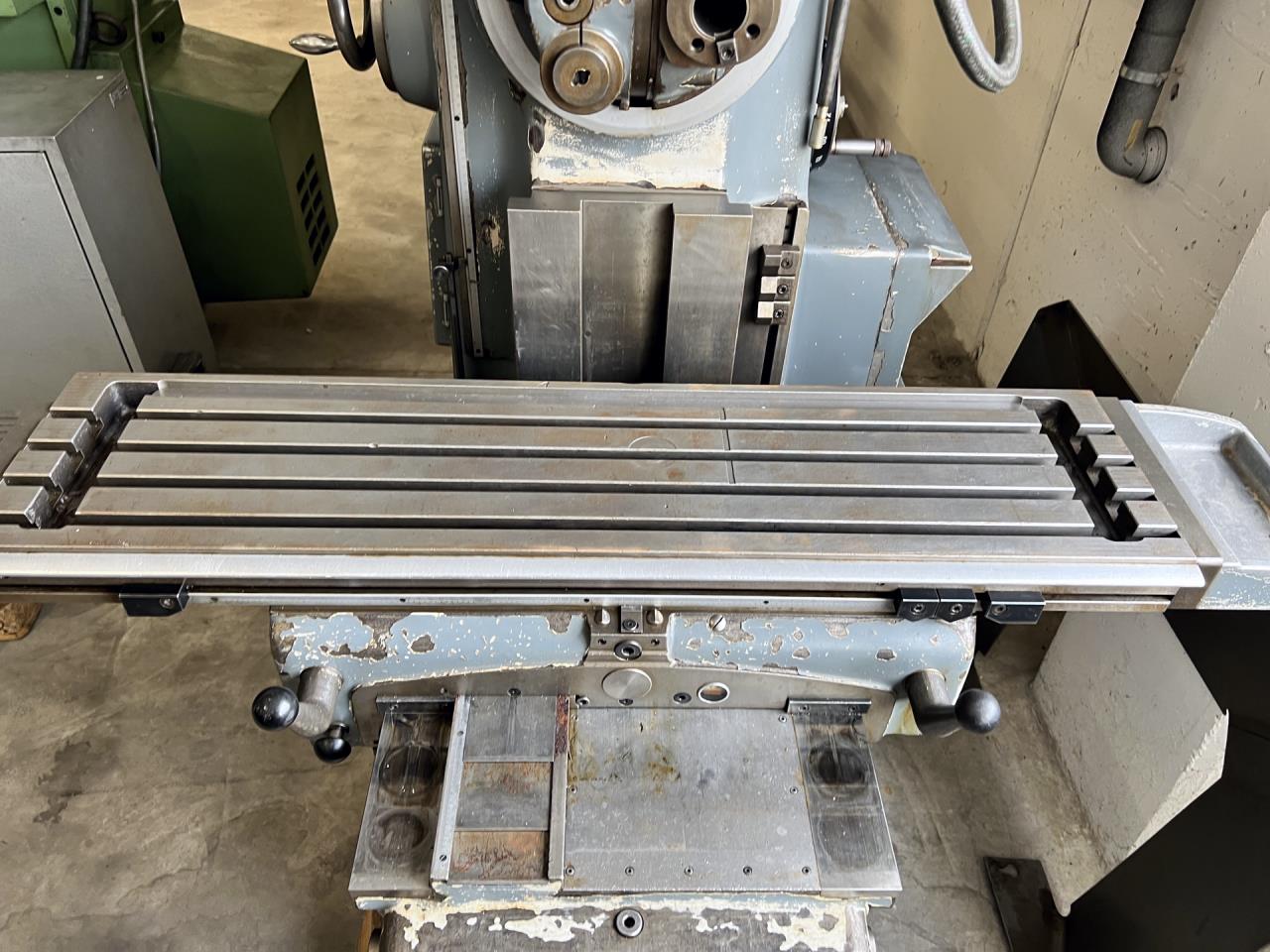

Table length
1100 mm
Table width
255 mm
Number of T-channels
5
T-channel width
14h7 mm
Distance of the T-slots
50 mm
Longitudinal travel (X-axis)
700 mm
Transversal travel (y axis)
250 mm
Vertical travel (z axis)
490 mm
Spindle speeds:
number (steps)
18
from
12 rpm
up to
1050 rpm
Taper in spindle
40 ISO
Feeds steps:
18
longitudinal from
12 mm/min
up to
1050 mm/min
transversal from
12 mm/min
up to
1050 mm/min
vertical from
6 mm/min
up to
525 mm/min
Rapid traverse:
longitudinal
3.5 m/min
transversal
3.5 m/min
vertical
1.7 m/min
Voltage 50 Hz 3x
380 Volt
Motor output
5.5 HP
Total power required
7.5 HP
Machine's weight about
2100 kg
Overall dimensions machine:
Length
1600 mm
Width
1600 mm
Height
1600 mm
Various accessories:
Chip tray
Technical specifications and pictures without guarantee.
