Technical data
Table length
700 mm
Table width
285 mm
Longitudinal travel (X-axis)
400 mm
Transversal travel (y axis)
200 mm
Vertical travel (z axis)
400 mm

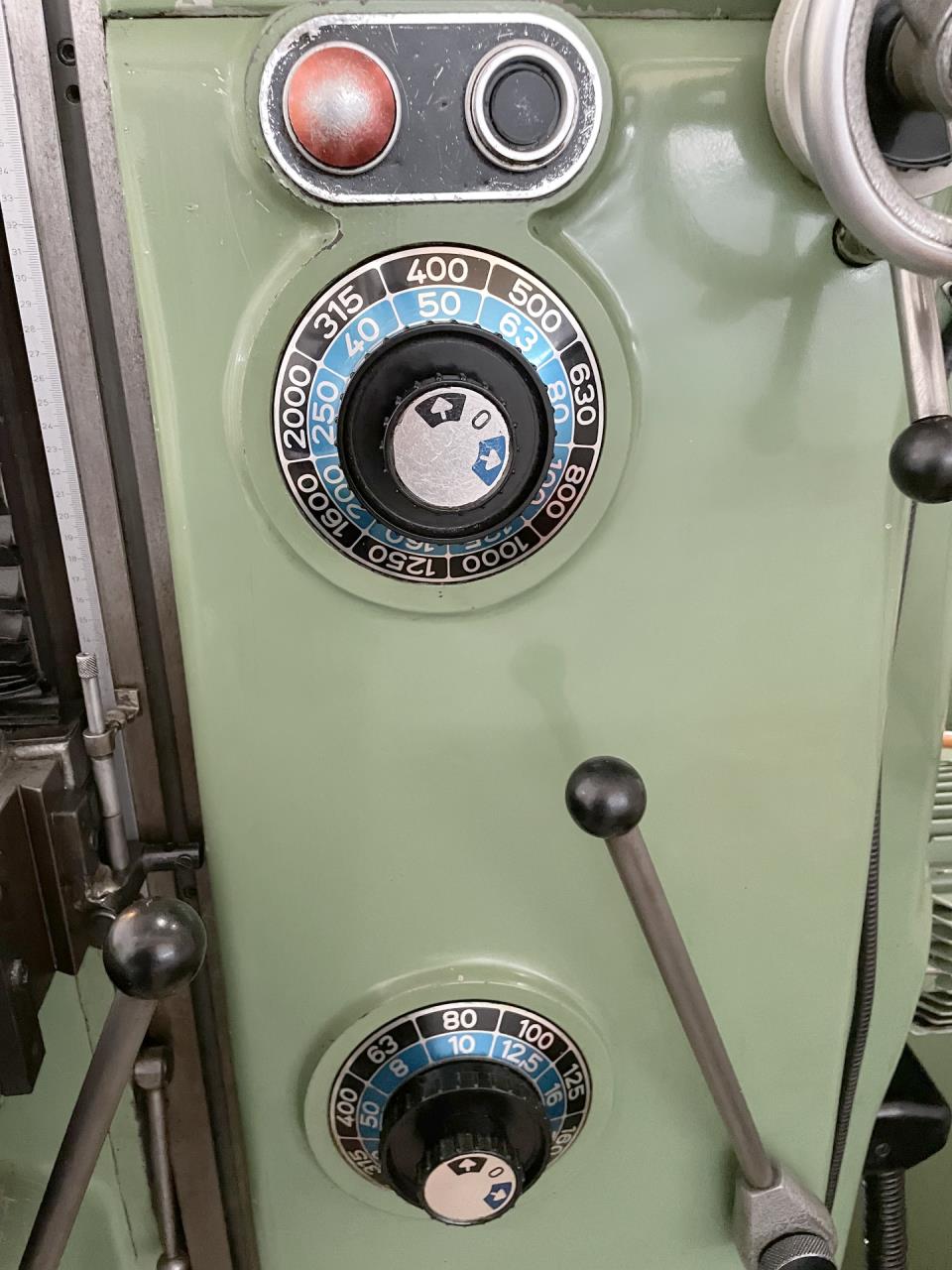

Spindle speeds:
from
40 rpm
up to
2000 rpm
Taper in spindle
40 ISO
Feeds steps:
18
longitudinal from
8.0 mm/min
up to
400 mm/min
transversal from
8.0 mm/min
up to
400 mm/min
vertical from
8.0 mm/min
up to
400 mm/min
Rapid traverse:
longitudinal
1.2 m/min
transversal
1.2 m/min
vertical
1.2 m/min
Voltage 50 Hz 3x
380 Volt
Motor output
3.0 HP
Machine's weight about
1000 kg
Overall dimensions machine:
Length
1400 mm
Width
1600 mm
Height
1650 mm
Various accessories:

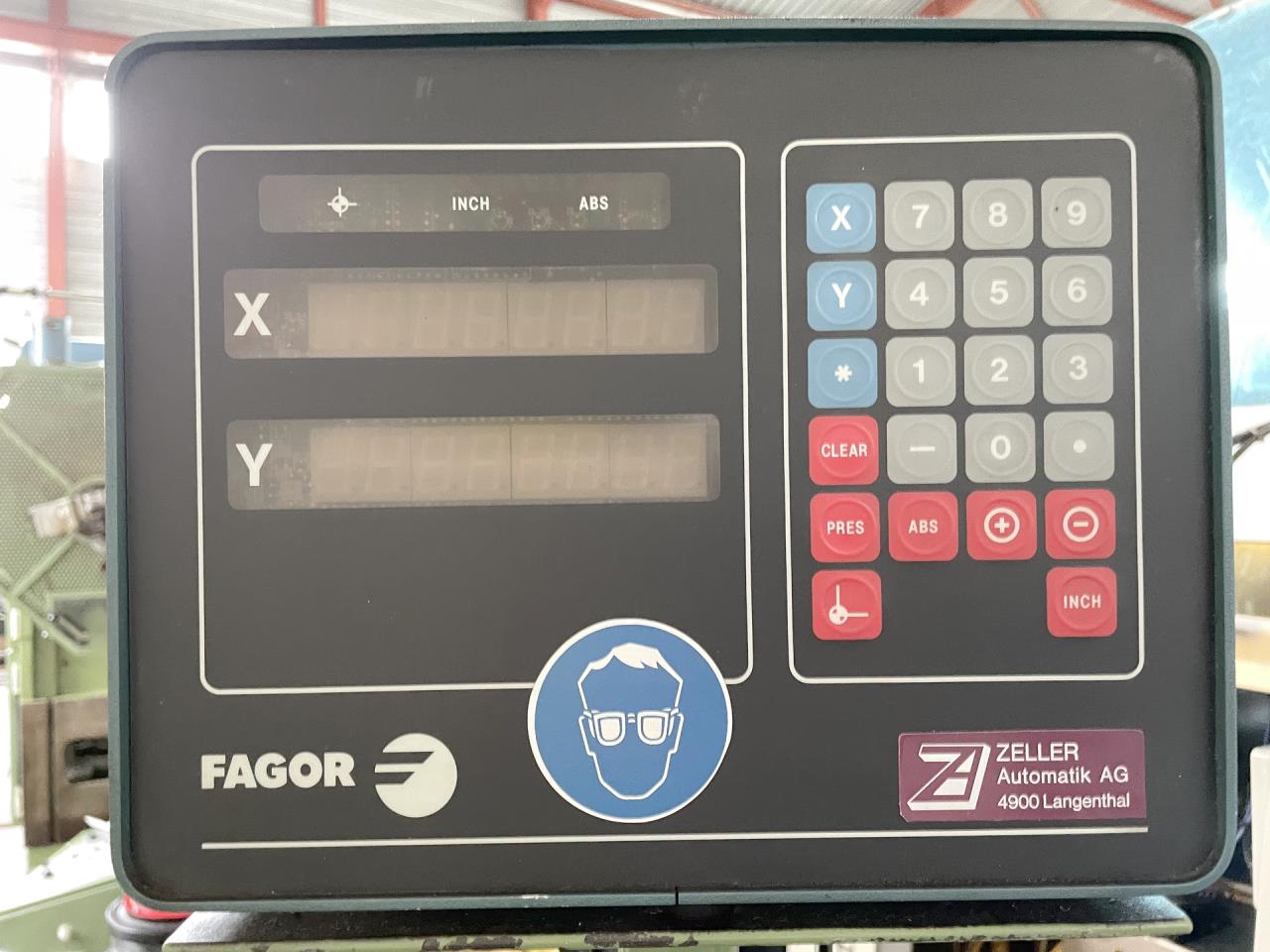

Digital readout number of axis:
2
Lamp
Technical specifications and pictures without guarantee.
