stock no. :
21739
Machine's group :
Type :

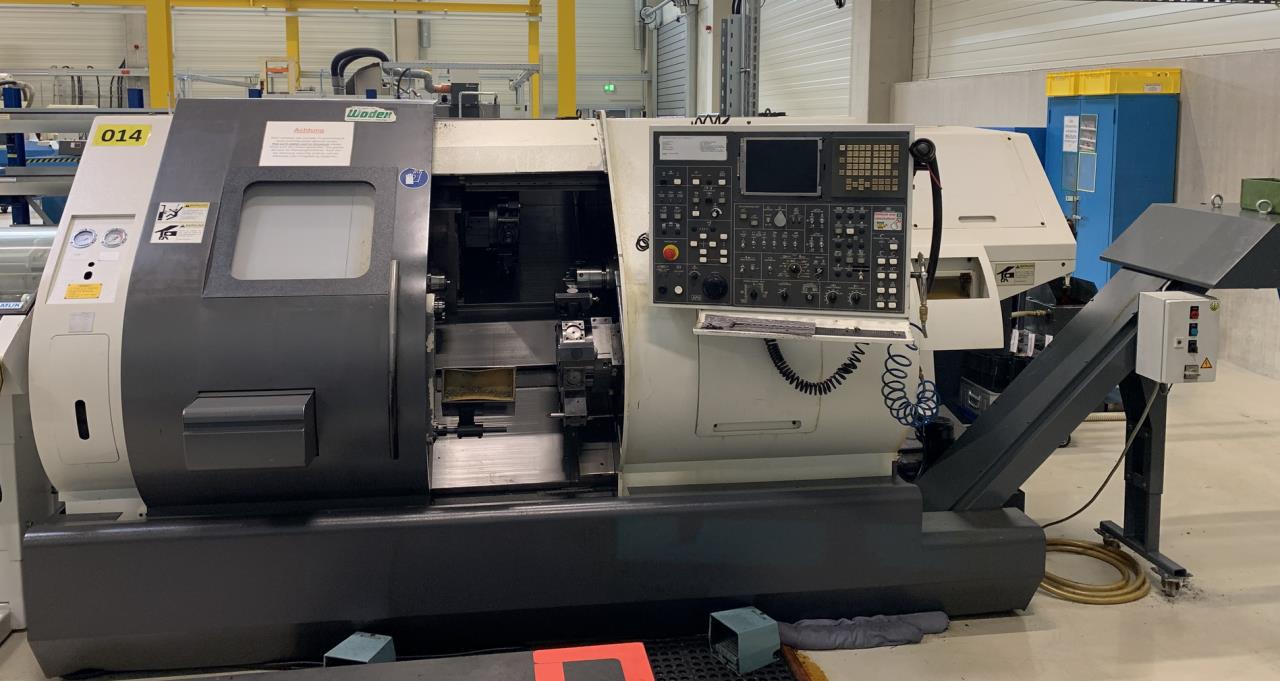

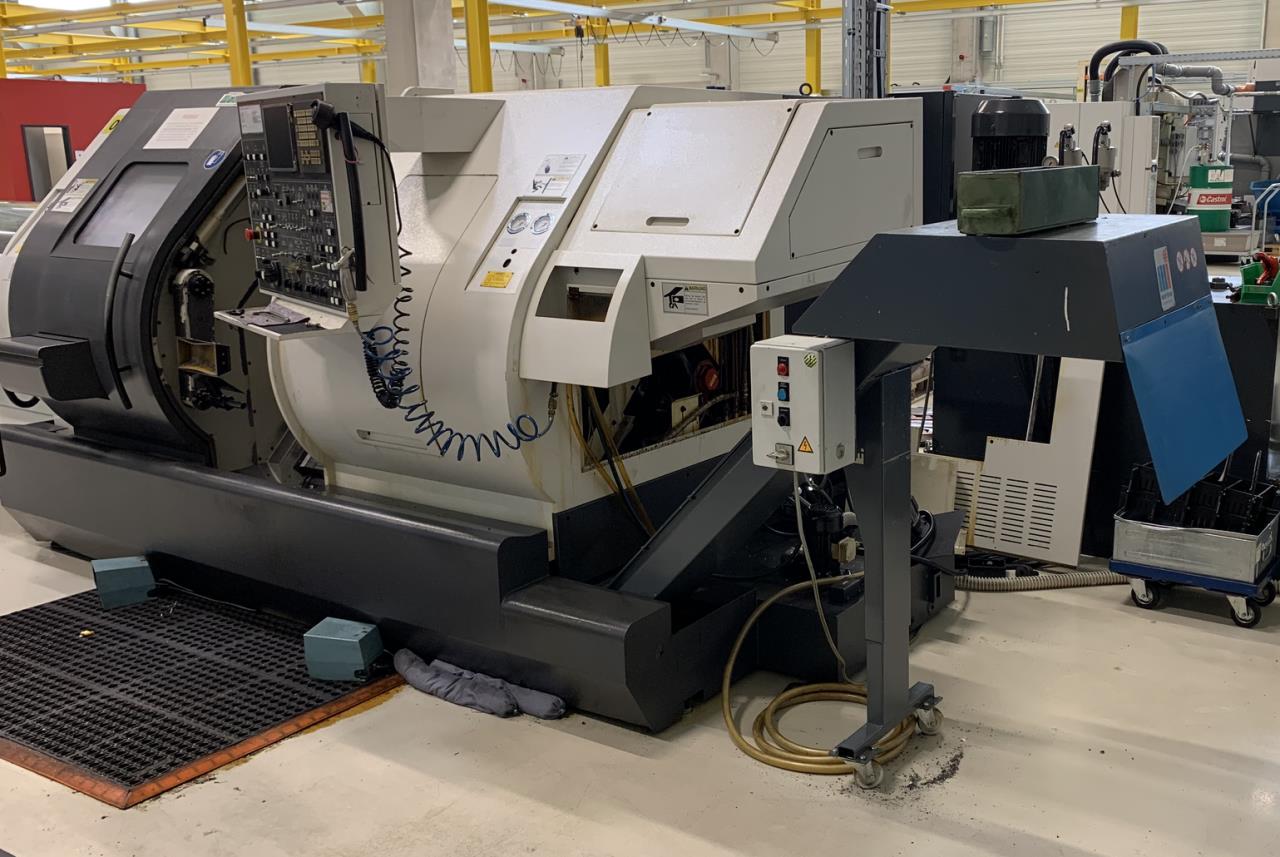

NAKAMURA-TOME WT-150
Controller :

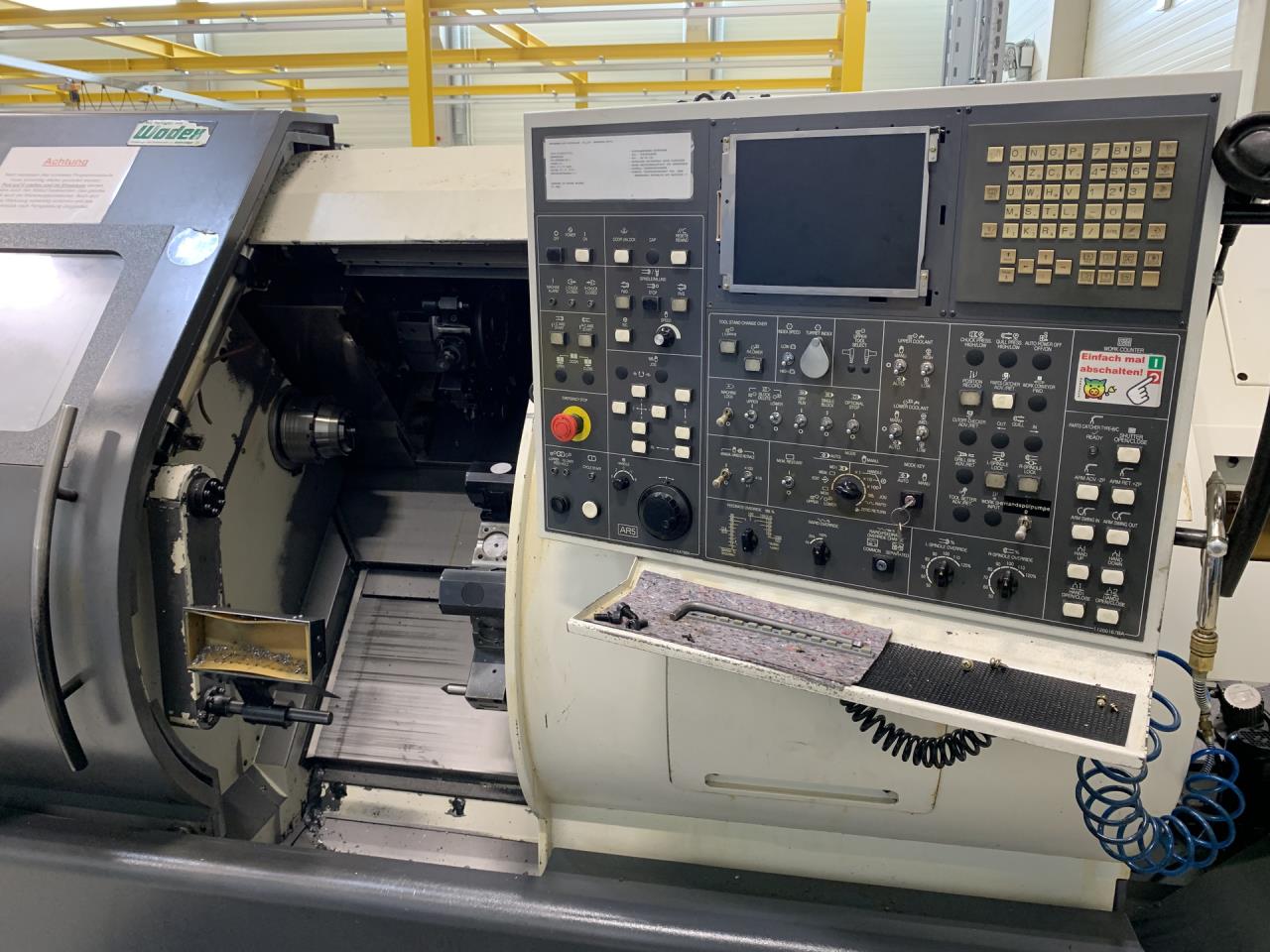

GE FANUC Series 16i-MB
Jahrgang :
2003
Technical data
Number of spindles
2
Number of revolvers
2
Swing over cross-slide
310 mm
Spindle hole
51 mm
Turning diameter
310 mm
Turning length
255 / 755 mm
Carriage 1:
Longitudinal travel (X-axis)
207.5 mm
Transversal strocke (Z axis)
300 mm

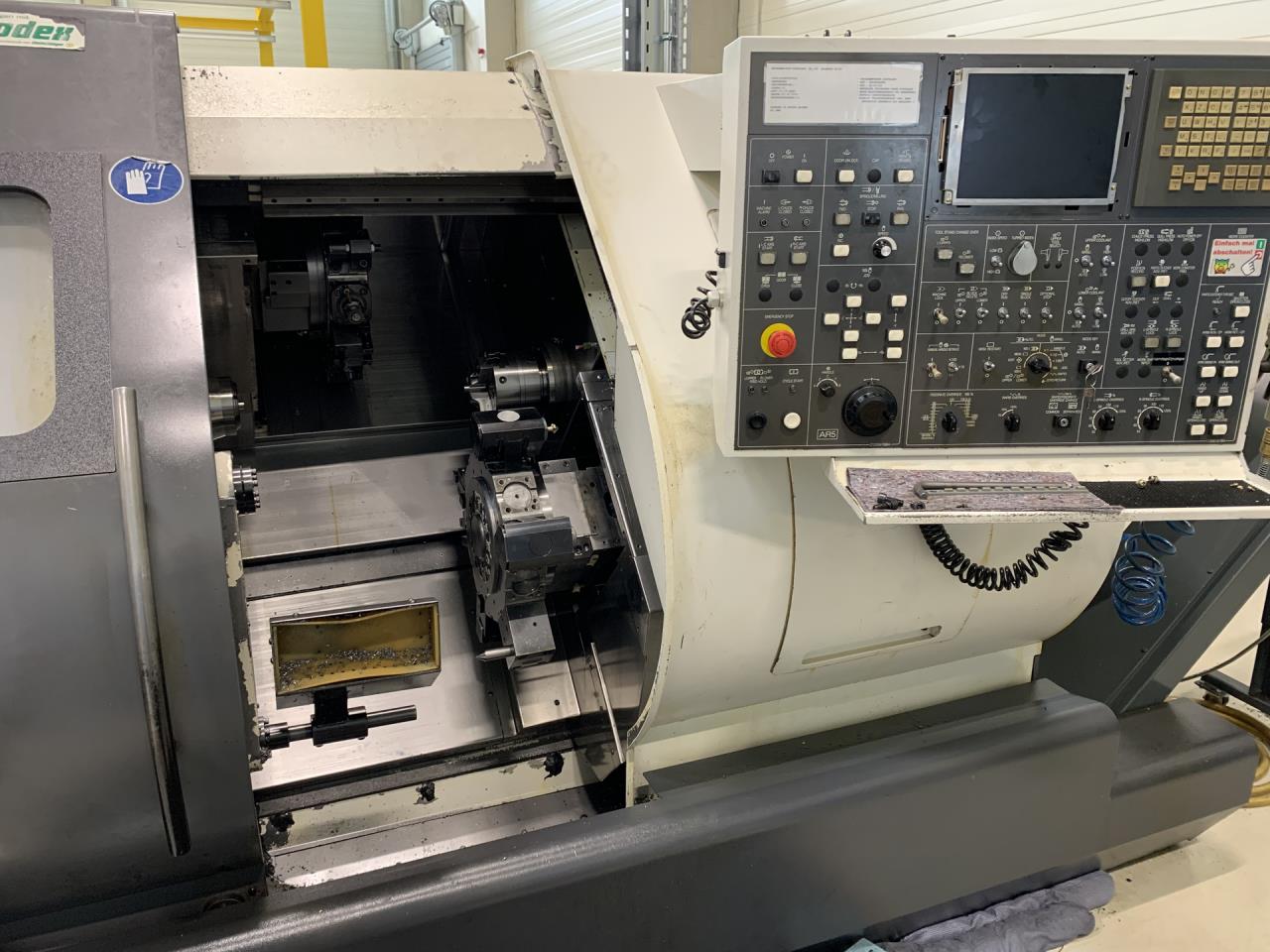

Turret carriage:
Number of positions turret 1
12
Number of positions turret 2
12
Driven tools turret 1
12
Driven tools turret 2
12
Spindle speeds
60 - 6000 rpm
Power of driven tools
3.2 / 2.7 kW
Spindle nose:
Inner cone diameter
25 mm
Taper in spindle:
Camlock
A2-5
C axis (spindle,resolution)
0.001 °
Back spindle:
max. speed
6000 rpm
Internal spindle diameter
42 mm
Power of back spindle
7.5 / 5.5 kW
Y axis
2 x +/- 30 mm
Rapid traverse:
X=12 / Z=40 m/min
Time under power
84881 Hour
Operating time
22689 Hour
Working time
5534 Hour
Spindle motor
7.5 / 5.5 kW
Voltage 50 Hz 3x
400 Volt
Machine's weight about
8500 kg
Overall dimensions machine:
Length
3850 mm
Width
2330 mm
Height
2320 mm
Various accessories:
Lamp

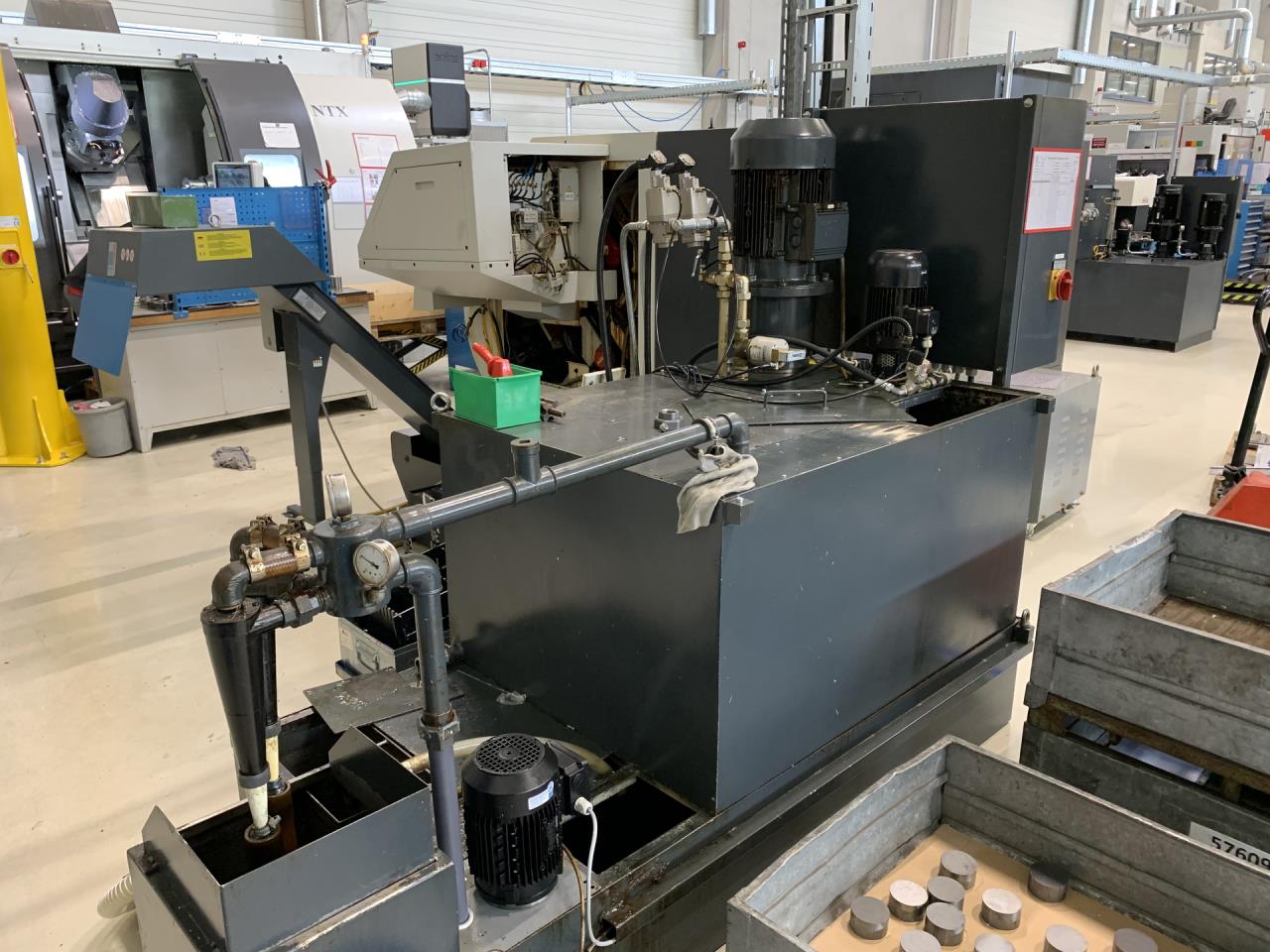

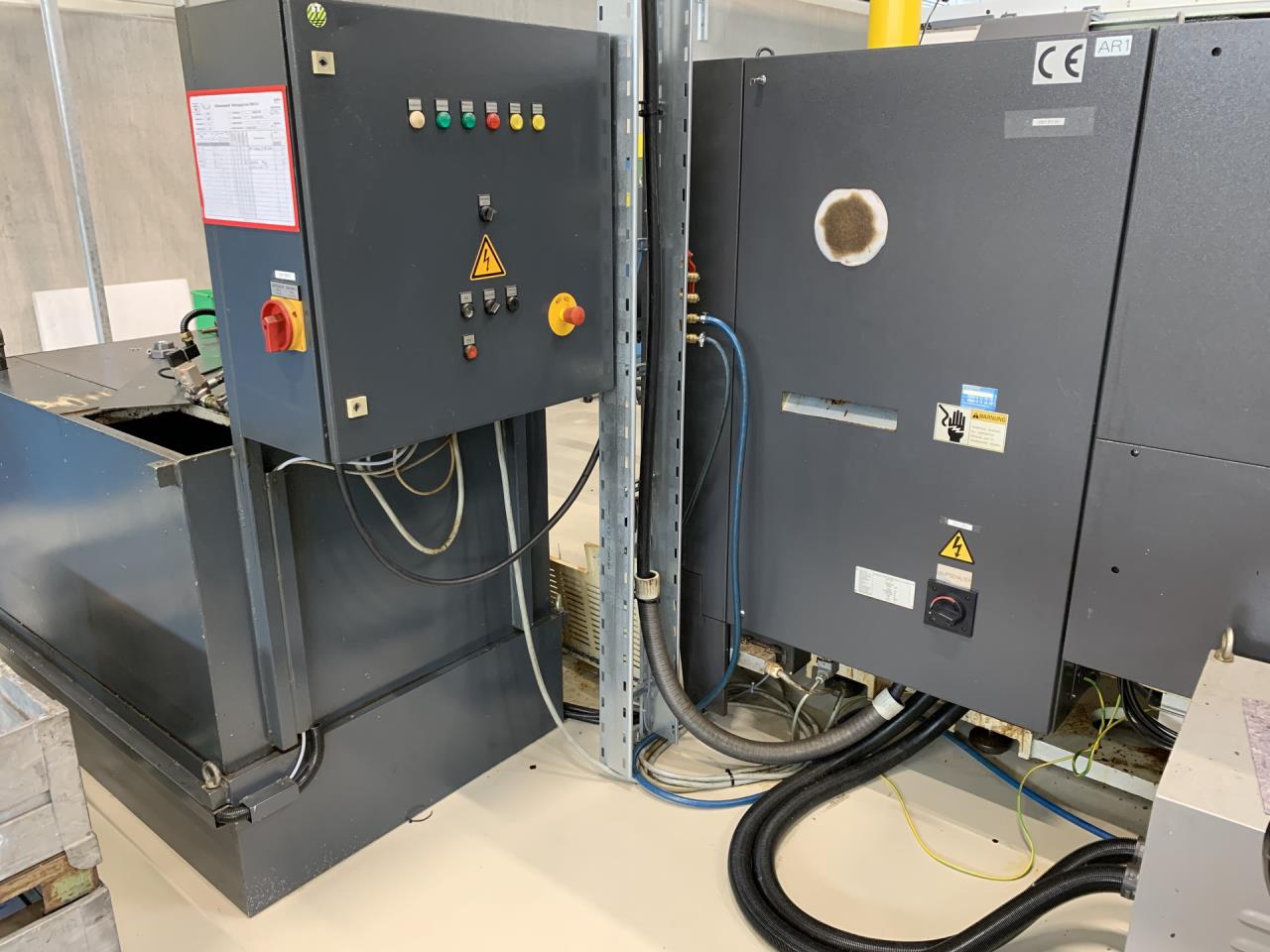

High pression colant device
Parts catcher

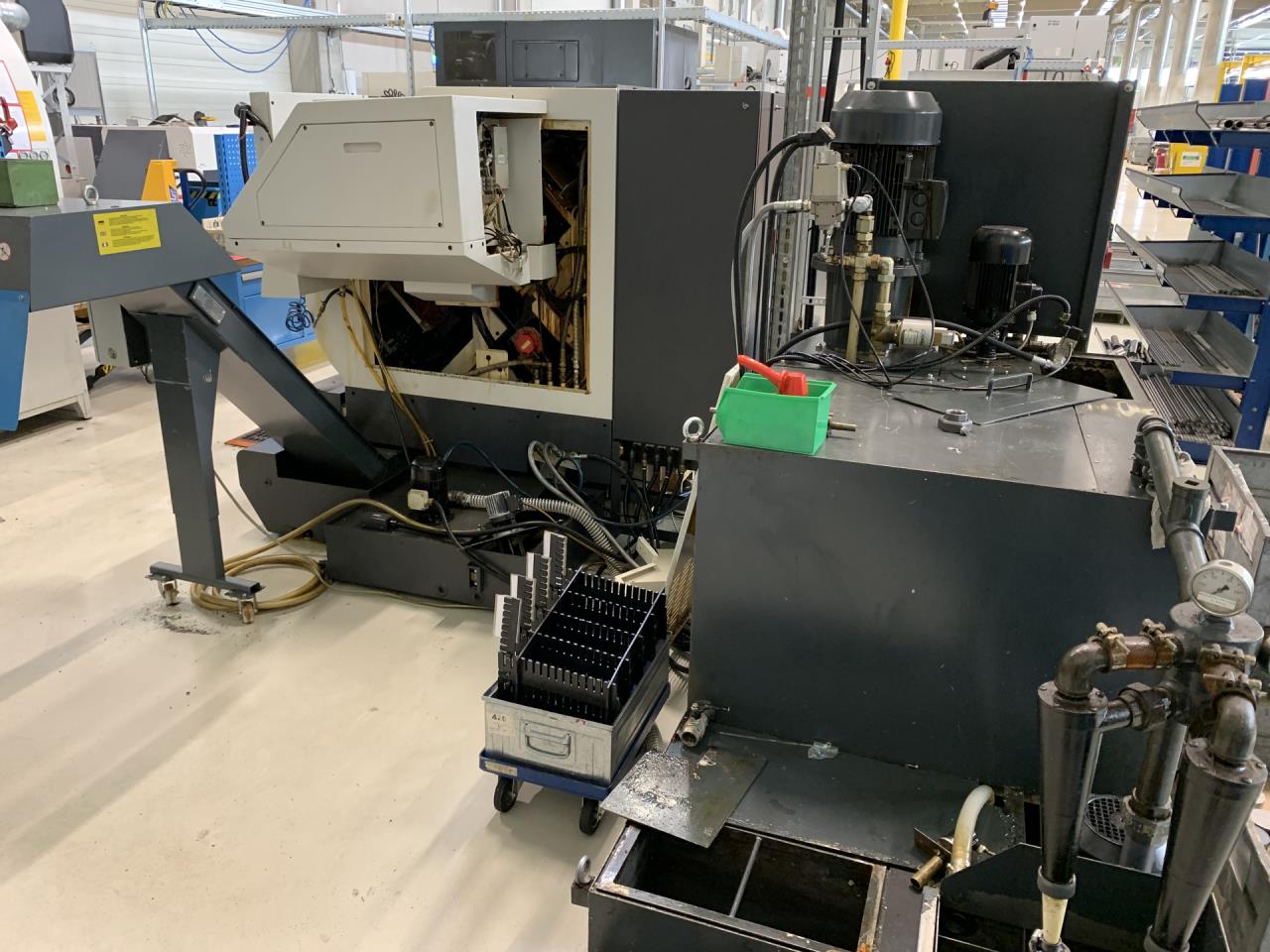

Chip conveyor
Foot pedal

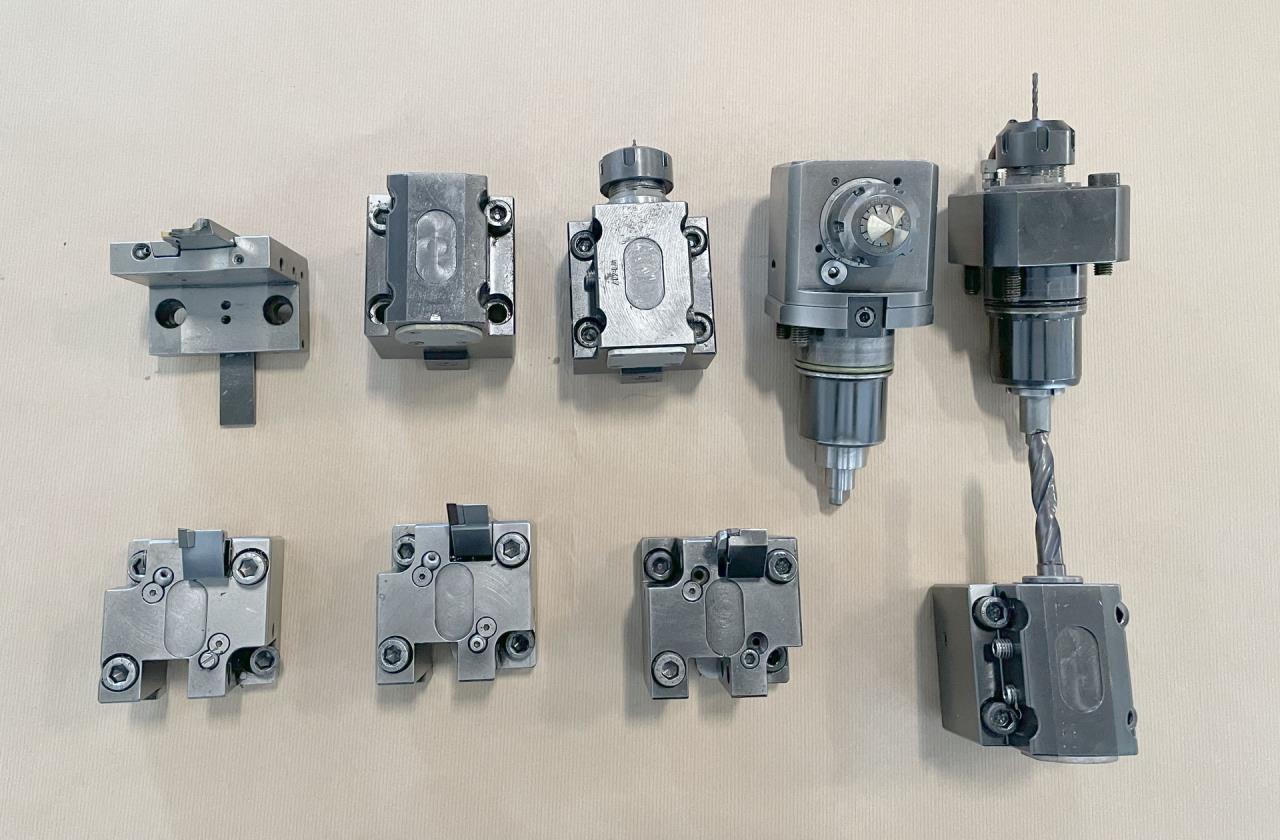

Set of steel holders
Set of toolholders
Technical specifications and pictures without guarantee.
