Technical data
Min. grinding diameter
0.1 mm
Max. grinding diameter
10 mm
Width of the grinding wheel
50 mm
Grinding wheel:
diameter new wheel
150 mm
Width
50 mm
Bore
50 mm
Speeds:
up to
6000 rpm
Regulating spindle:
diameter new wheel
100 mm
Width
50 mm
Bore
40 mm
Speeds:
stepless
from
15 rpm
up to
150 rpm
Main motor
2.0 HP
Machine's weight about
650 kg
Overall dimensions machine:
Length
1800 mm
Width
1400 mm
Height
1600 mm
Various accessories:

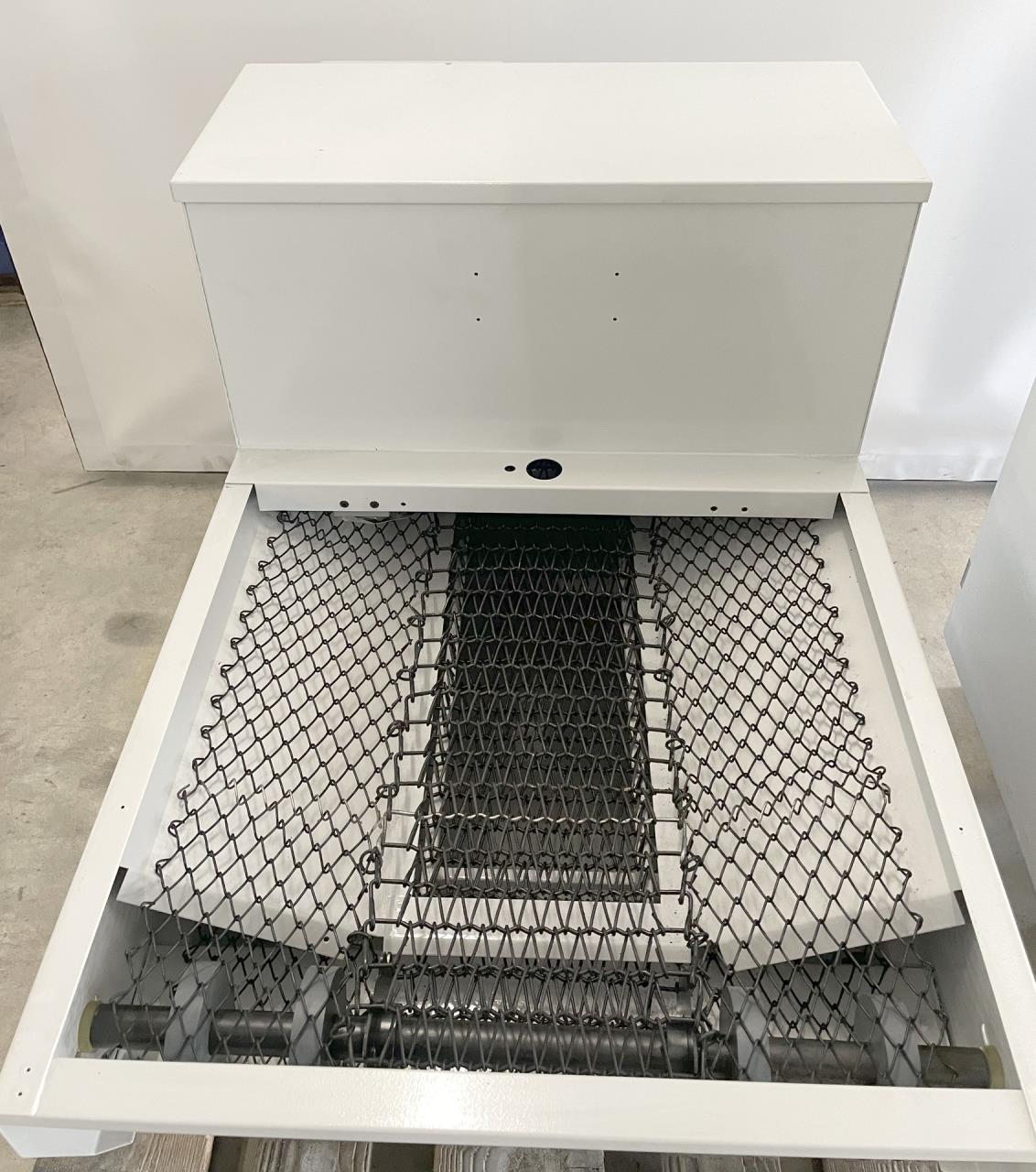

Paper filtration system
Technical specifications and pictures without guarantee.
