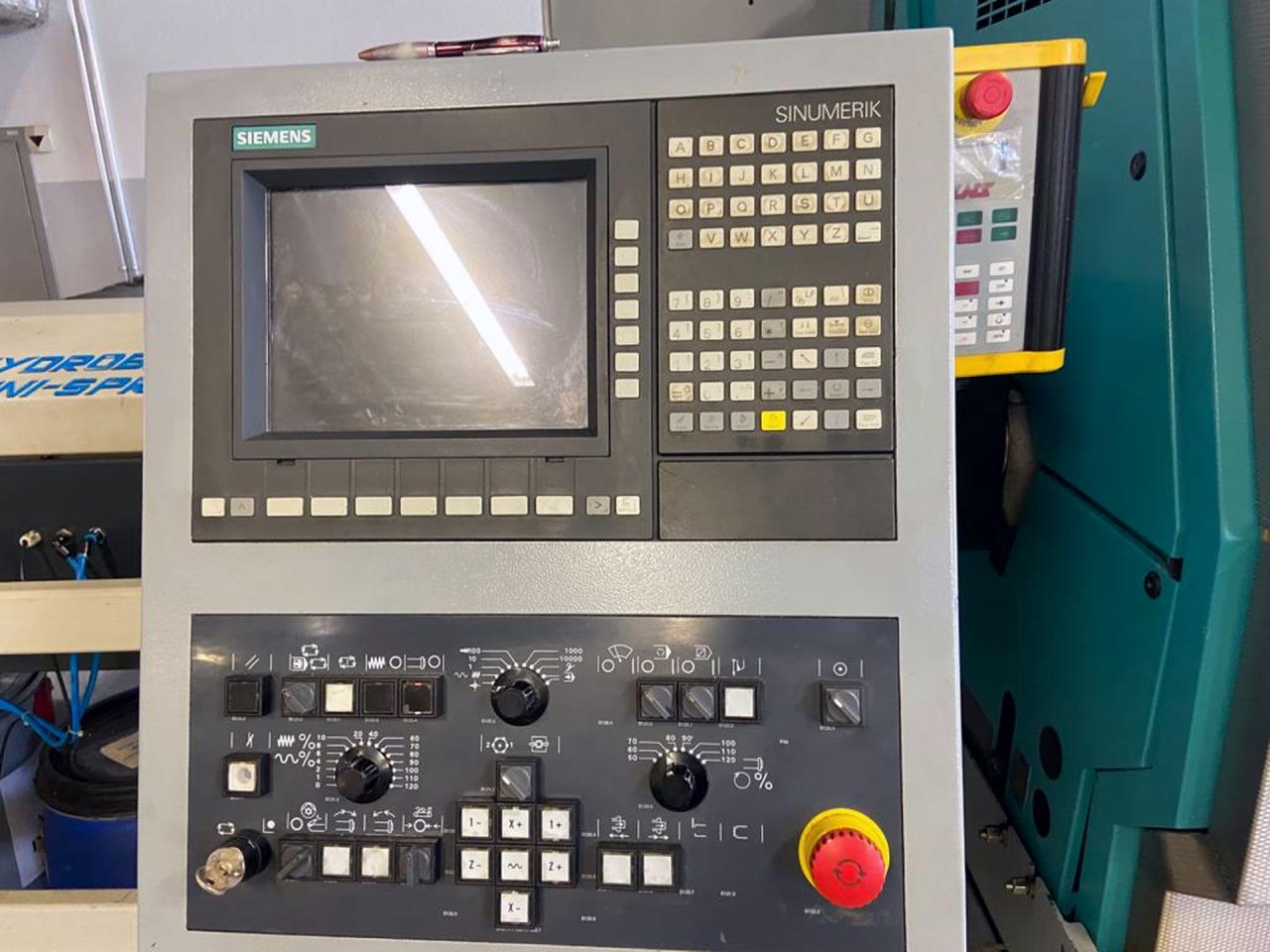

Technical data
Number of spindles
2
Number of revolvers
2
Spindle hole
42 mm
Turning diameter
200 mm
Turning length
400 mm
Turret slide:
Number of positions turret 1
14
Number of positions turret 2
14
Driven tools turret 1
14
Driven tools turret 2
14
Spindle speeds
6000 rpm
Power of driven tools
5.5 kW
Inner cone DIN
69 880
Indexing time
0.4 sec
Upper turret head:
X axis
155 mm
Y axis
+/- 60 mm
Z axis
400 mm
Lower turret head:
X axis
105 mm
Z axis
400 mm
Main spindle:
Internal spindle diameter
60 mm
C axis (spindle,resolution)
0.01 °
Spindle speeds:
stepless
from
0 rpm
up to
6300 rpm
Spindle power
20 / 29 kW
Torque max.
95 / 140 Nm
Back spindle:
max. speed
6300 rpm
Internal spindle diameter
42 mm
Spindle diameter
160 mm
C axis (spindle,resolution)
0.001 °
Back spindle stroke
445 mm
Power of back spindle
13 / 22 kW
Rapid traverse X
22.5 m/min
Rapid traverse Z
45 m/min
Rapid traverse Y
7.5 m/min
Spindle motor
39 kW
Voltage 50 Hz 3x
400 Volt
Machine's weight about
4800 kg
Overall dimensions machine:
Length
2500 mm
Width
2400 mm
Height
2700 mm
Various accessories:

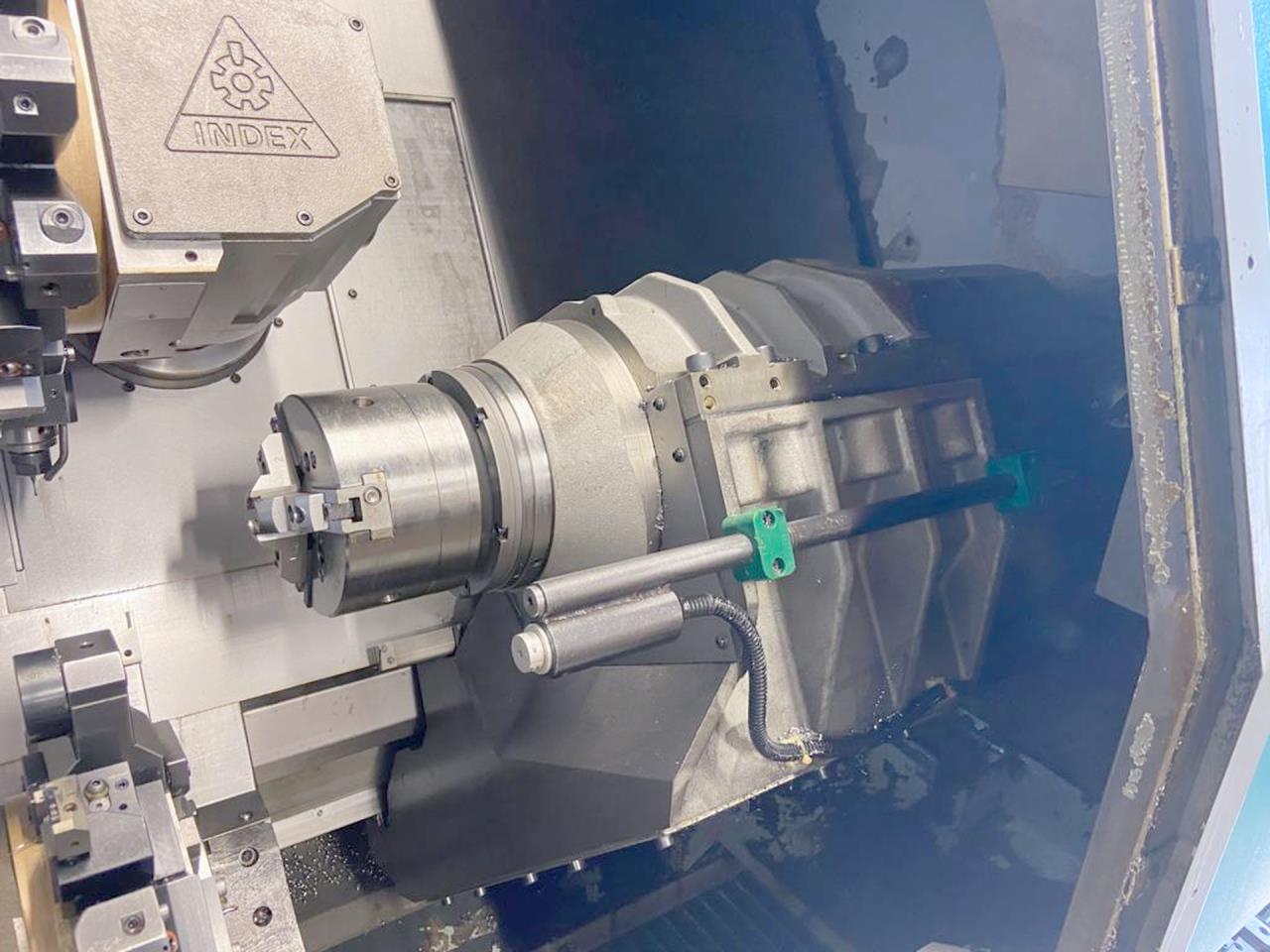

3-jaw chuck

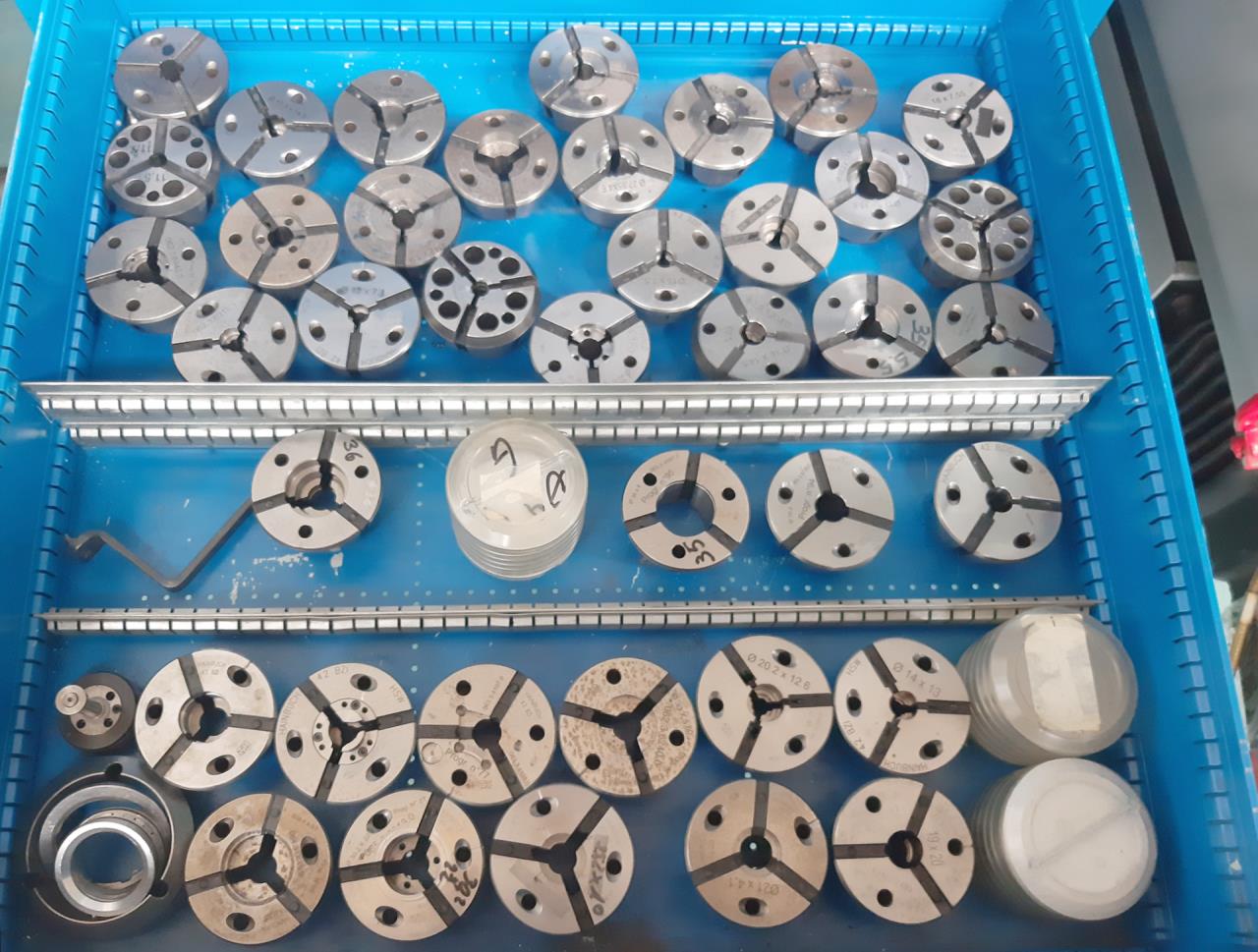

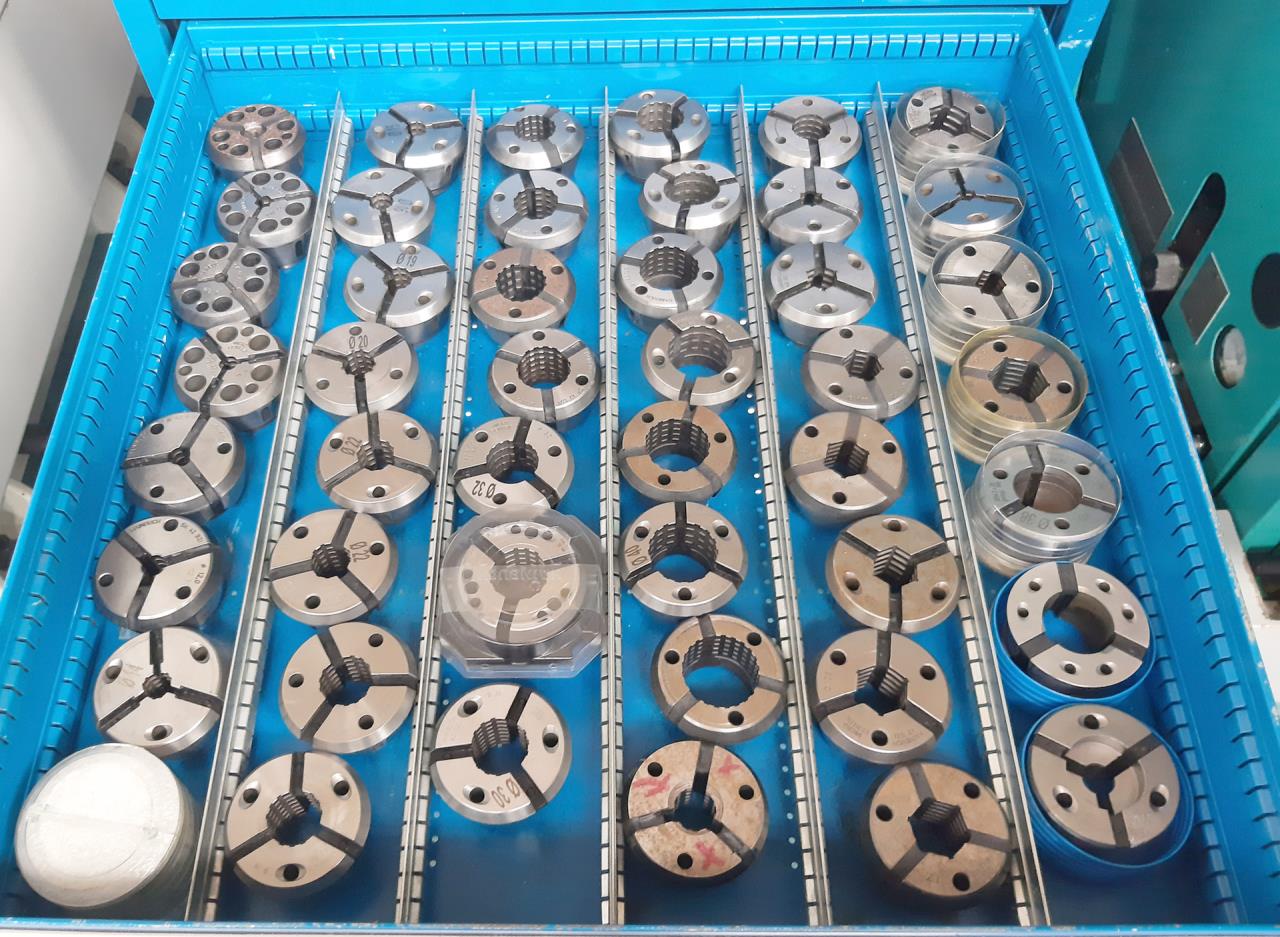

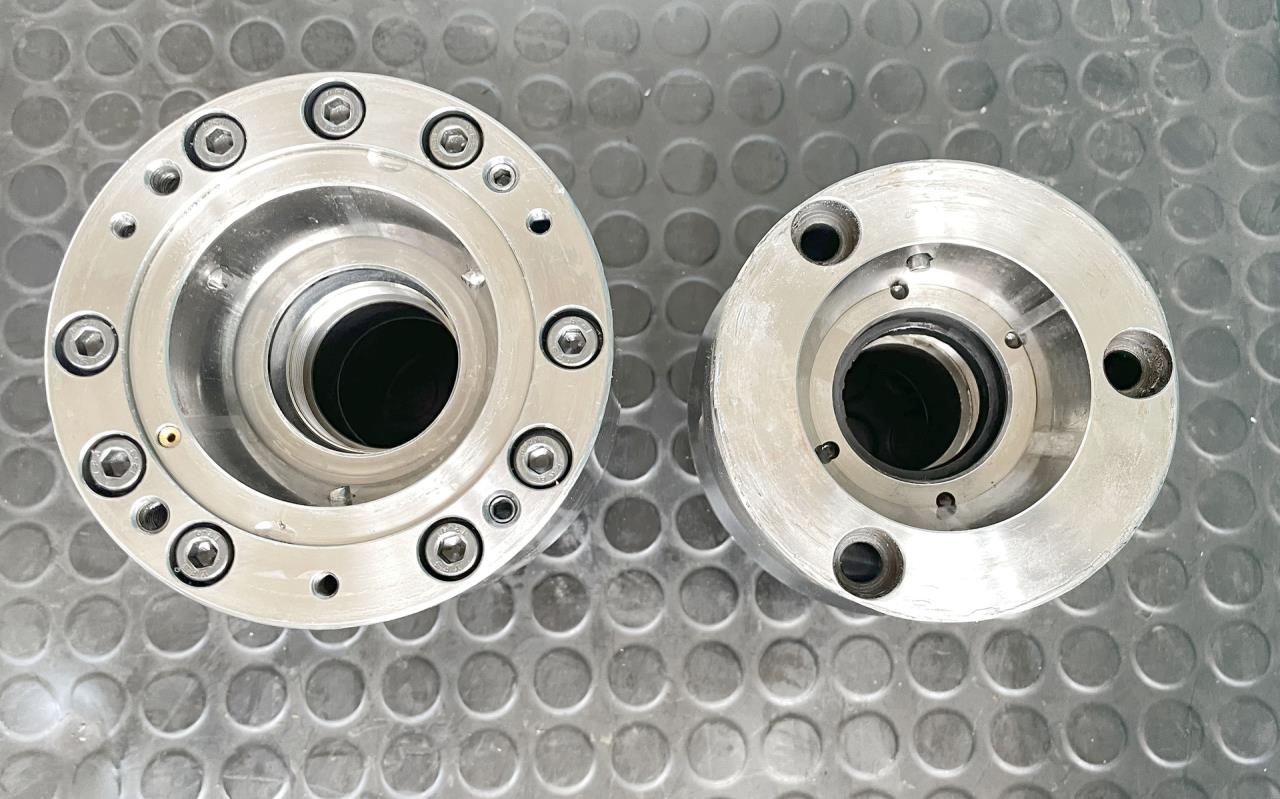

Collet chuck (number)
2

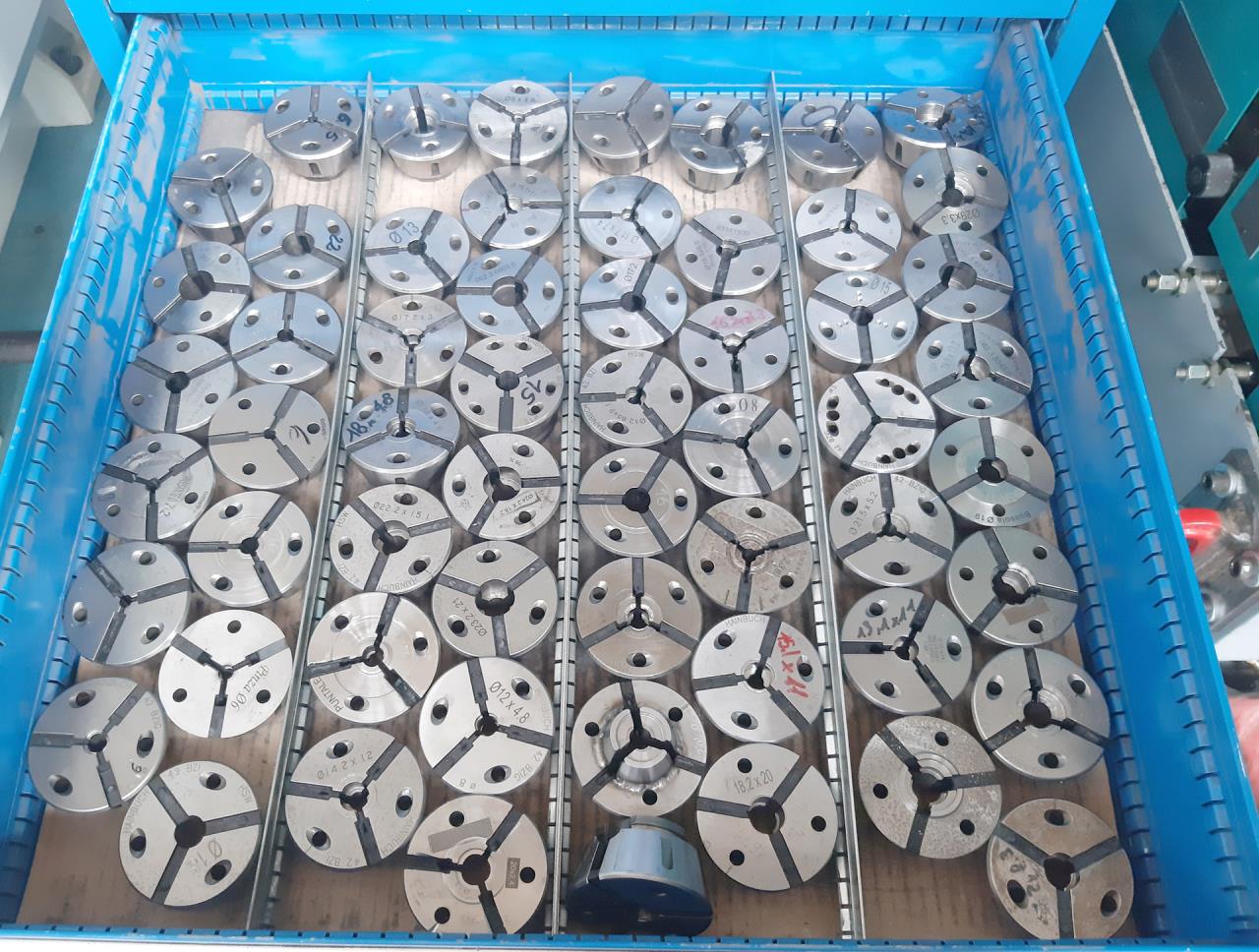

Set of collets
Lamp

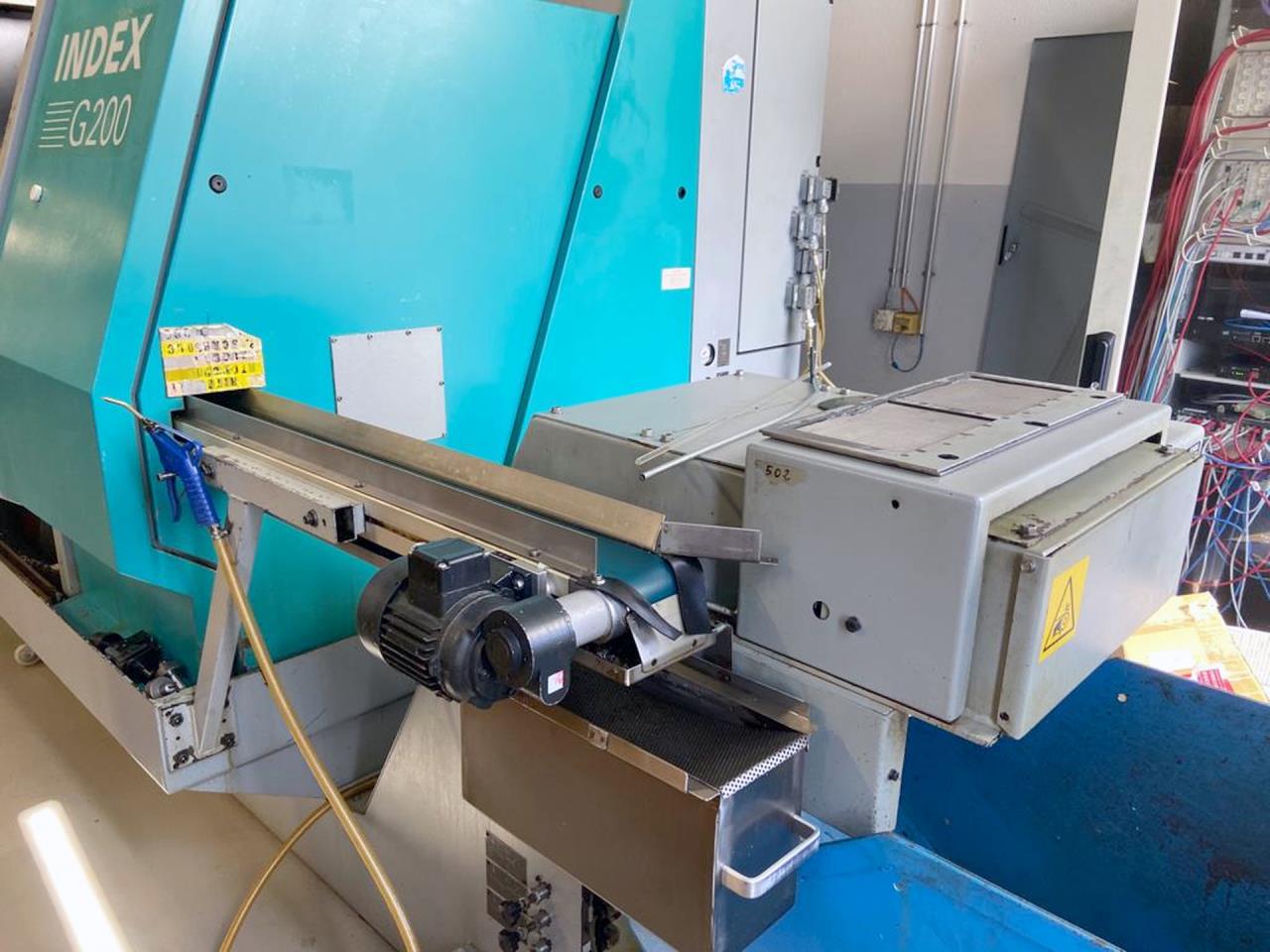

Bar feeder
LNS
Type
MINI-SPRINT S2-42
Length of bars max.
4000 mm
Tool cabinet
Interface serial port RS 232
Part separating device
Workpiece conveyor
Chip conveyor
Foot pedal

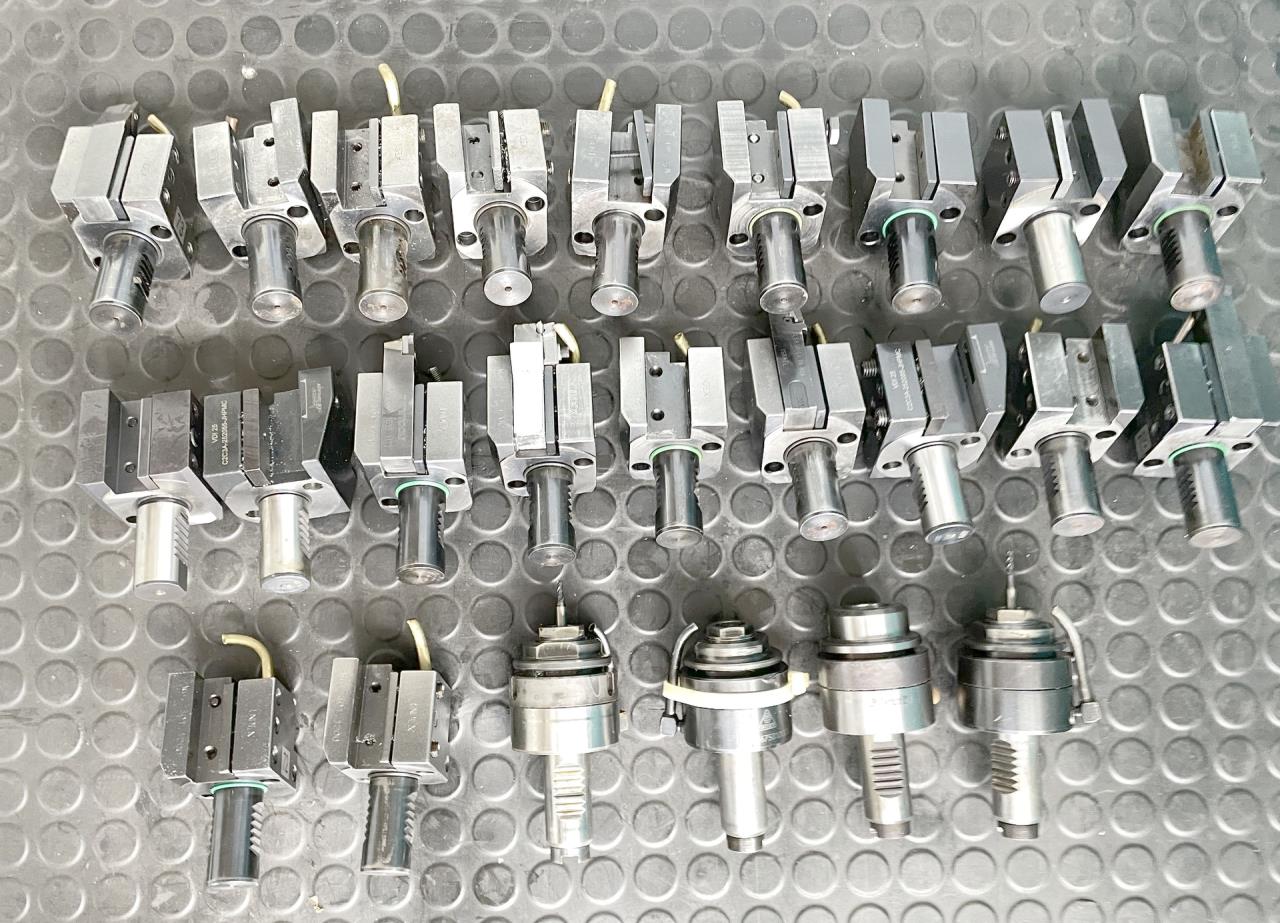

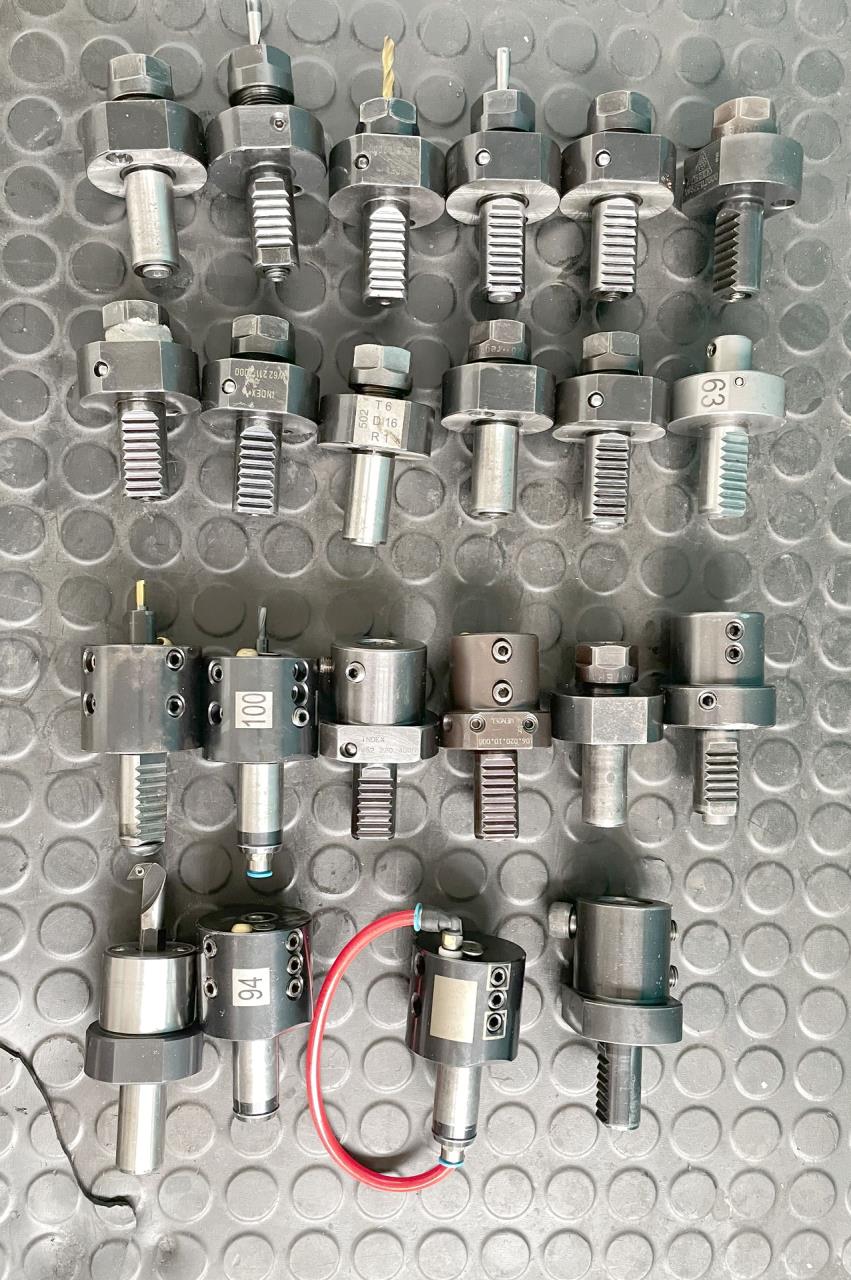

Set of steel holders

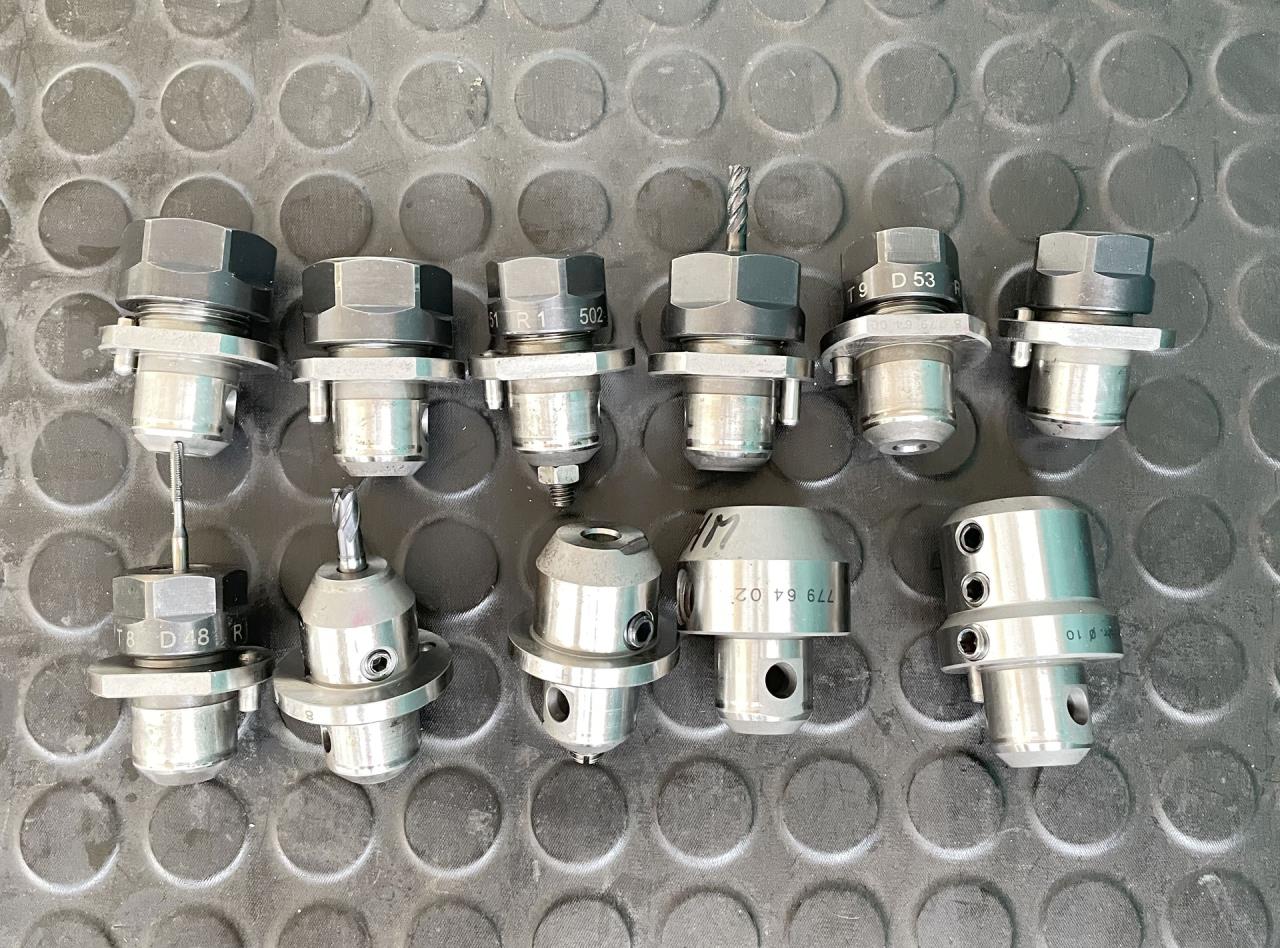

Set of toolholders

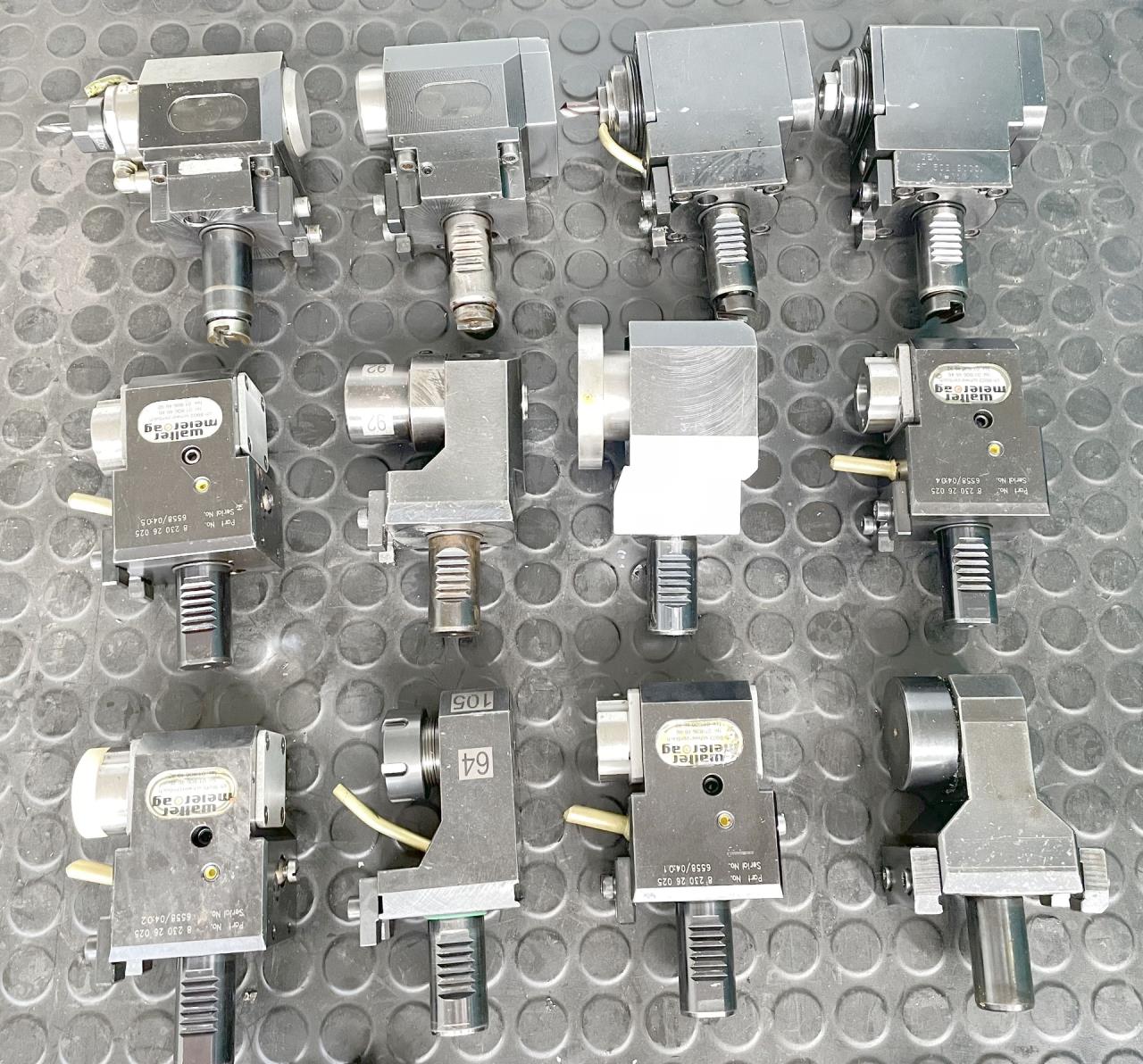

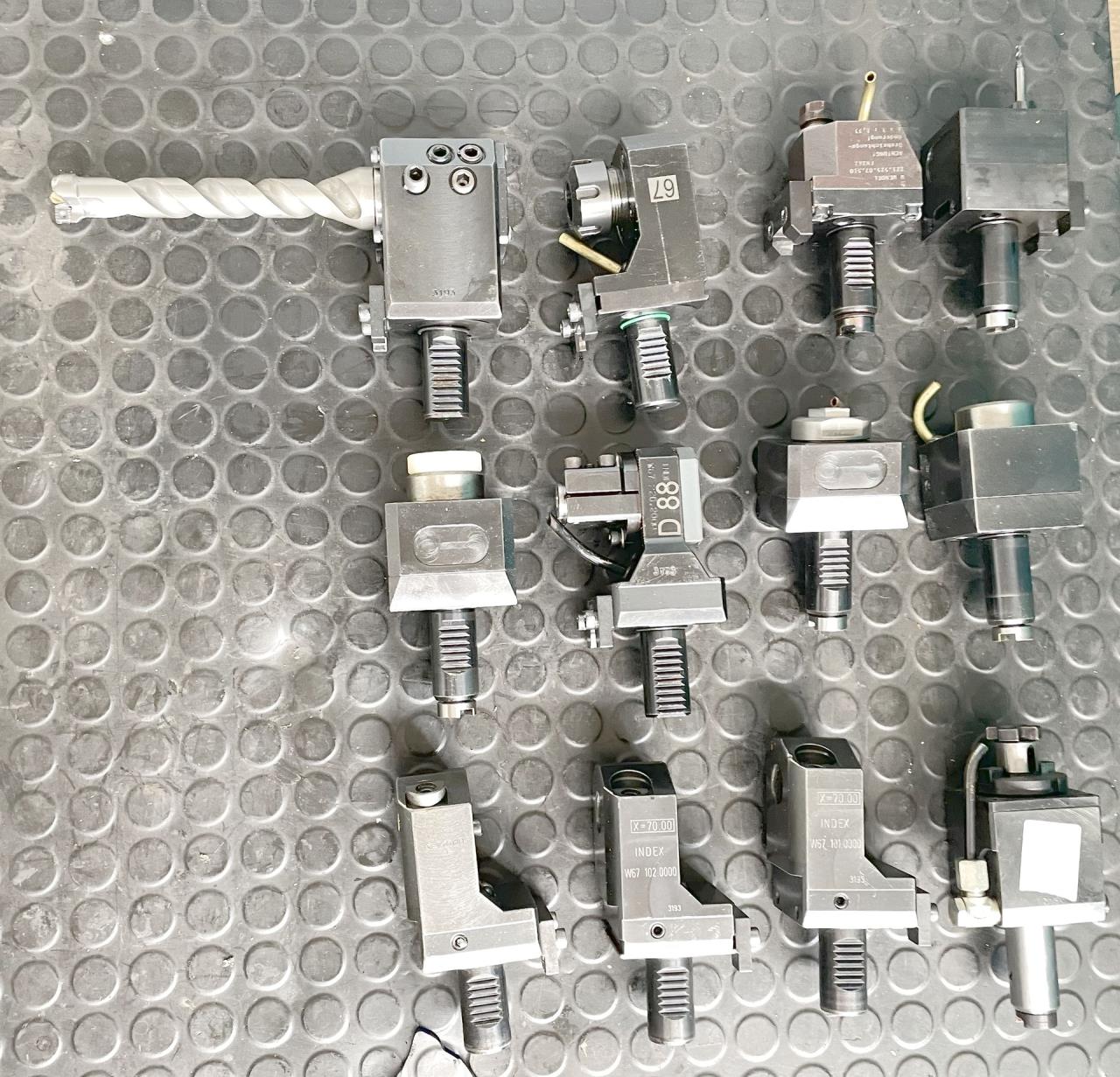

Driven tools (number)
Rotating viewing window
Technical specifications and pictures without guarantee.
