Technical data
Min. grinding diameter
1.5 mm
Max. grinding diameter
75 mm
Width of the grinding wheel
160 mm
Max. workpiece length
for infeed grinding
160 mm
Grinding wheel:
diameter new wheel
508 mm
diameter used wheel
388 mm
Width
160 mm
Bore
305 mm
Speeds:
number (steps)
from
1200 rpm

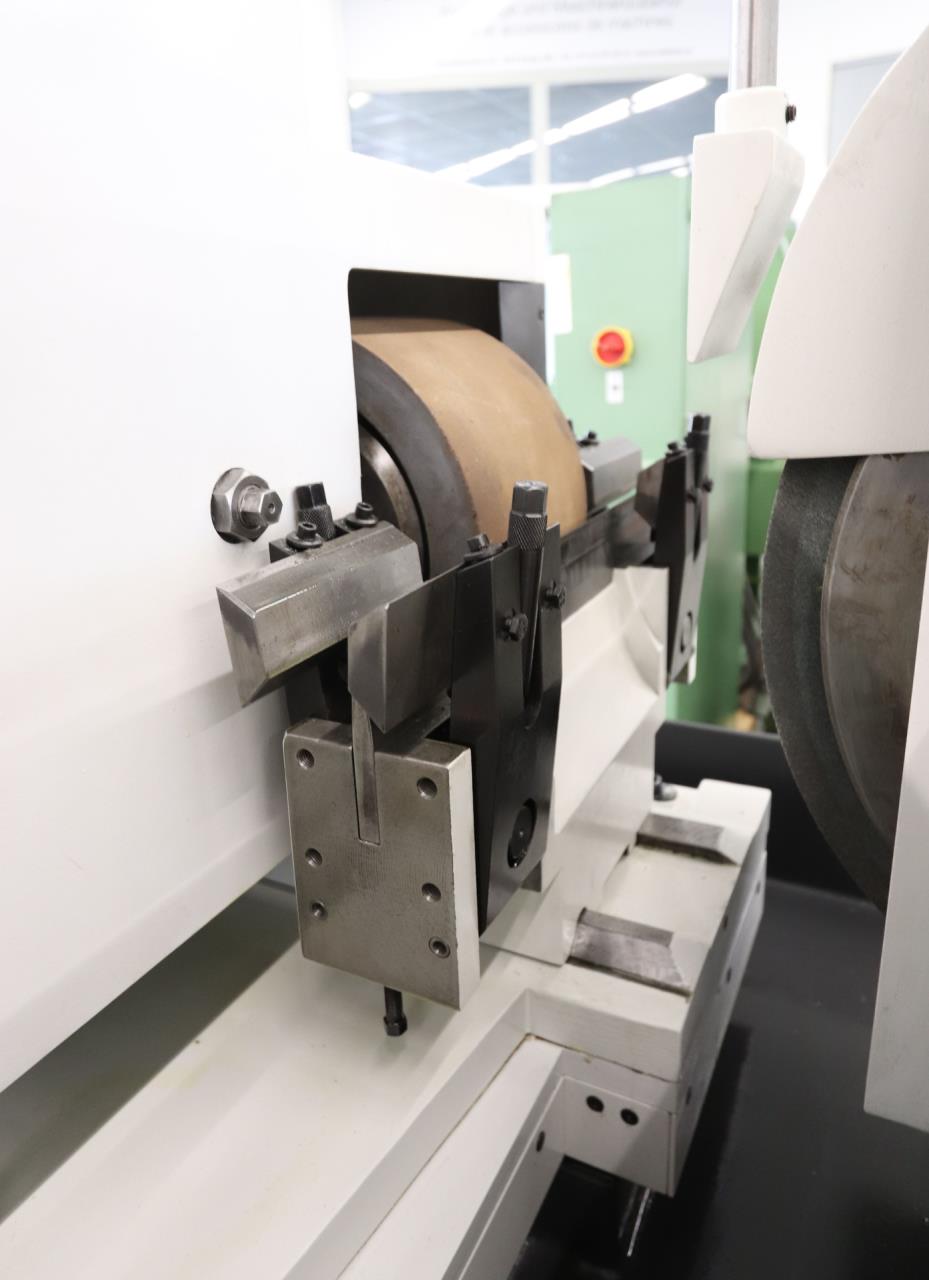

Regulating spindle:
diameter new wheel
305 mm
diameter used wheel
225 mm
Width
160 mm
Bore
127 mm
Speeds:
stepless
from
15 rpm
up to
250 rpm
Voltage 50 Hz 3x
380 Volt
Main motor
15 HP
Machine's weight about
2640 kg
Overall dimensions machine:
Length
2300 mm
Width
1700 mm
Height
1495 mm
Various accessories:
Coolant system
Technical specifications and pictures without guarantee.
