Technical data

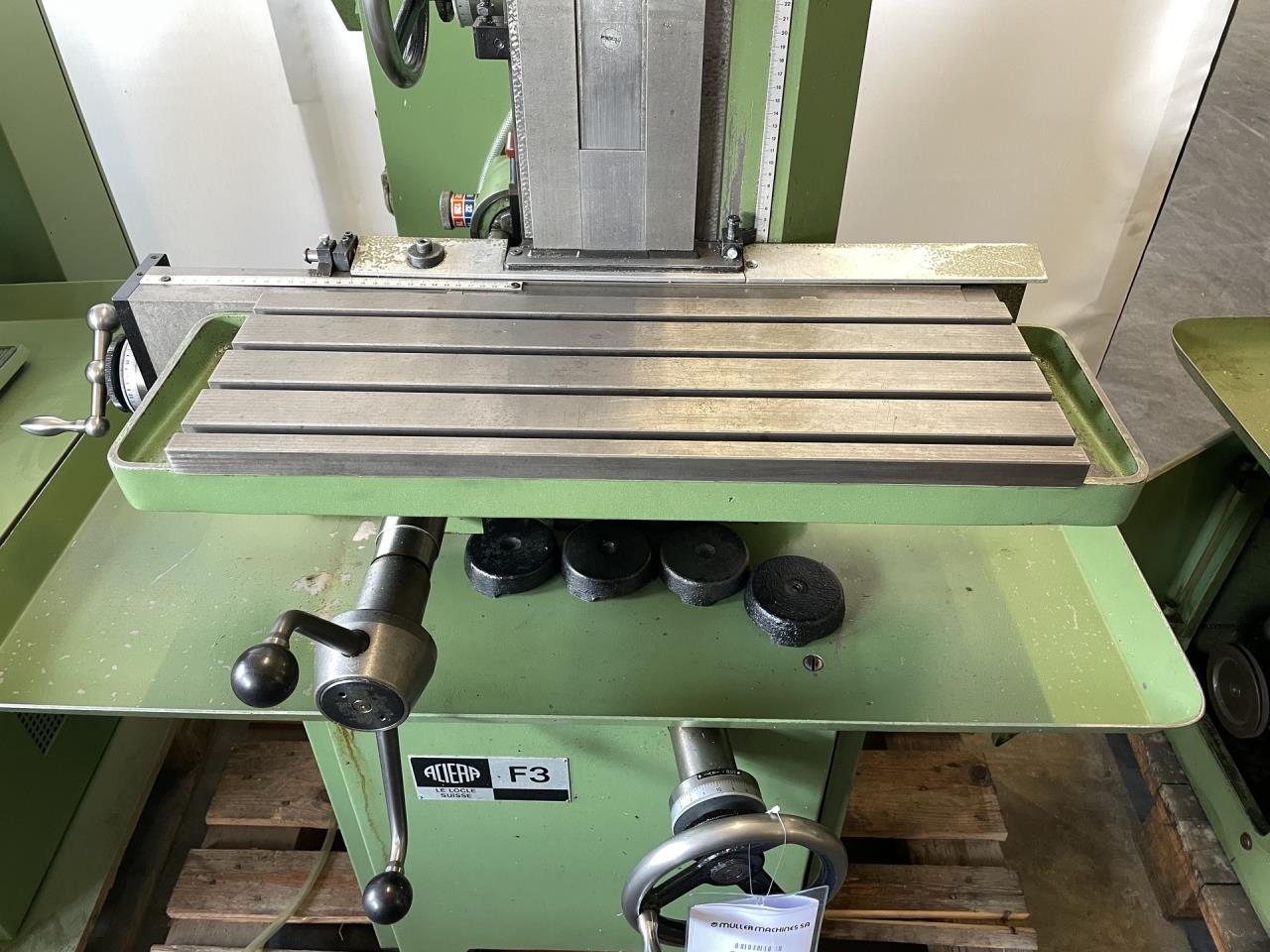

Table length
600 mm
Table width
190 mm
Longitudinal travel (X-axis)
300 mm
Transversal travel (y axis)
135 mm
Vertical travel (z axis)
300 mm
Spindle speeds:
number (steps)
8
from
125 rpm
up to
2000 rpm
Taper in spindle
30 ISO
Feeds steps:
8
longitudinal from
12 mm/min
up to
232 mm/min
Voltage 50 Hz 3x
380 Volt
Motor output
2.0 HP
Machine's weight about
620 kg
Overall dimensions machine:
Length
1100 mm
Width
900 mm
Height
1600 mm
Various accessories:
Lamp
Technical specifications and pictures without guarantee.
