Technical data
Min. internal grinding diameter
5 mm
Max. internal grinding diameter
250 mm
Grinding depth
200 mm
Workpiece spindle speeds:
stepless
from
15 rpm
up to
1500 rpm
Max. angle
+/-15 °
Spindle hole
50 mm
Max. distance from workpiece
spindle to grinding
spindle holder
770 mm
Table speeds:
stepless
from
0 m/min
up to
10 m/min
Workpiece spindle motor
0.5 kW
Drive for internal grinding spindle
3 kW
Machine's weight about
2250 kg
Various accessories:
Redressing device
3-jaw chuck diameter
200 mm
3-jaw chuck diameter
250 mm
4-jaw chuck diameter
250 mm
Set of hard jaws
Set of soft jaws
Macnetic chuck diameter
200 mm
Steady

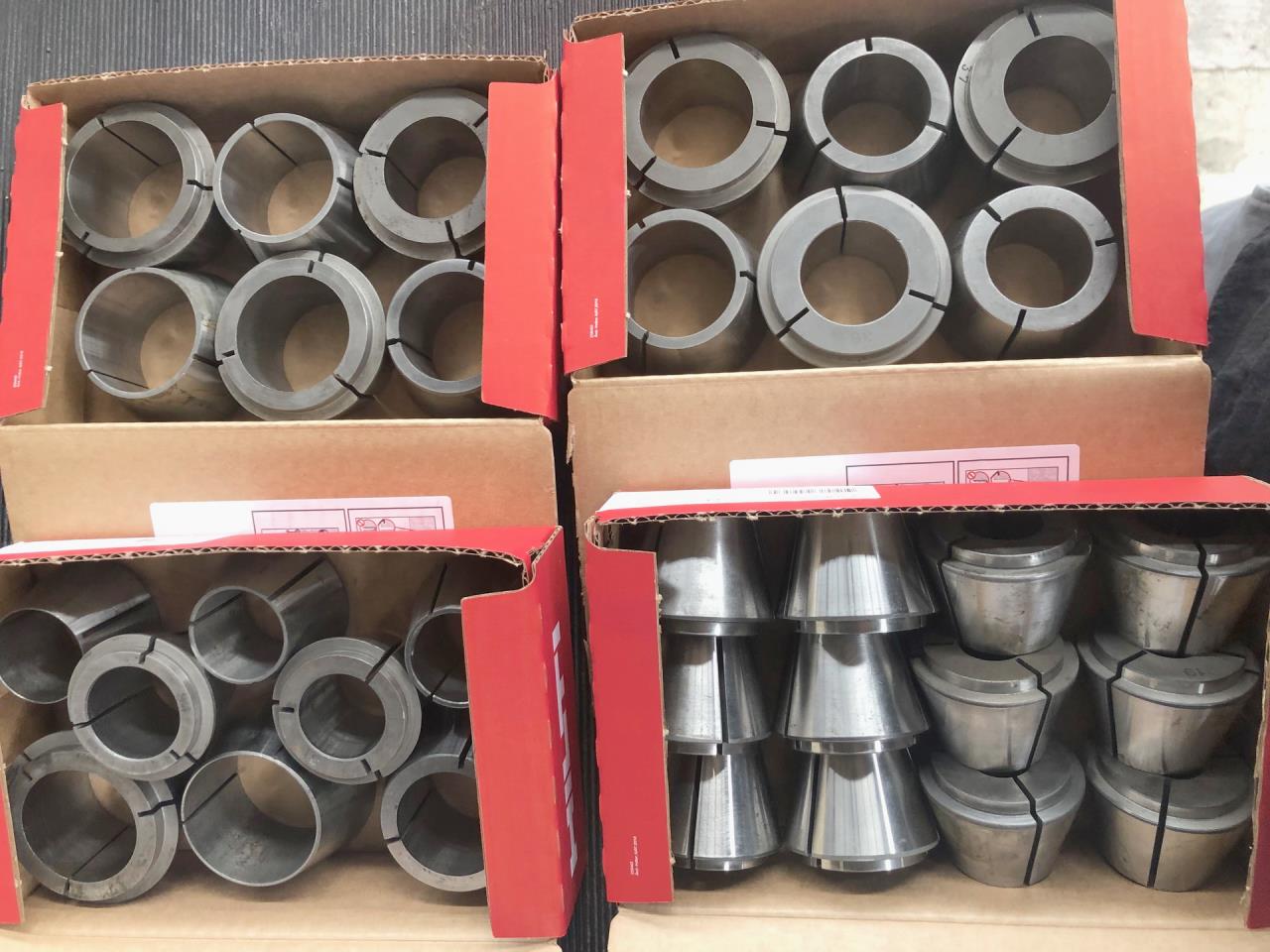

Set of collets

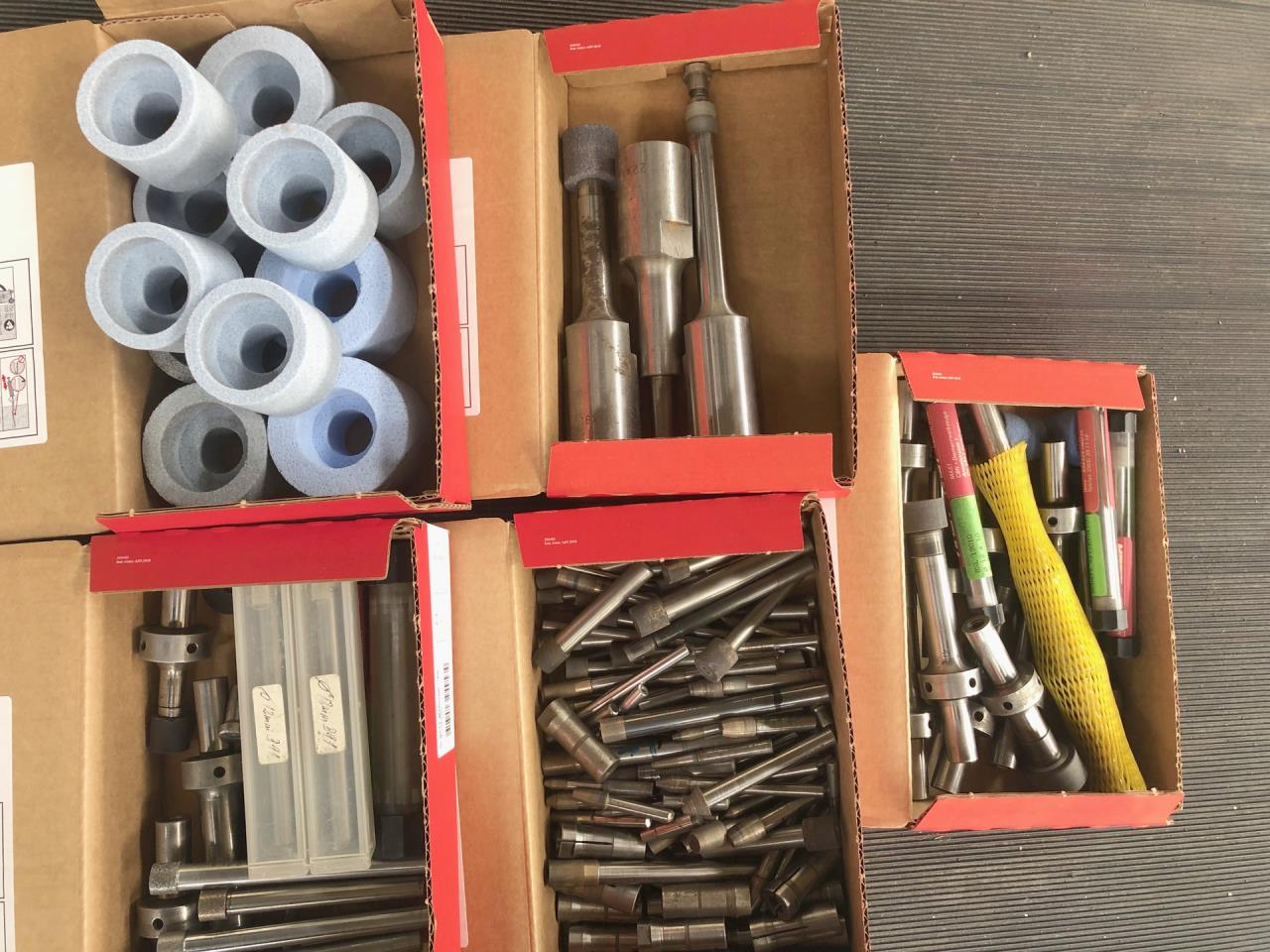

Set of grinding arbors
Technical specifications and pictures without guarantee.
