stock no. :
20606
Machine's group :

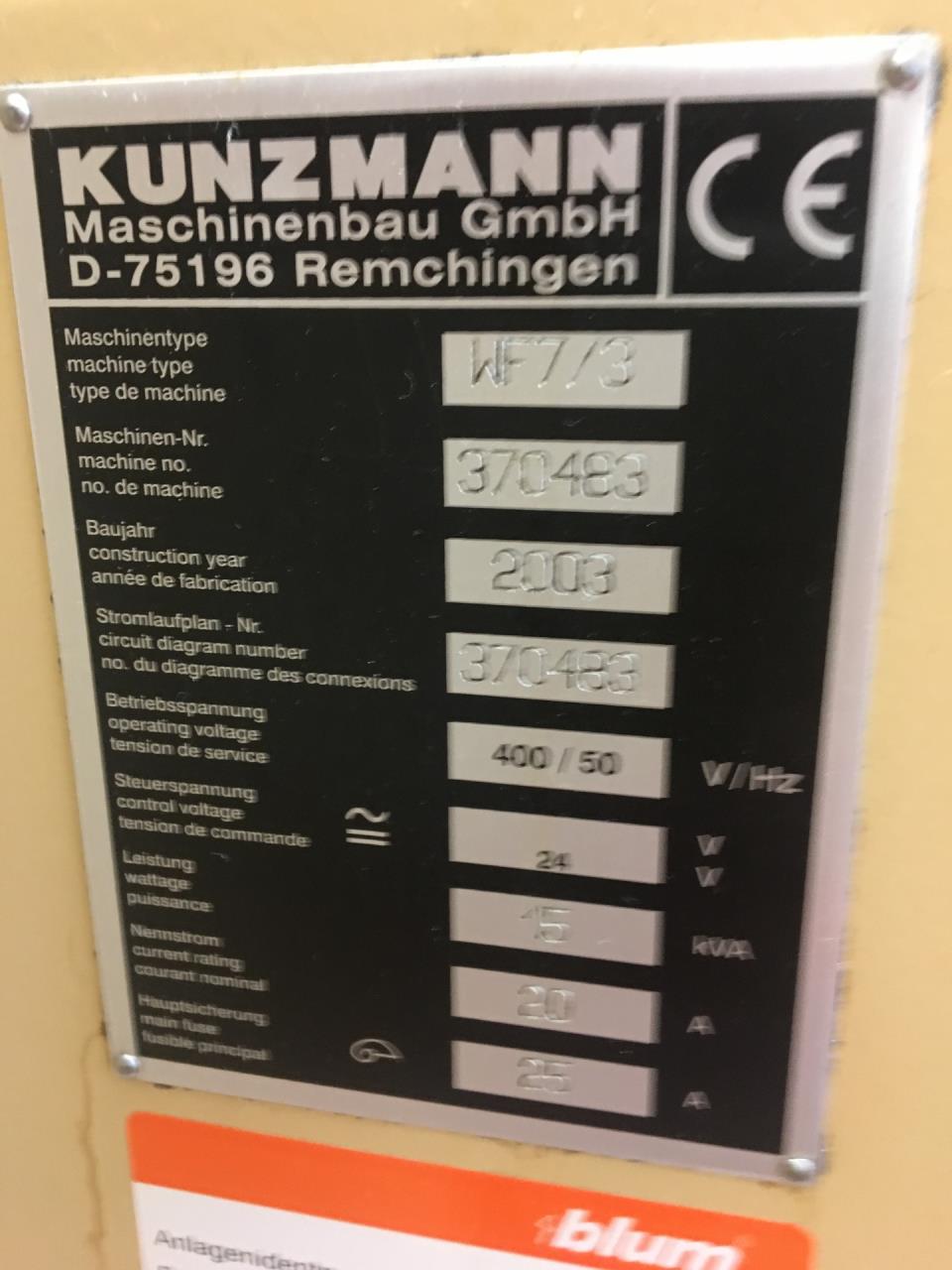

Type :
KUNZMANN WF 7/3

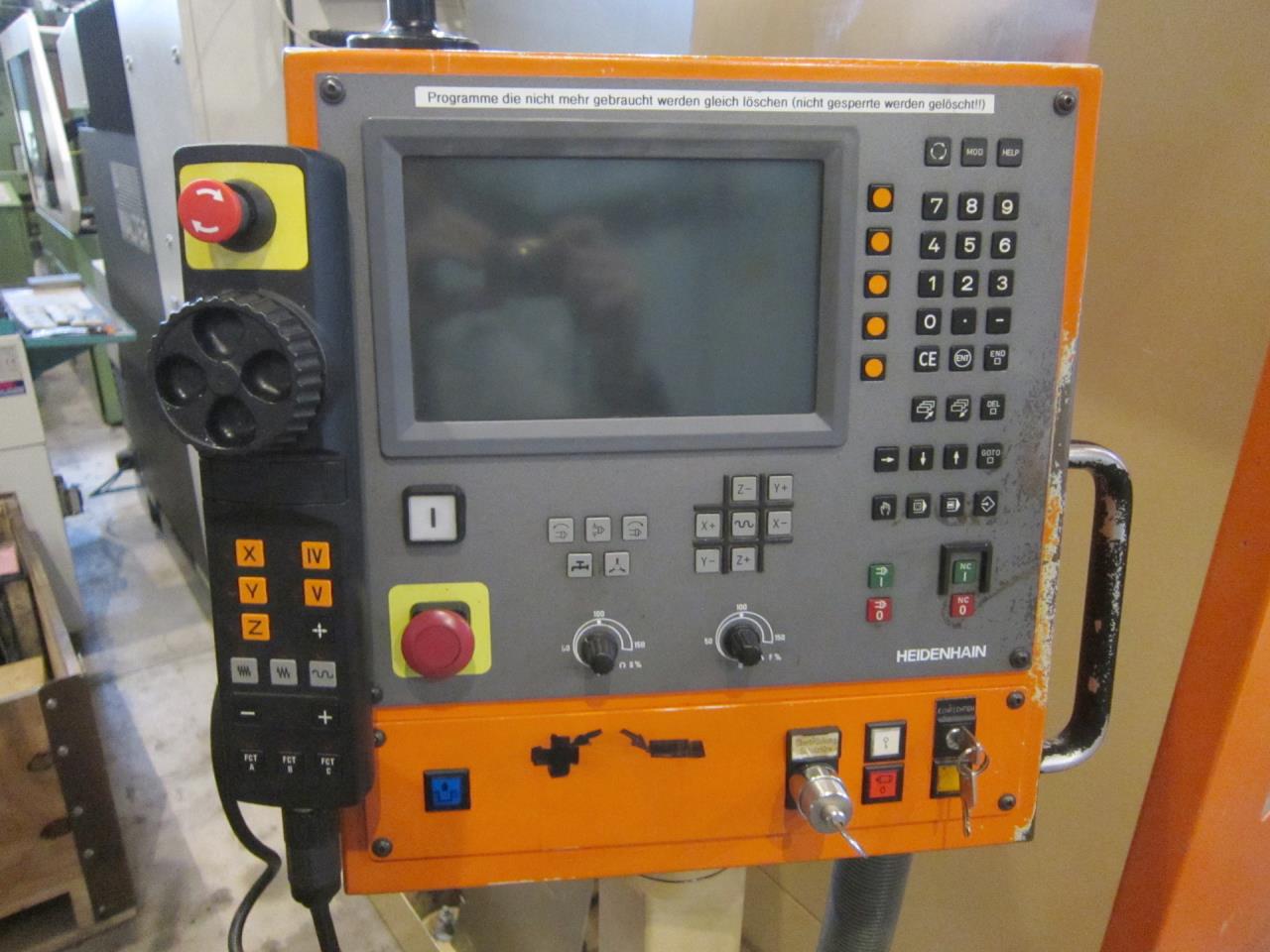

Controller :
HEIDENHAIN TNC 124
Jahrgang :
2003

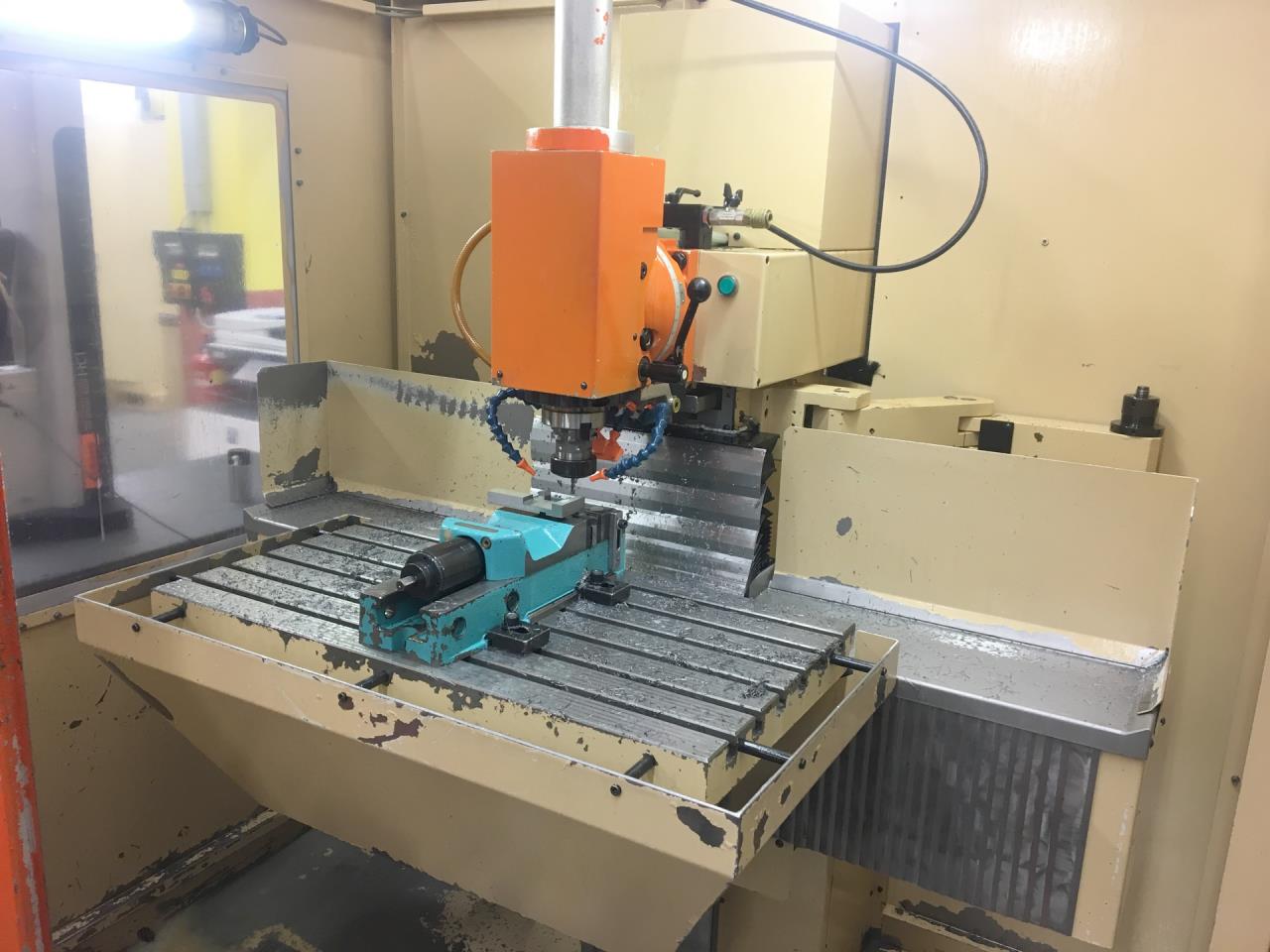

Technical data
Number of axis total
3
Table length
800 mm
Table width
425 mm
Longitudinal travel (X-axis)
600 mm
Transversal travel (y axis)
400 mm
Vertical travel (z axis)
400 mm
Table load max.
250 kg
Distance from vertical
spindle to table
560 mm
Taper in spindle:
40 SK
Spindle speeds:
stepless
horizontal from
5 rpm
up to
5000 rpm
vertical from
rpm
from
5 rpm
up to
5000 rpm
Swivel range Vertical milling head
+/- 90 °
Feeds:
stepless
longitudinal from
0 mm/min
up to
2000 mm/min
transversal from
0 mm/min
up to
2000 mm/min
vertical from
0 mm/min
up to
2000 mm/min
Rapid traverse: long.
10 m/min
Rapid traverse: transversal
10 m/min
Rapid traverse: vertical
7.5 m/min
Vertical quill travel
60 mm
Voltage 50 Hz 3x
400 Volt
Milling spindle motor
5.5 / 7 kW
Total power required
15 kVA
Machine's weight about
1800 kg
Overall dimensions machine:
Length
2100 mm
Width
1800 mm
Height
2050 mm
Various accessories:
Rigide table
Handwheel electroinic

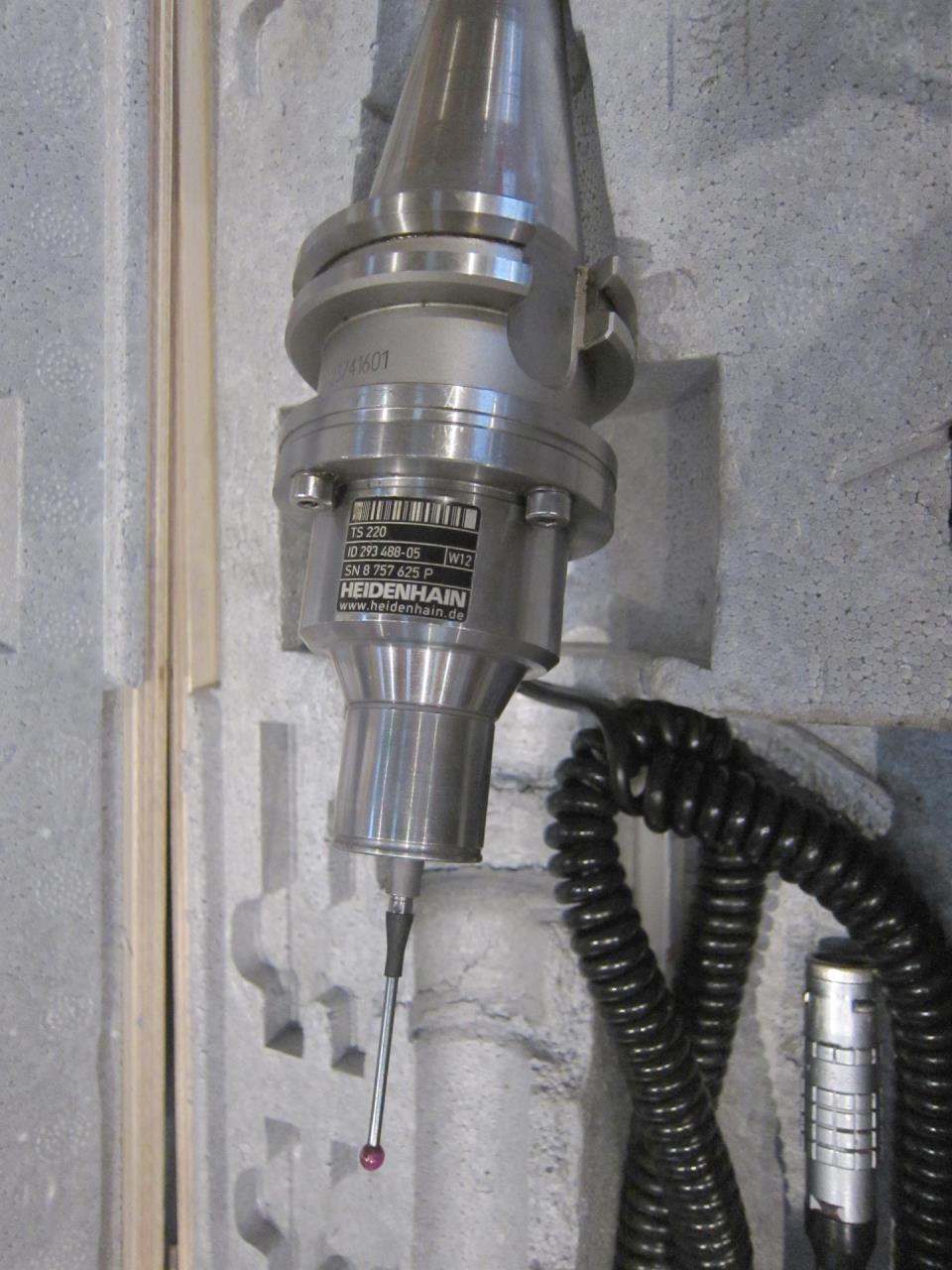

Measuring feeler gauge
HEIDENHAIN
Vertical milling head

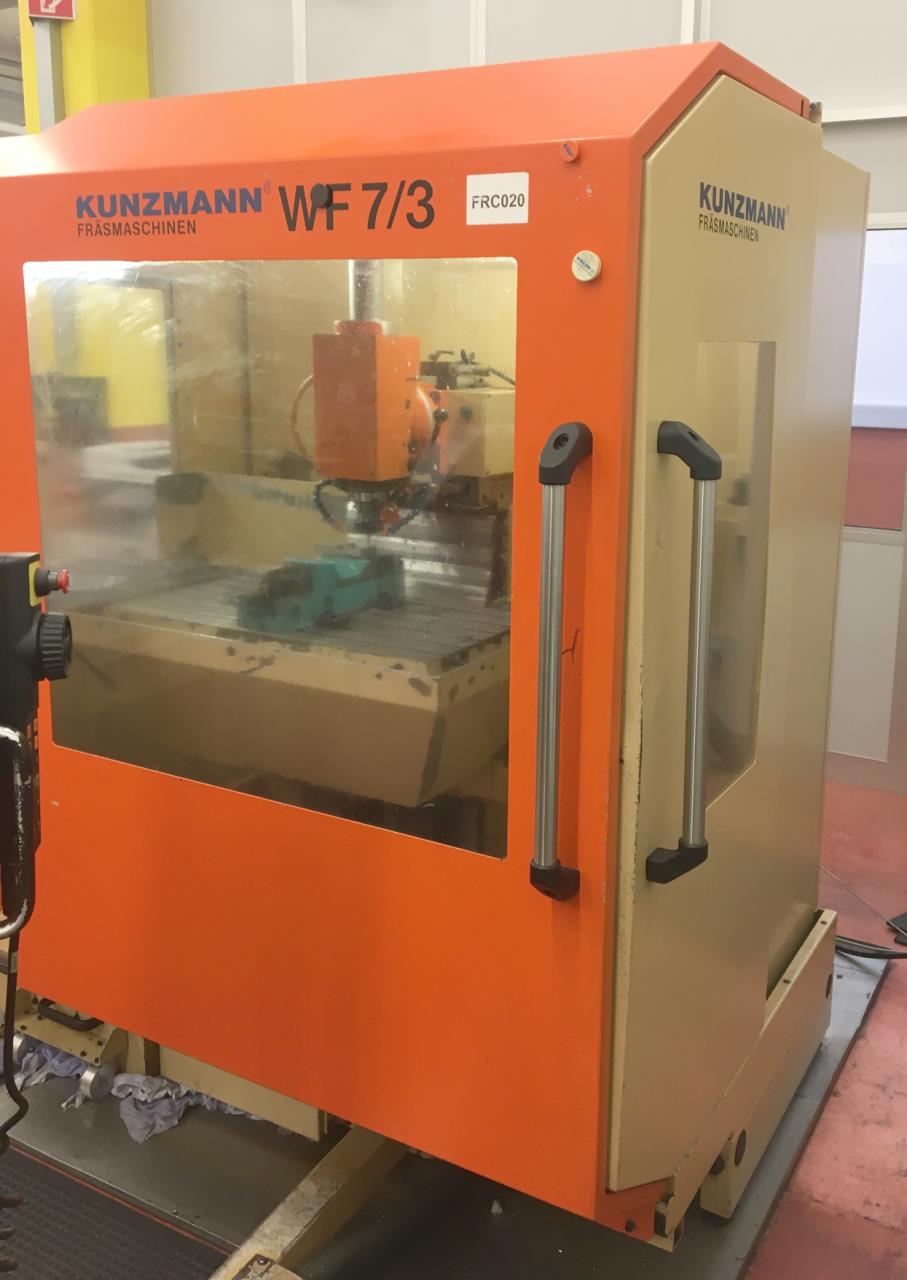

Full splash cabin
Coolant system
Machine lamp
Technical specifications and pictures without guarantee.
