stock no. :
19561
Machine's group :
Type :
DMG DMU 60 P hy-din
Controller :
HEIDENHAIN MillPlus /3R-WorkMaster +3R-WorkShopManager
Jahrgang :
2001
Technical data
Number of axis simultaneous
5
Number of tables
1
Number of spindles
1
Circulary table diameter
630 mm
Number of T-channels
9
Distance of the T-slots
63 mm
T-channel width
14H7 mm
Centering bore diameter
50H6 mm
Longitudinal travel (X-axis)
600 mm
Transversal travel (y-axis)
700 mm
Vertical travel (z axis)
600 mm
Dimension of the workpice:
Height
1000 mm
Diameter
920 mm
Table load max.
500 kg
Table divisions (B)
360 °
A axis
Swivel angle (a-axis)
+45/-30 °
Holding torque A-axis
3866 Nm
Clamping torque C-axis
6008 Nm
Torque max.
2650 Nm
Tool changer:
Number of tools
180
Tool diameter
80 mm
Diameter with free adjacent pockets
160 mm
Tool lenght
350 mm
Max. tool-weight
10 kg
Spindle nose SK
40 DIN 69871
Spindle speeds:
stepless
up to
18000 rpm
Feeds:
stepless
longitudinal from
20 mm/min
up to
15000 mm/min
transversal from
20 mm/min
up to
15000 mm/min
vertical from
20 mm/min
up to
15000 mm/min
Rapid traverse:
40 m/min
Measurement system:
Resolution
0.001 µm
Air connect
5 - 8 bar
Voltage 50 Hz 3x
400 Volt
Total power required
44 kVA
Noise level
80 dB (A)
Machine's weight about
7500 kg

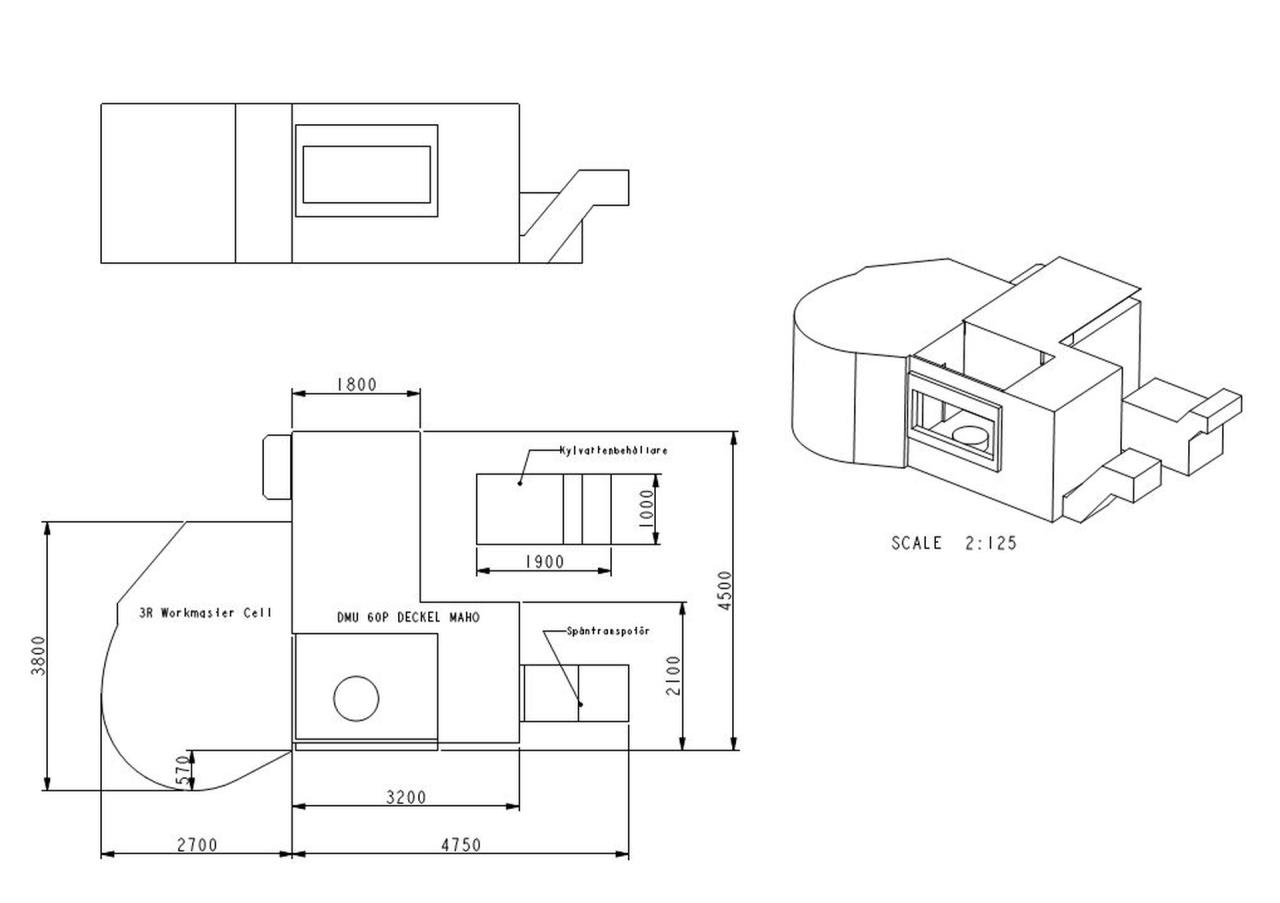

Overall dimensions machine:
Length
7500 mm
Width
4500 mm
Height
2628 mm

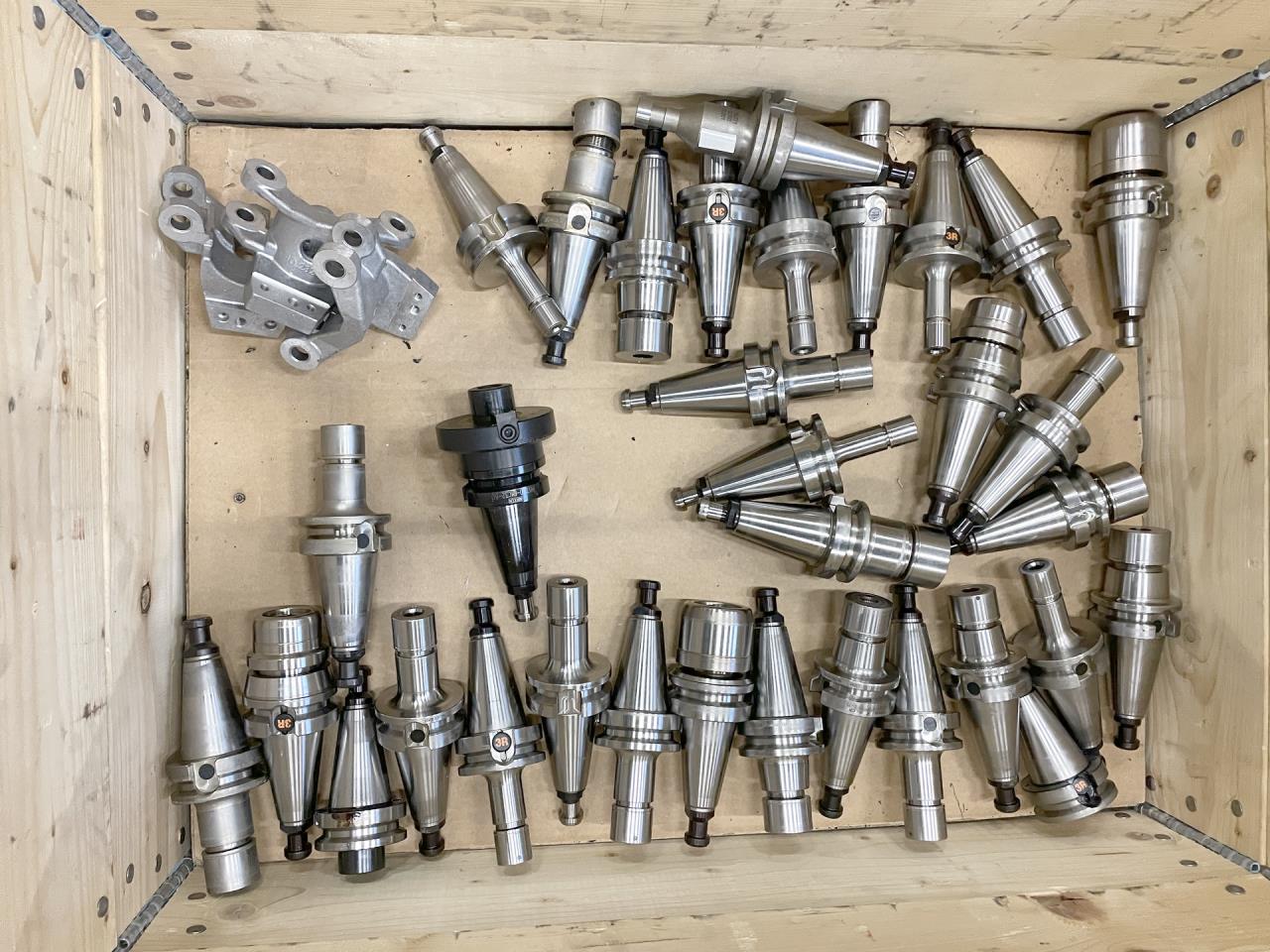

Various accessories:
Set of toolholders
SK 40 ca 150x
High pression colant device
40 bar
Coolant through spindle (cts)
Tool setter Renishaw
Lamp
Rotating viewing window

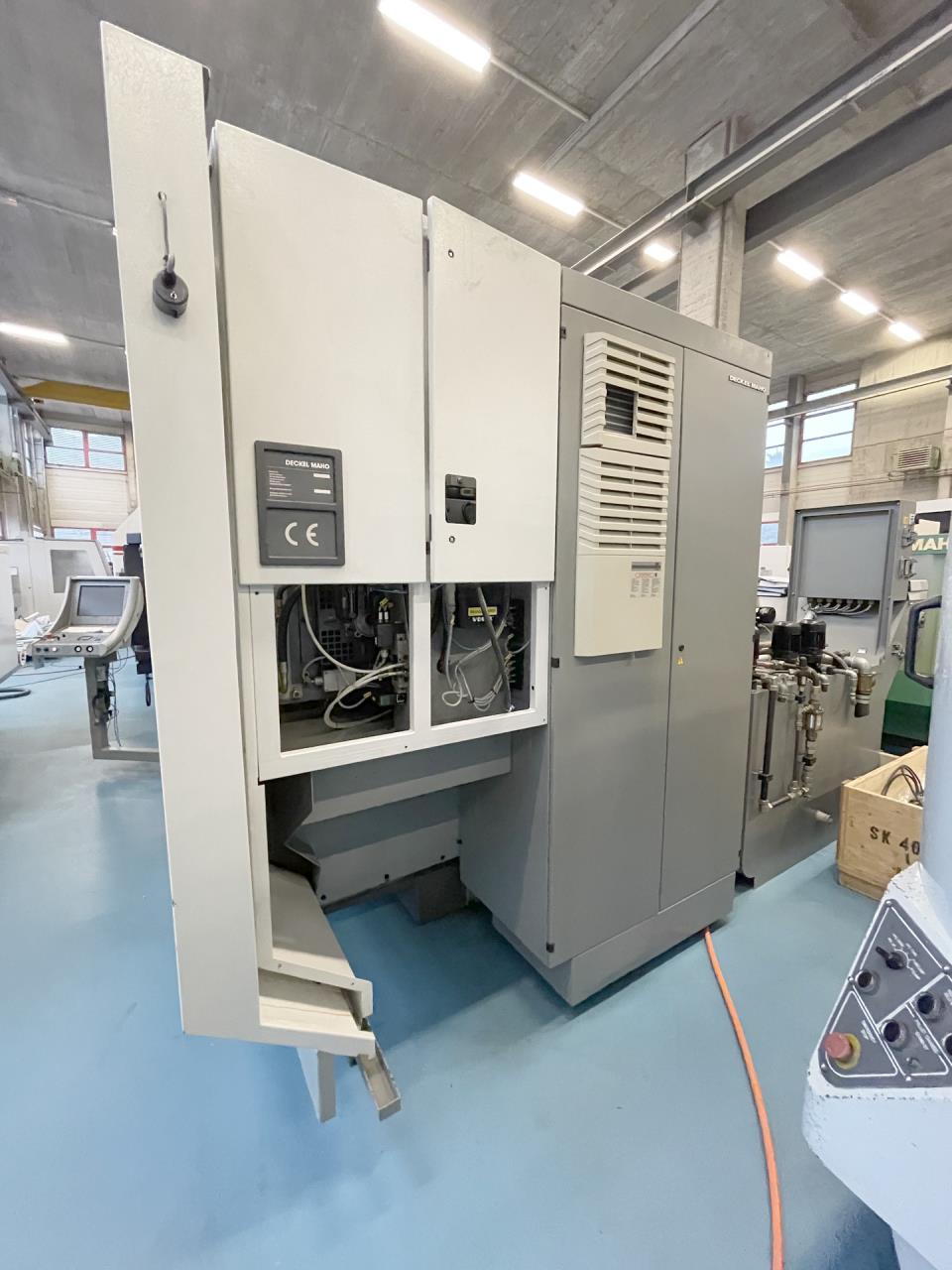

Switch cabinet Air conditioner
Technical specifications and pictures without guarantee.
