stock no. :
19144
Machine's group :
Type :
DÖRRIES SCHARMANN Solon 3 HV/DTV

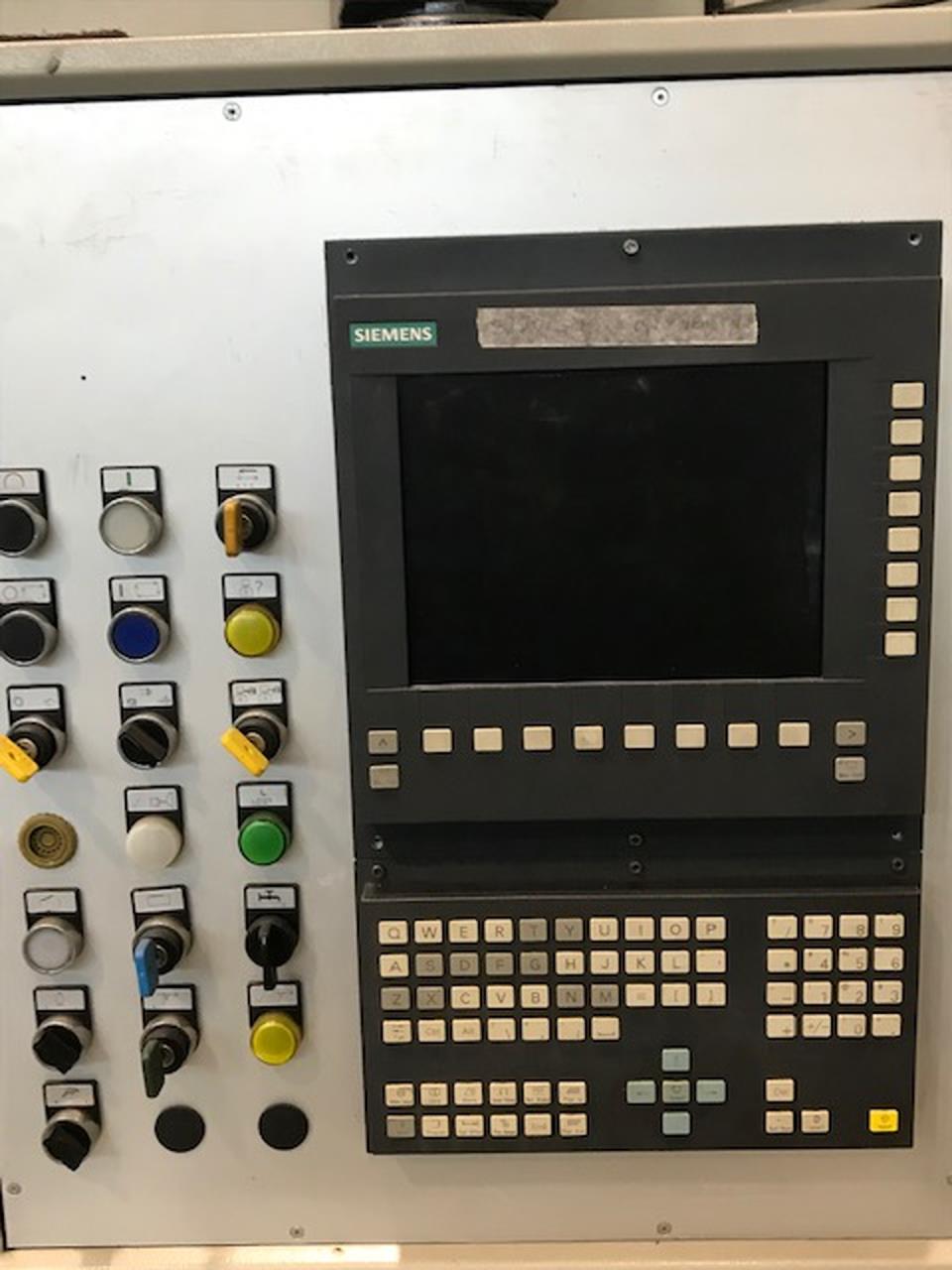

Controller :
SIEMENS SINUMERIK 840 D
Technical data
Number of axis total
5
Longitudinal travel (X-axis)
1500 mm
Transversal travel (y-axis)
1200 mm
Vertical travel (z axis)
1250 mm
Table divisions (B)
360x0.0001 °
A axis
Table speeds:
up to
1 - 500 rpm
numbers
2
Length
1000 mm
Width
1000 mm
Transport weight
2000 kg

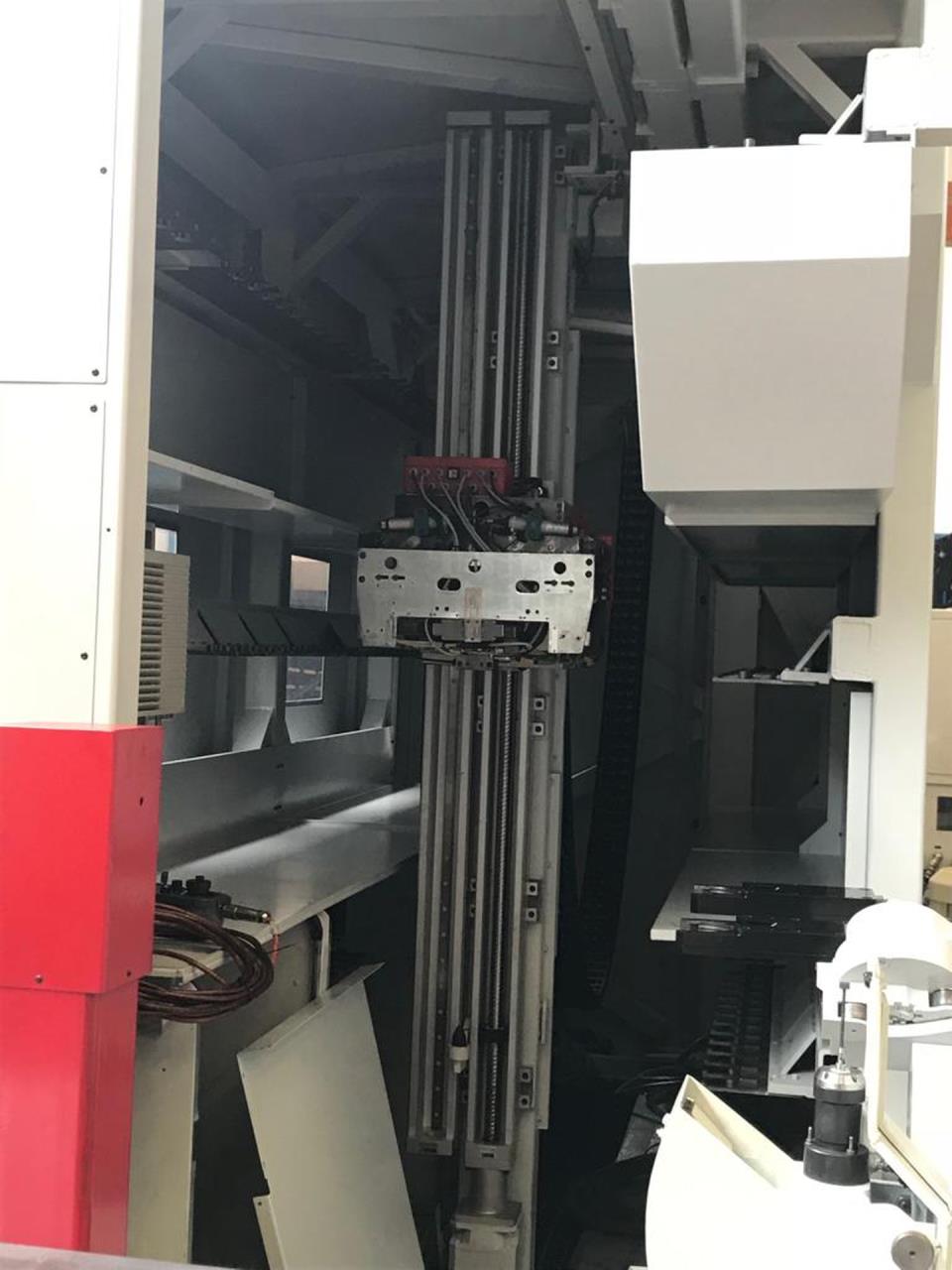

Tool changer:
Number of tools
161
Tool diameter
300 mm
Max. tool-weight
25 kg
Spindle nose:
HSK-A 100
Spindle speeds:
stepless
from
10 rpm
up to
4000 rpm
Voltage 50 Hz 3x
400 Volt
Spindle motor
40 kW
Total power required
180 kW
Machine's weight about
6000 kg

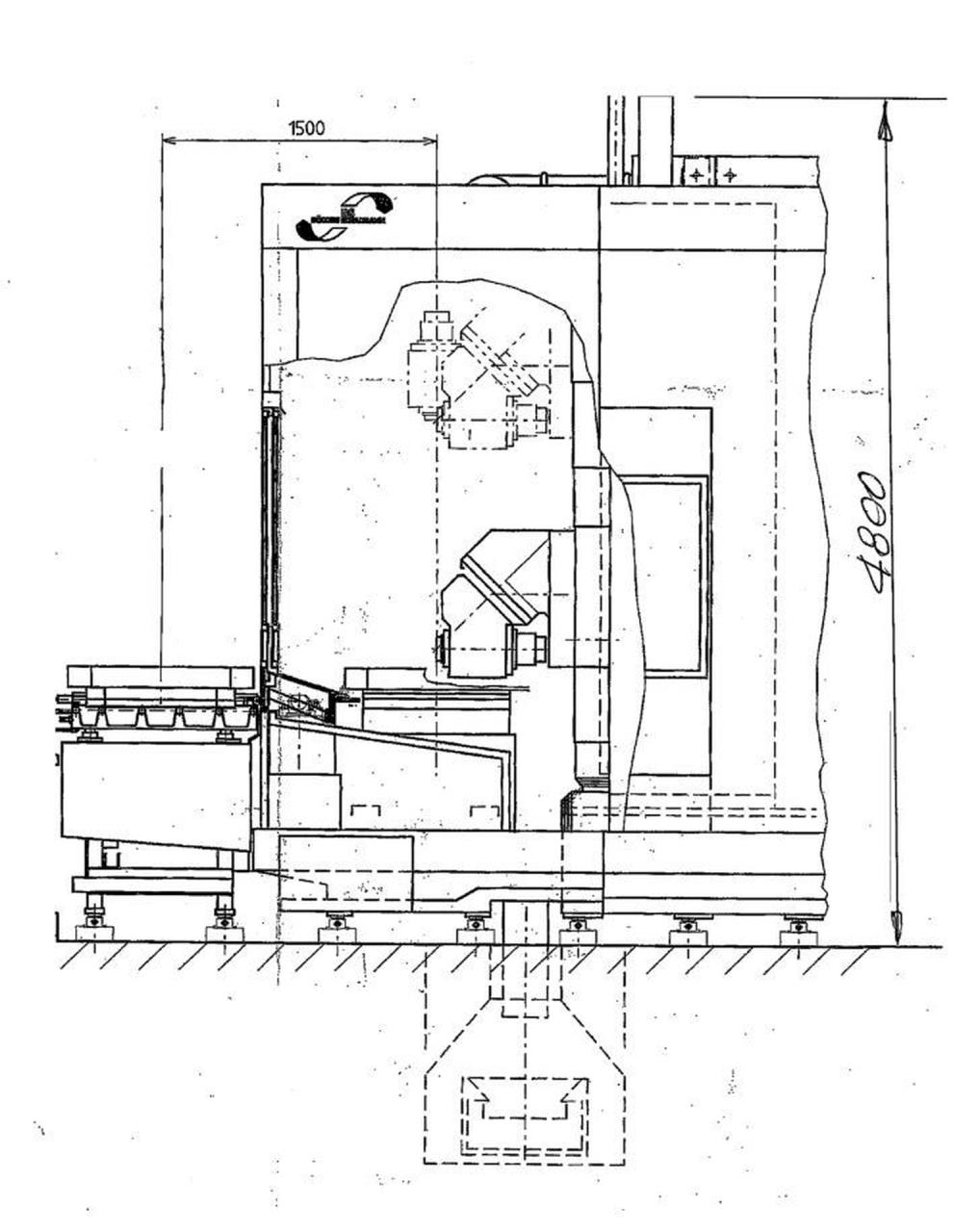

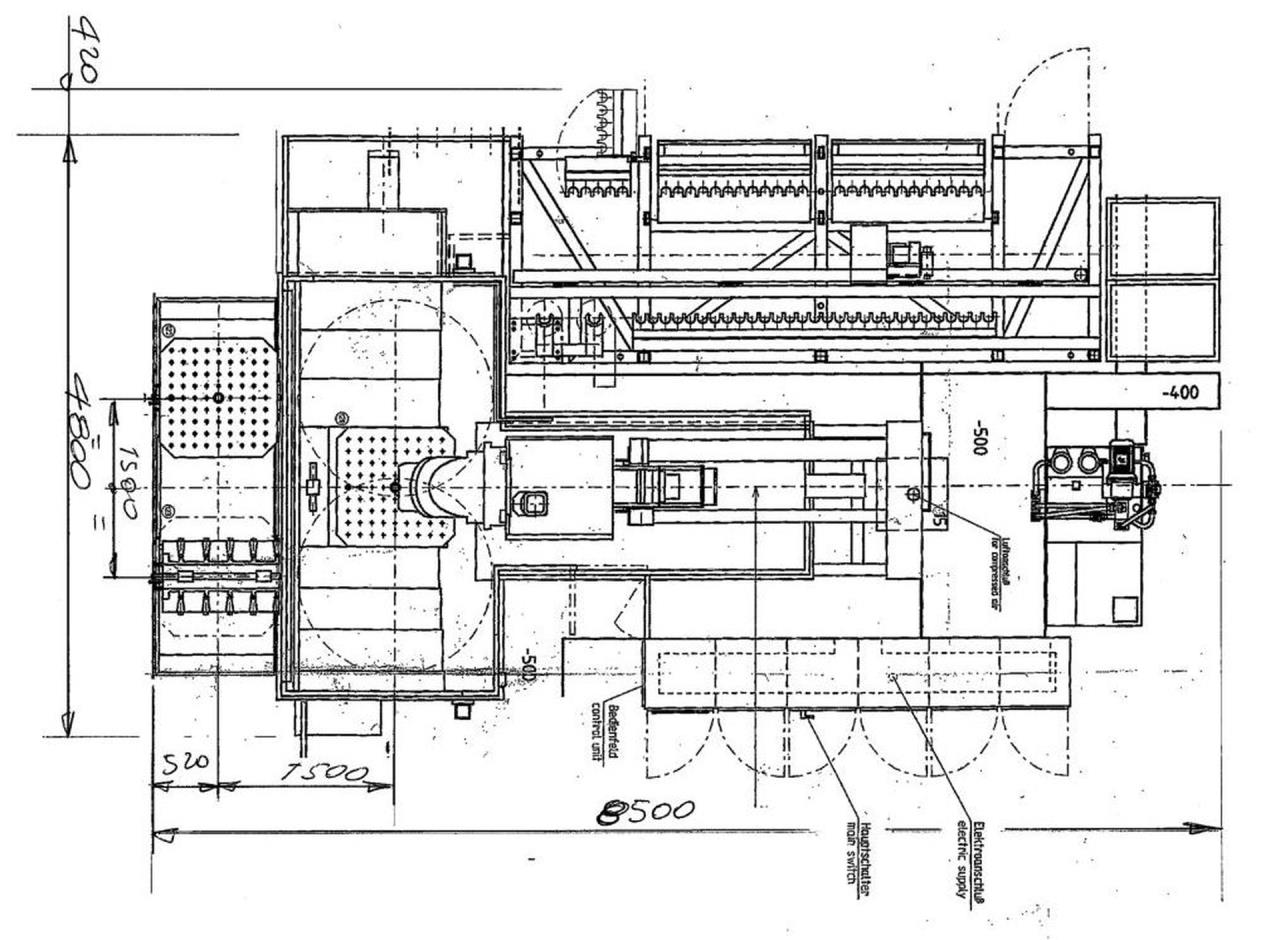

Overall dimensions machine:
Length
8500 mm
Width
4800 mm
Height
4800 mm
Various accessories:
Full splash cabin
Coolant system
Process controling device
Chip conveyor

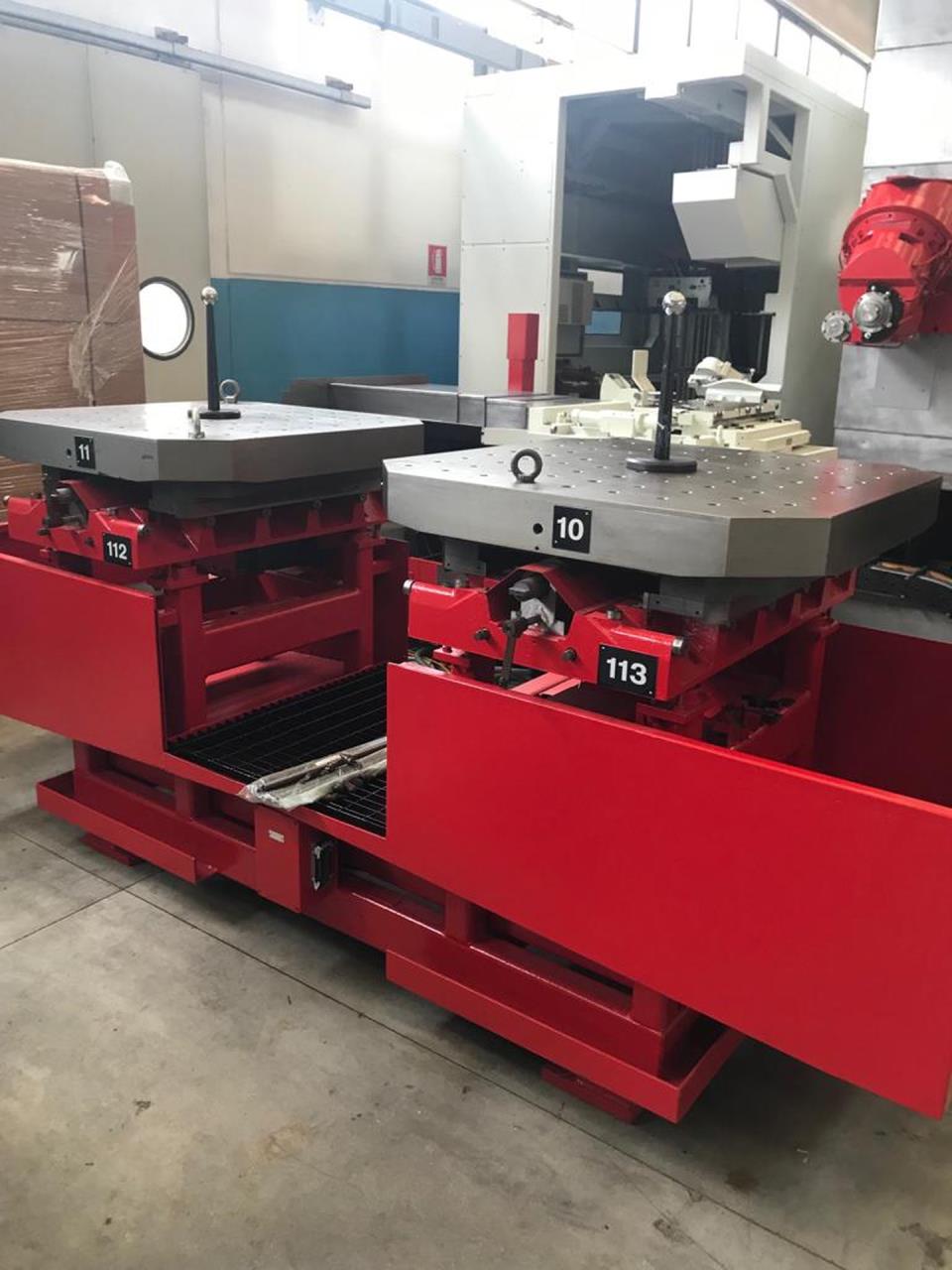

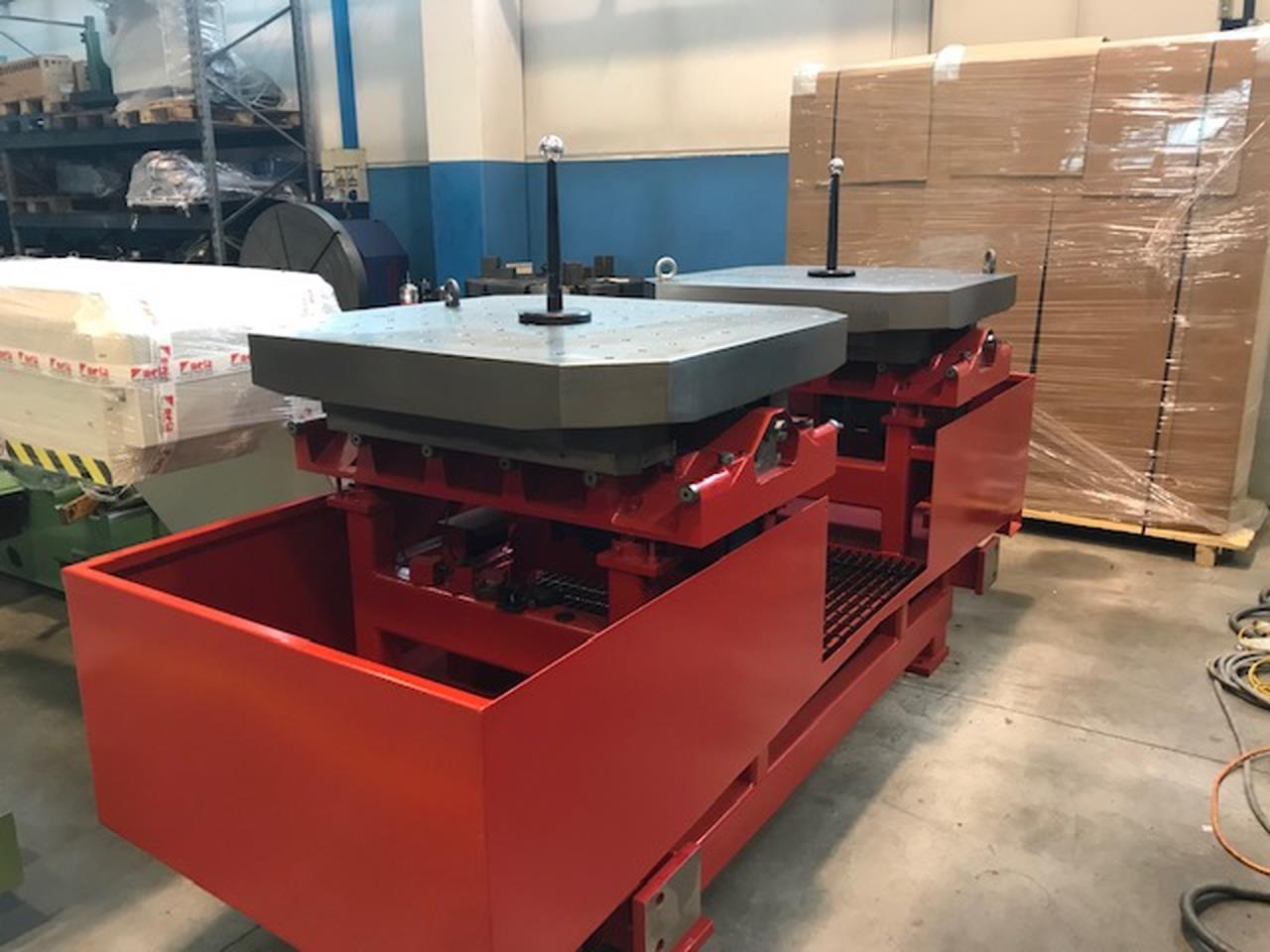

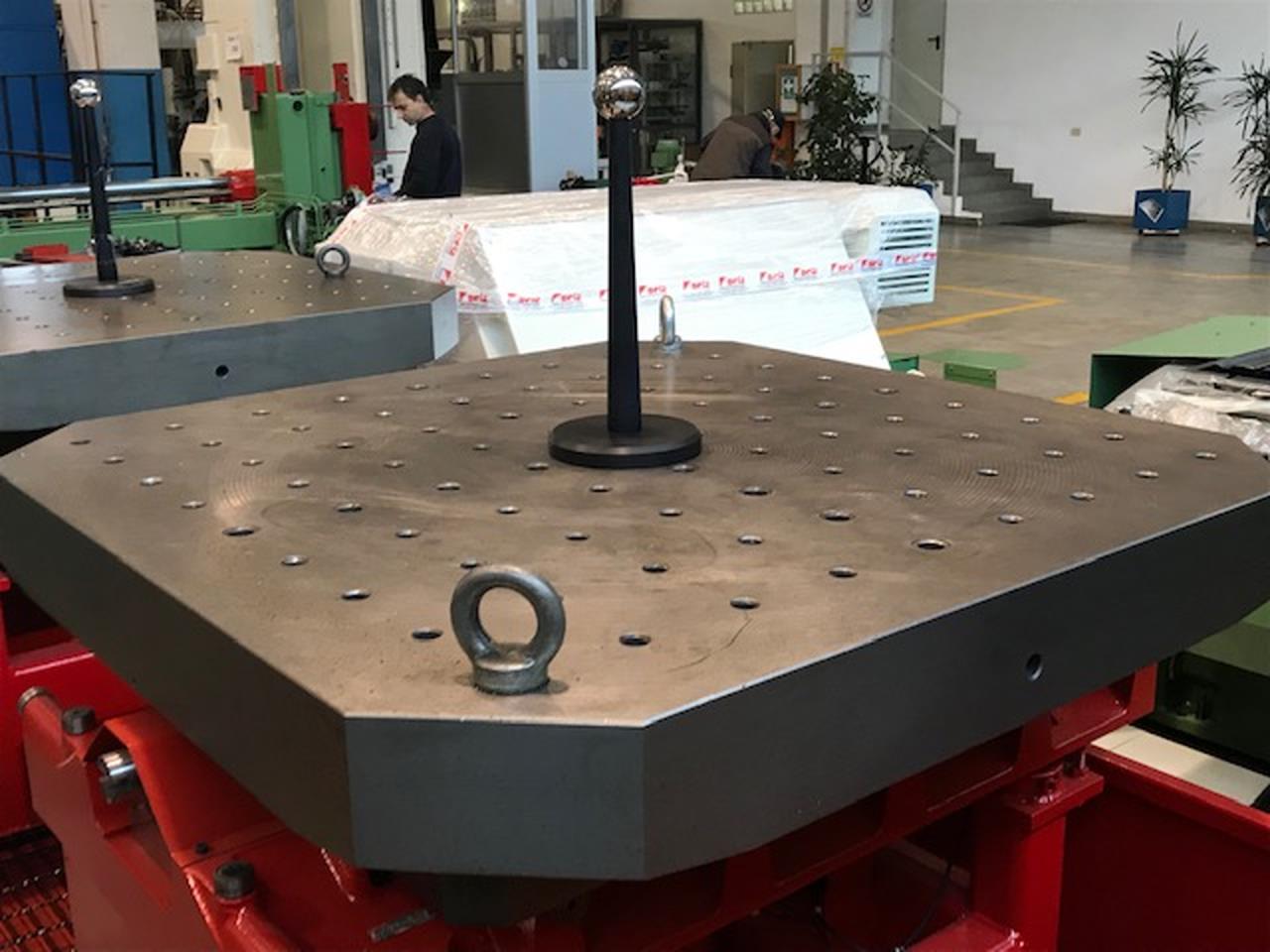

Pallets: number
4
Set of toolholders
Technical specifications and pictures without guarantee.
