Technical data
Table length
600 mm
Table width
200 mm
Longitudinal travel (X-axis)
600 mm
Cross travel (z-axis)
280 mm
vertical travel (Y-axis)
370 mm
Max. distance from table
to spindle centreline
500 mm
Table load max.
150 kg
Grinding wheel:
Diameter
300 mm
Width
32 mm
Bore
76.2 mm

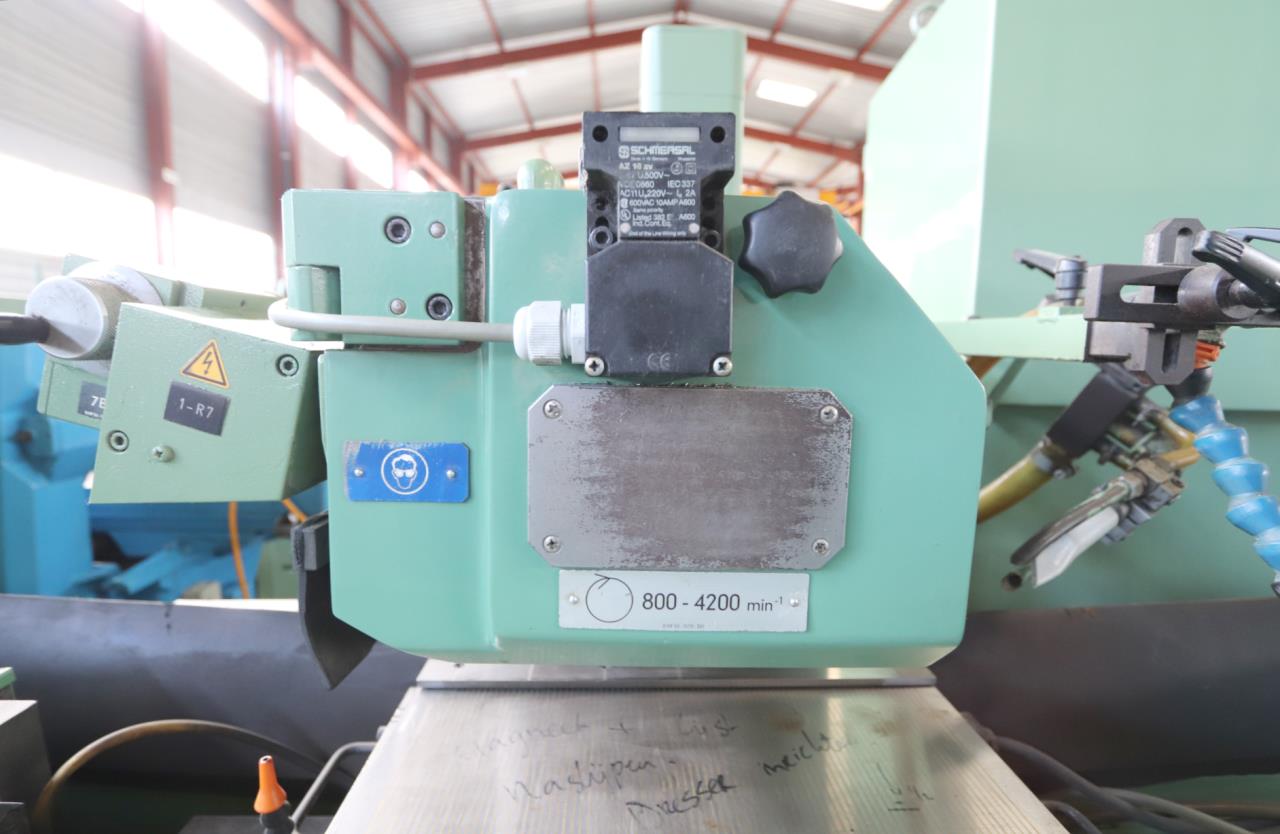

Grinding wheel speeds:
from
800 rpm
up to
4200 rpm
Table speeds:
stepless
from
1 m/min
up to
24 m/min
Voltage 50 Hz 3x
400 Volt
Grinding spindle motor
10 kW
Total power required
12 kVA
Machine's weight about
2300 kg
Overall dimensions machine:
Length
2270 mm
Width
1500 mm
Height
1850 mm
Various accessories:
Coolant system

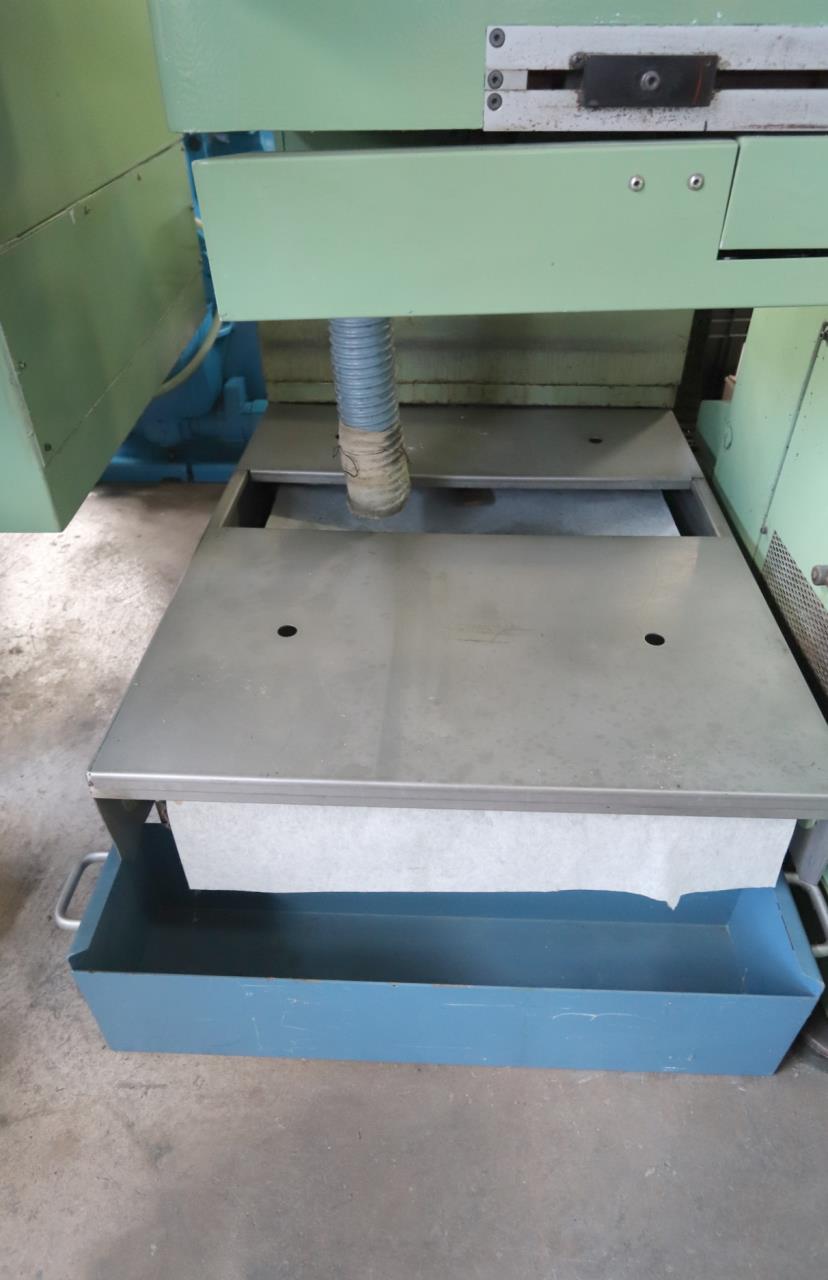

Paper filtration system

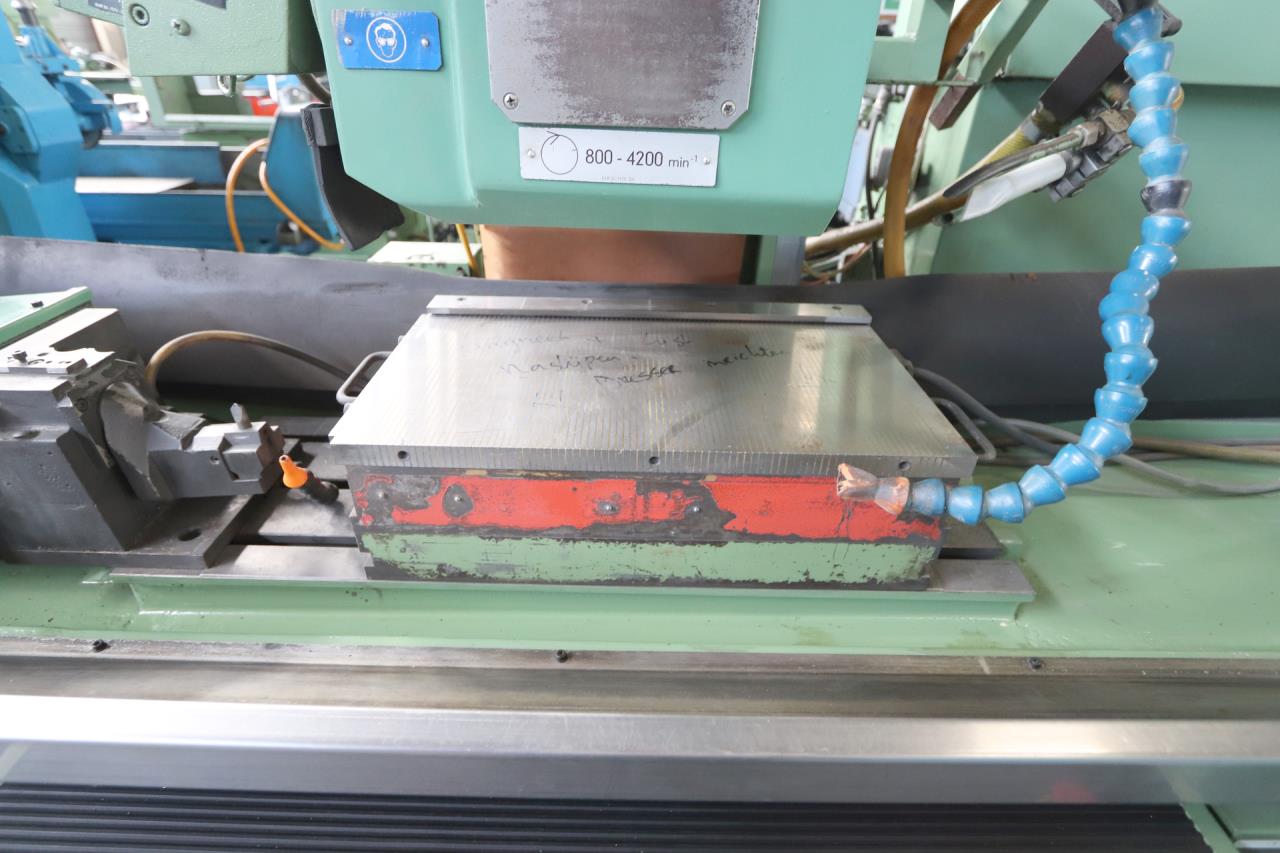

Electrical magnetic chuck
Length
450 mm
Width
240 mm
Redressing device

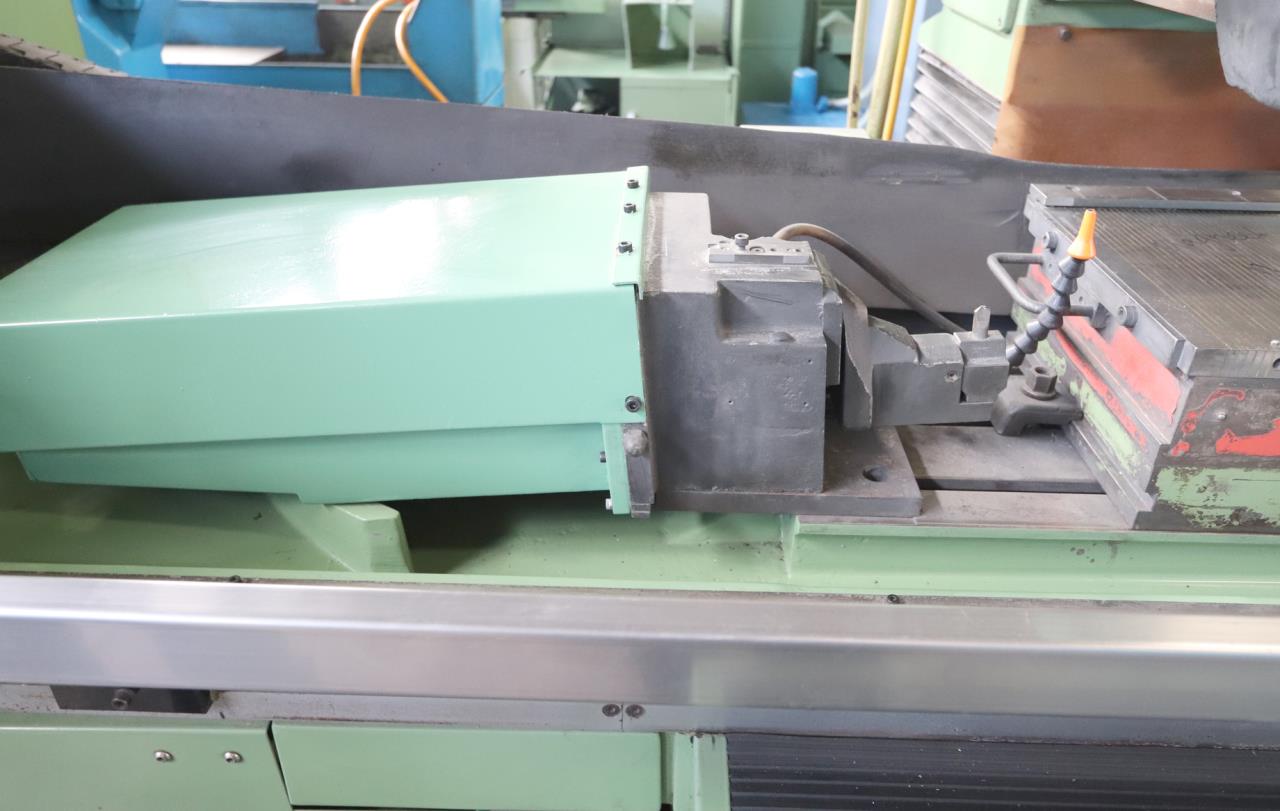

Wheel dresser on CNC table

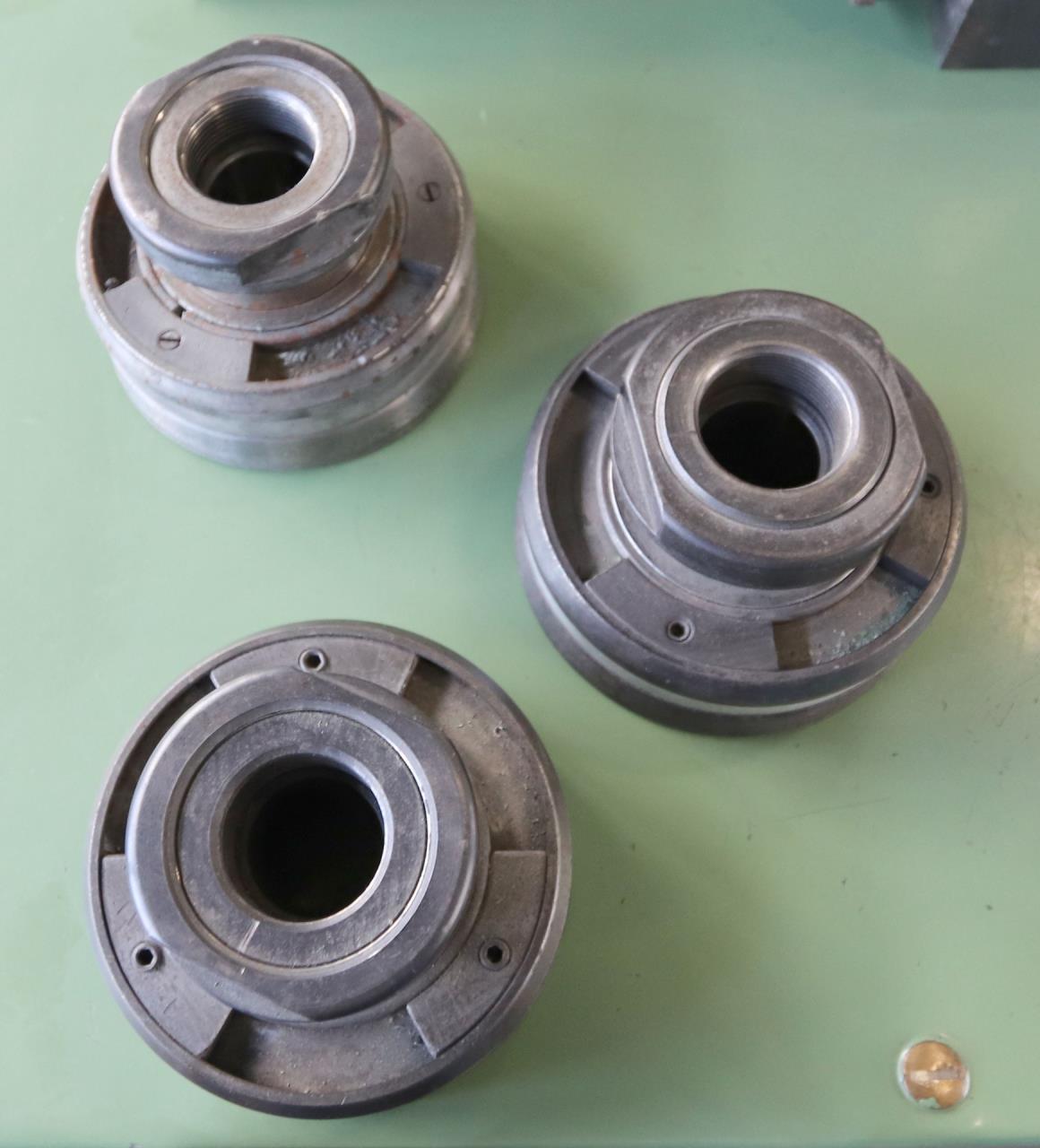

Set of flanges
Splash guard

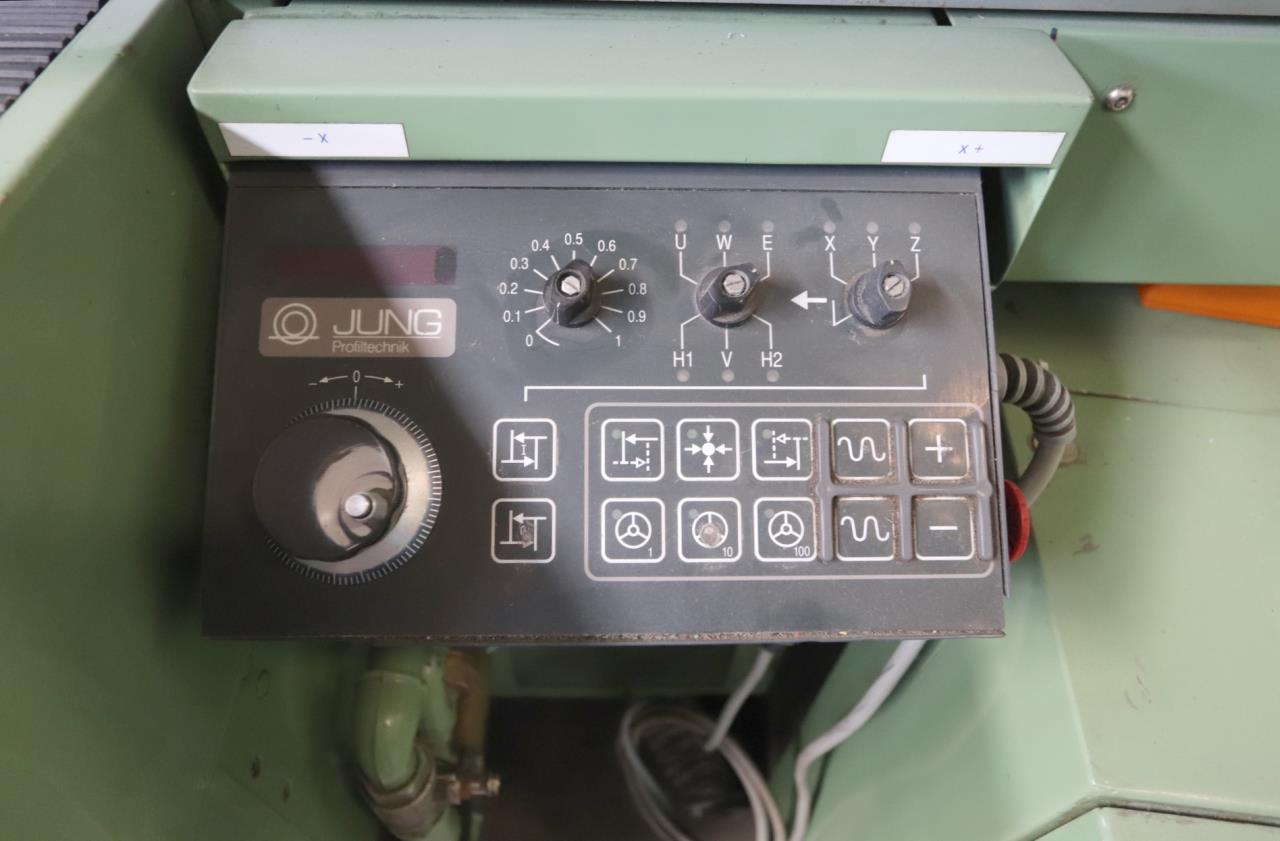

Electronic hand held control
Technical specifications and pictures without guarantee.
