Technical data

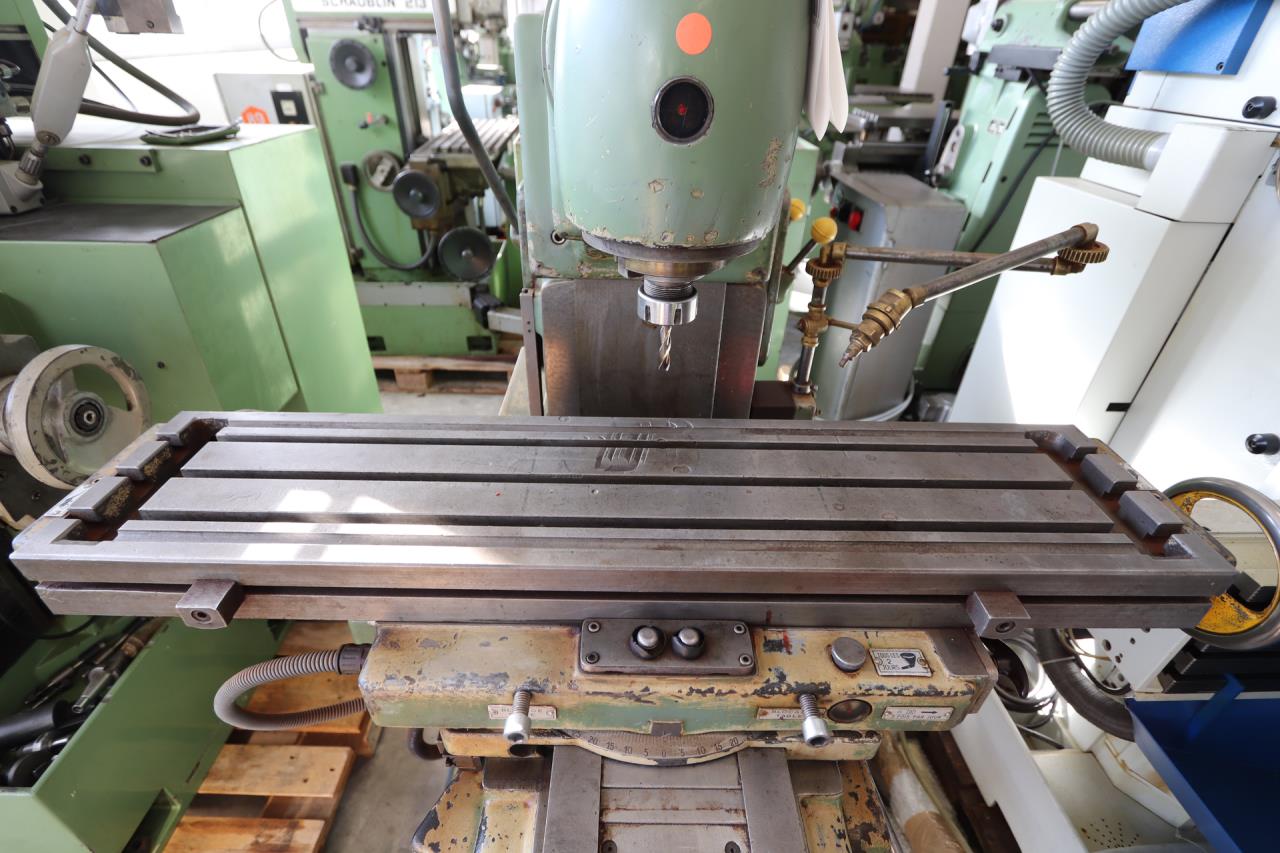

Table length
900 mm
Table width
200 mm
Longitudinal travel (X-axis)
500 mm
Transversal travel (y axis)
200 mm
Vertical travel (z axis)
350 mm
Spindle speeds:
number (steps)
8
from
45 rpm
up to
1500 rpm
Feeds steps:
8
longitudinal from
16 mm/min
up to
384 mm/min
transversal from
16 mm/min
up to
384 mm/min
vertical from
8 mm/min
up to
192 mm/min
Rapid traverse:
longitudinal
1.5 m/min
transversal
1.5 m/min
vertical
0.750 m/min
Voltage 50 Hz 3x
380 Volt
Motor output
2 HP
Technical specifications and pictures without guarantee.
