Technical data
Cut range: round up to
340 mm
Square
340 x 340 mm
Execution:
Horizontal
hydraulic
Cutting speed:
stepless
from
15 m/min
up to
100 m/min

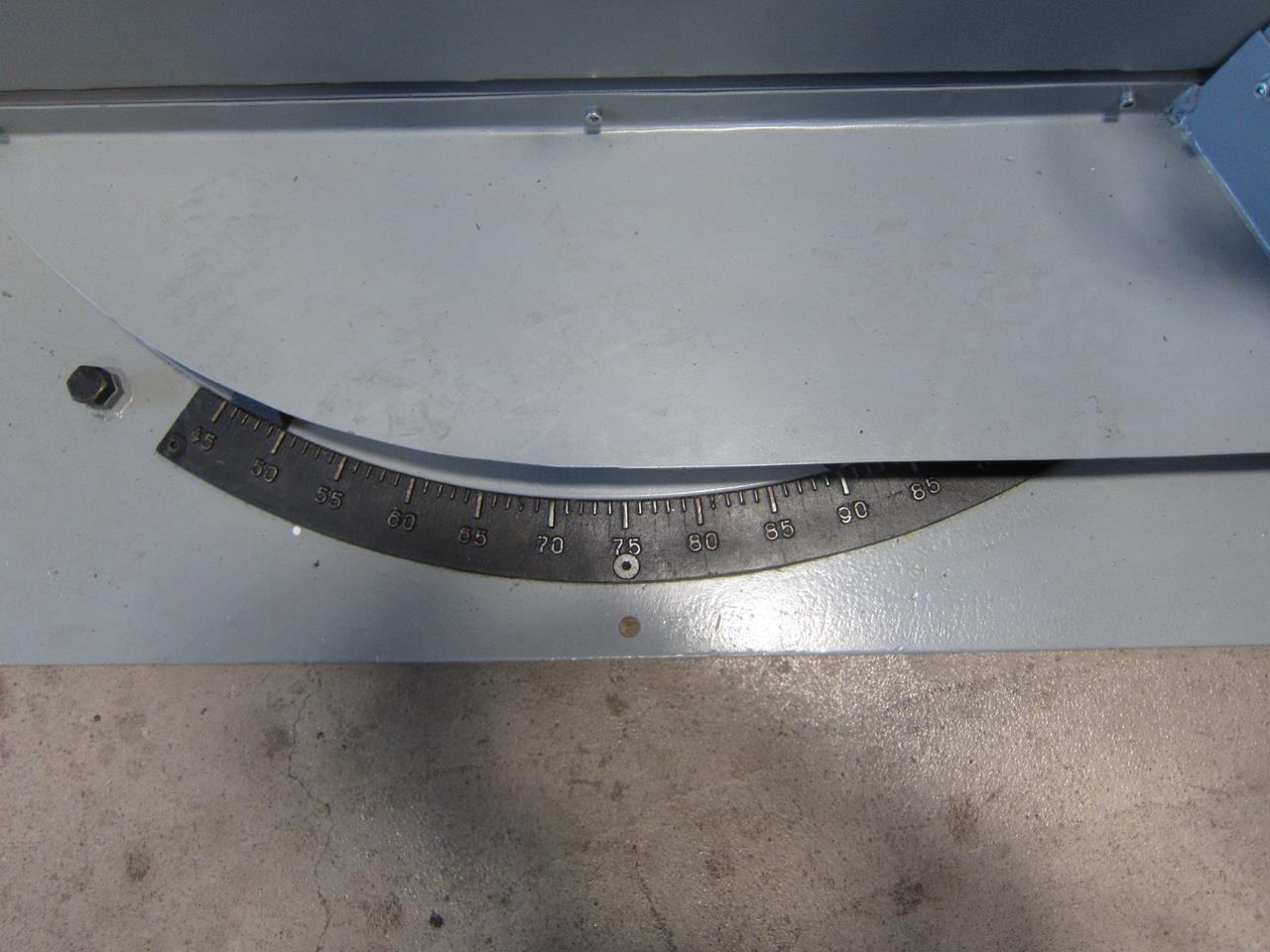

Miter cuts:
Table inclination right side
+45 °
Table incline left
-45 °
Band length
4860 mm
Band width
32 mm
Sheet thickness
1.1 mm
Voltage 50 Hz 3x
400 Volt
Overall dimensions machine:
Length
3100 mm
Width
1100 mm
Height
1700 mm
Various accessories:
Hydraulic vice
mm
Coolant system
Chip conveyor
Technical specifications and pictures without guarantee.
