Technical data
Work-piece diameter
5 - 50 mm
Max. work-piece height
1 - 70 mm
Arrangement:
bilateral (above, below)

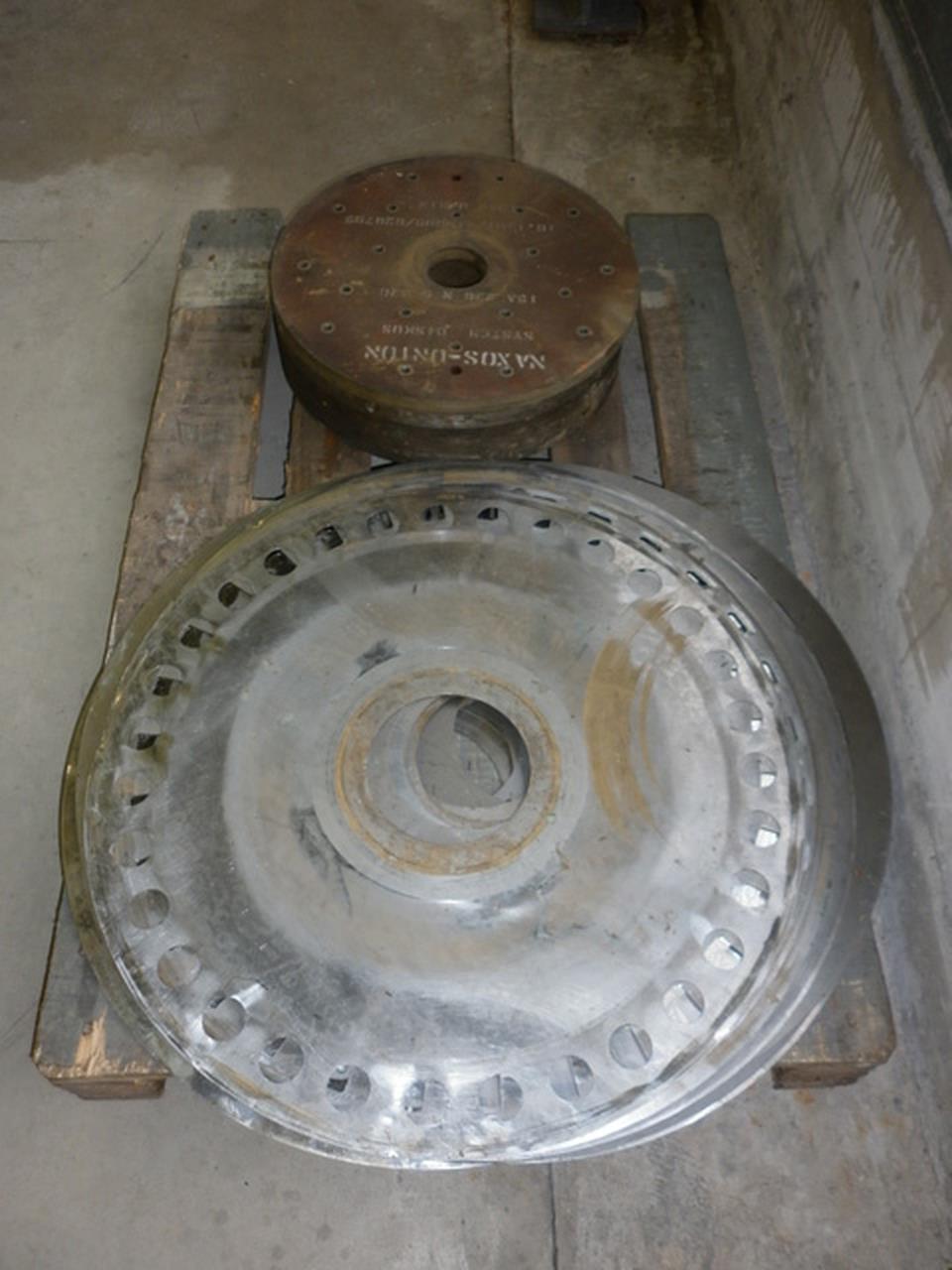

Grinding wheel:
outside diameter
457 mm
inside diameter
76.2 mm
Width / height
75 mm
Grinding wheel speeds:
from
251 rpm
up to
1254 rpm
from
6 - 30 m/s
Speed of the work-piece
driving plate:
from
21.8 rpm
up to
215 rpm
Voltage
380 Volt
Grinding motor power
2 x 30 kW
Total installed power
35 kW
Machine's weight about
4000 kg
Overall dimensions machine:
Length
2450 mm
Width
1100 mm
Height
2700 mm
Various accessories:
Measuring instrument
IONIC
Technical specifications and pictures without guarantee.
