Technical data
Table length
660 mm
Table width
519 mm

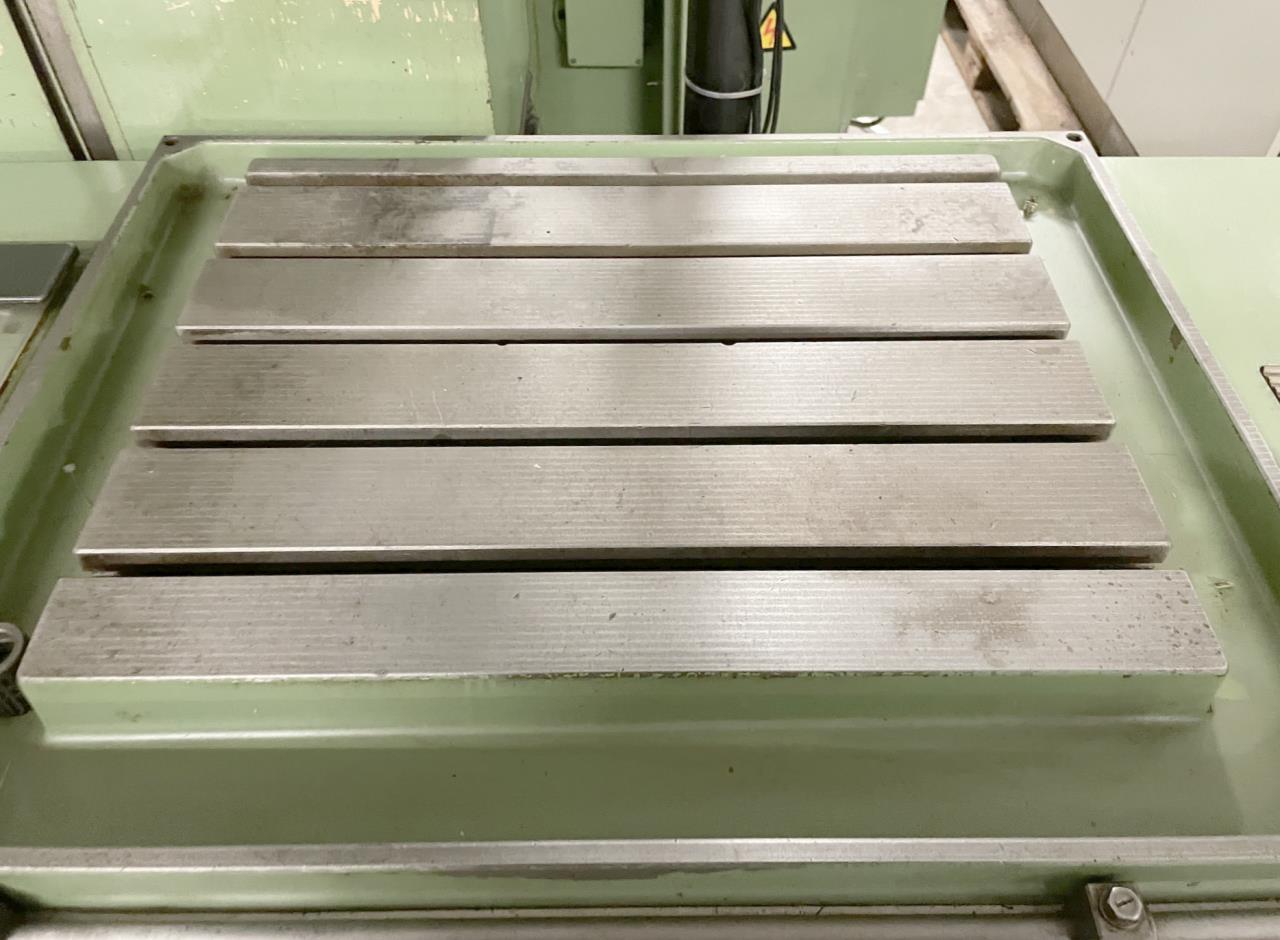

Clamping surface:
Length
520 mm
Width
410 mm
T-channel width
14H8 mm
Drill capacity in steel
23 mm
Depth of throat
365 mm
Drill depth (spindle stroke)
120 mm
Table travels:
Longitudinal travel (X-axis)
400 mm
Transversal travel (y-axis)
285 mm

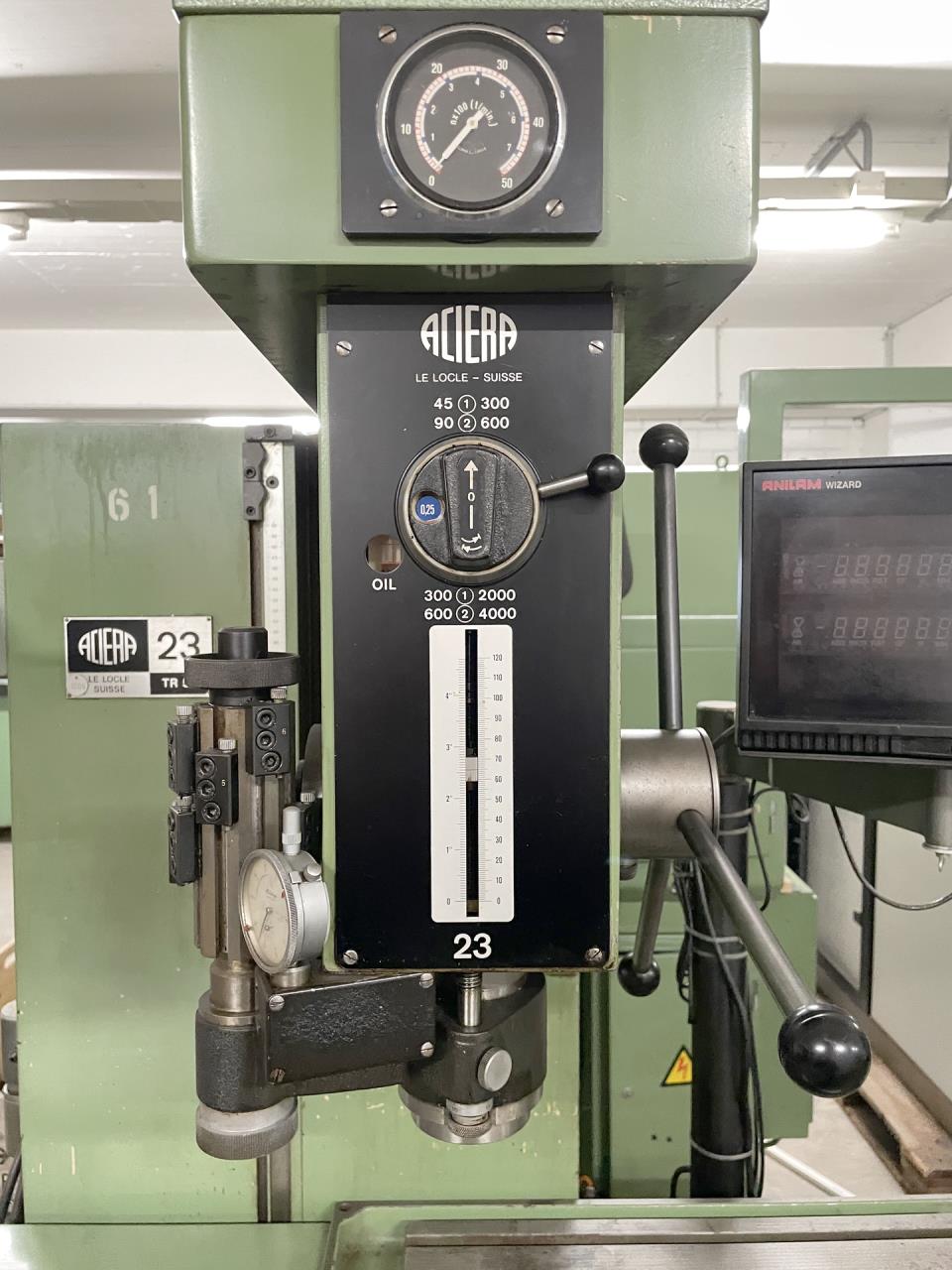

Spindle speeds:
number (steps)
8
from
45 rpm
up to
4000 rpm
Feeds:
number (steps)
6
from
0.06 mm/r
up to
1.2 mm/r
Voltage 50 Hz 3x
380 Volt
Total power required
5 HP
Machine's weight about
1500 kg
Overall dimensions machine:
Length
1600 mm
Width
1200 mm
Height
2000 mm
Various accessories:

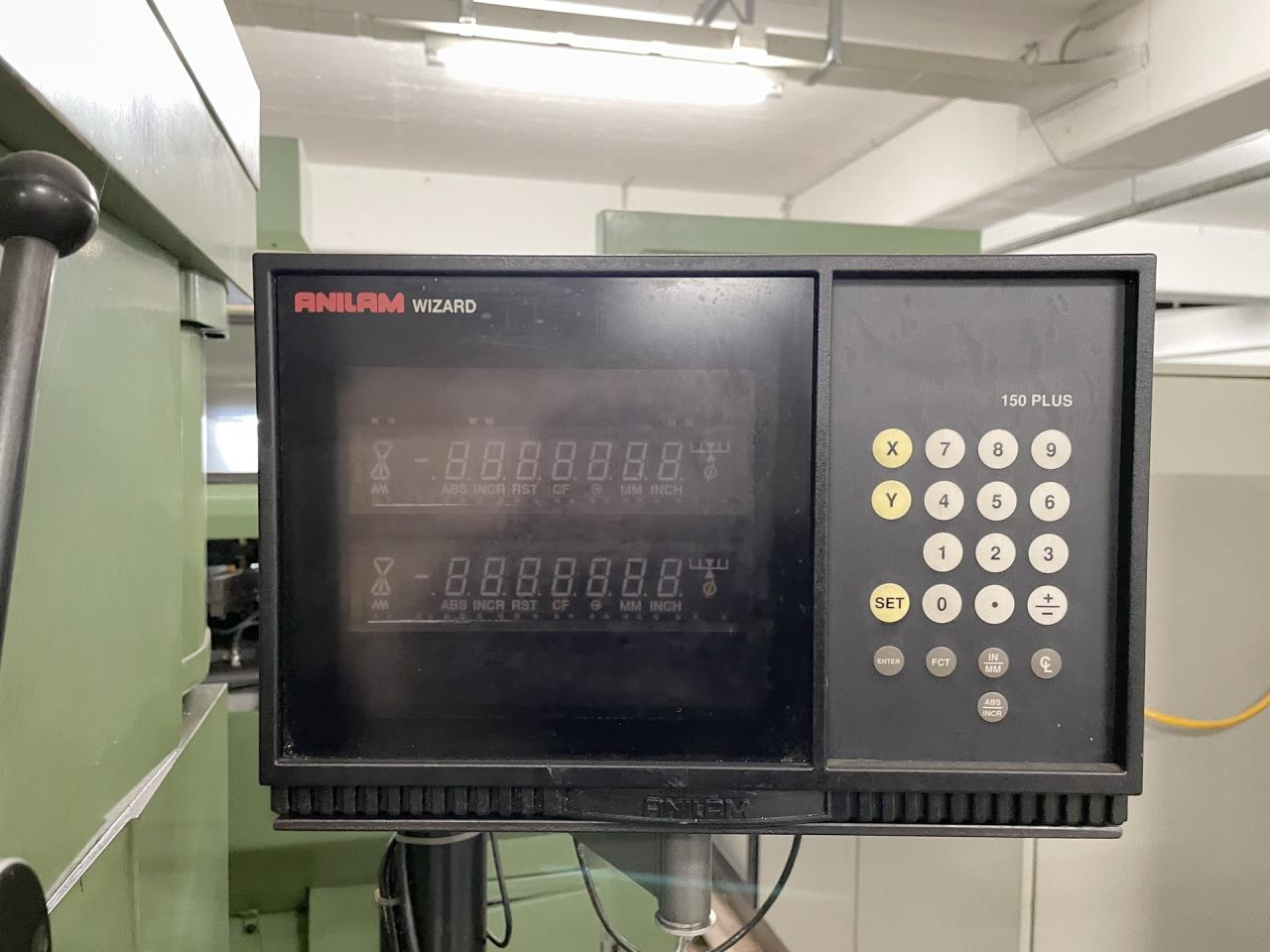

Digital readout number of axis:
2

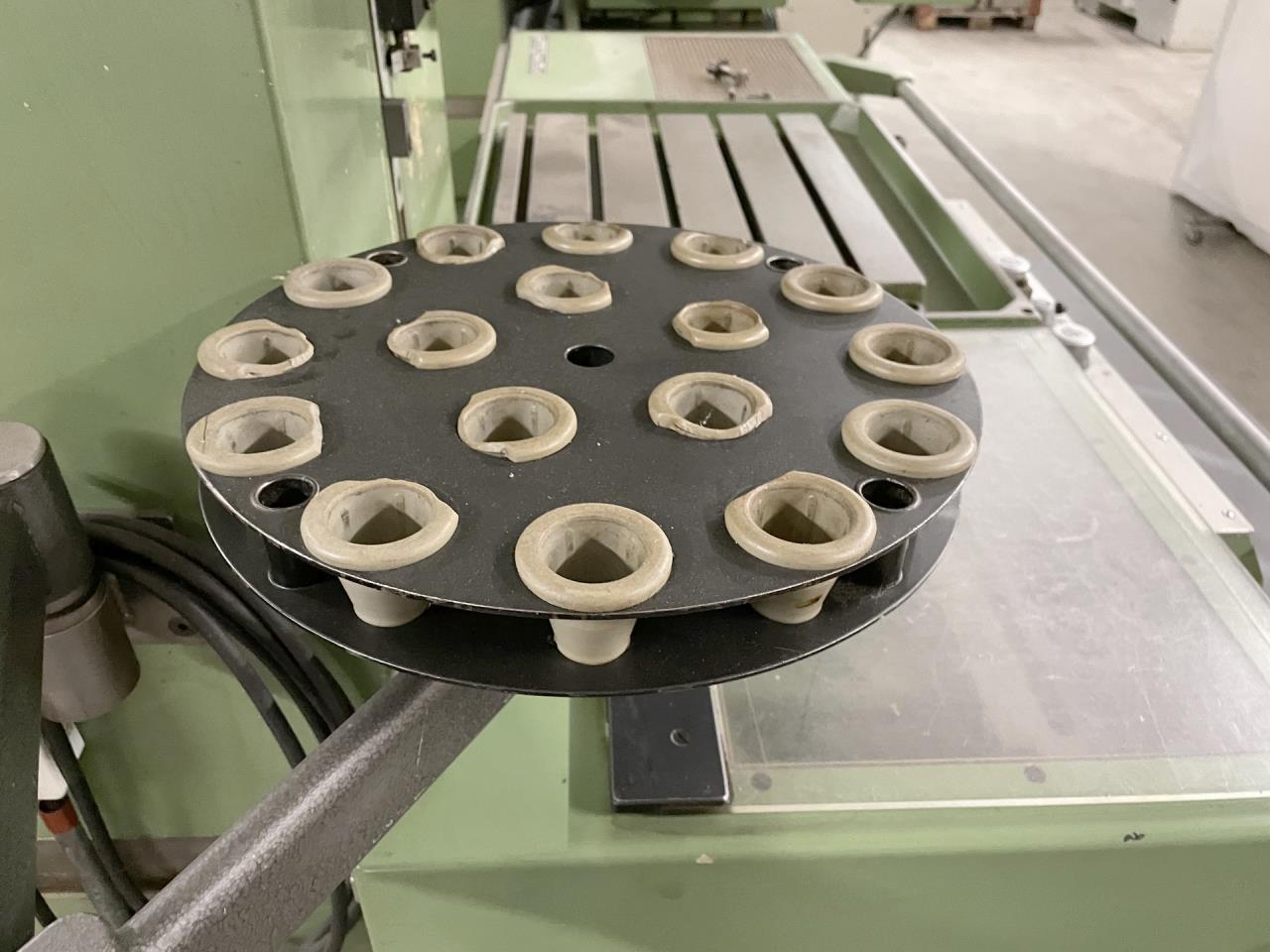

Tool holder deposit
BREGNARD table
Technical specifications and pictures without guarantee.
