stock no. :
20270
Machine's group :

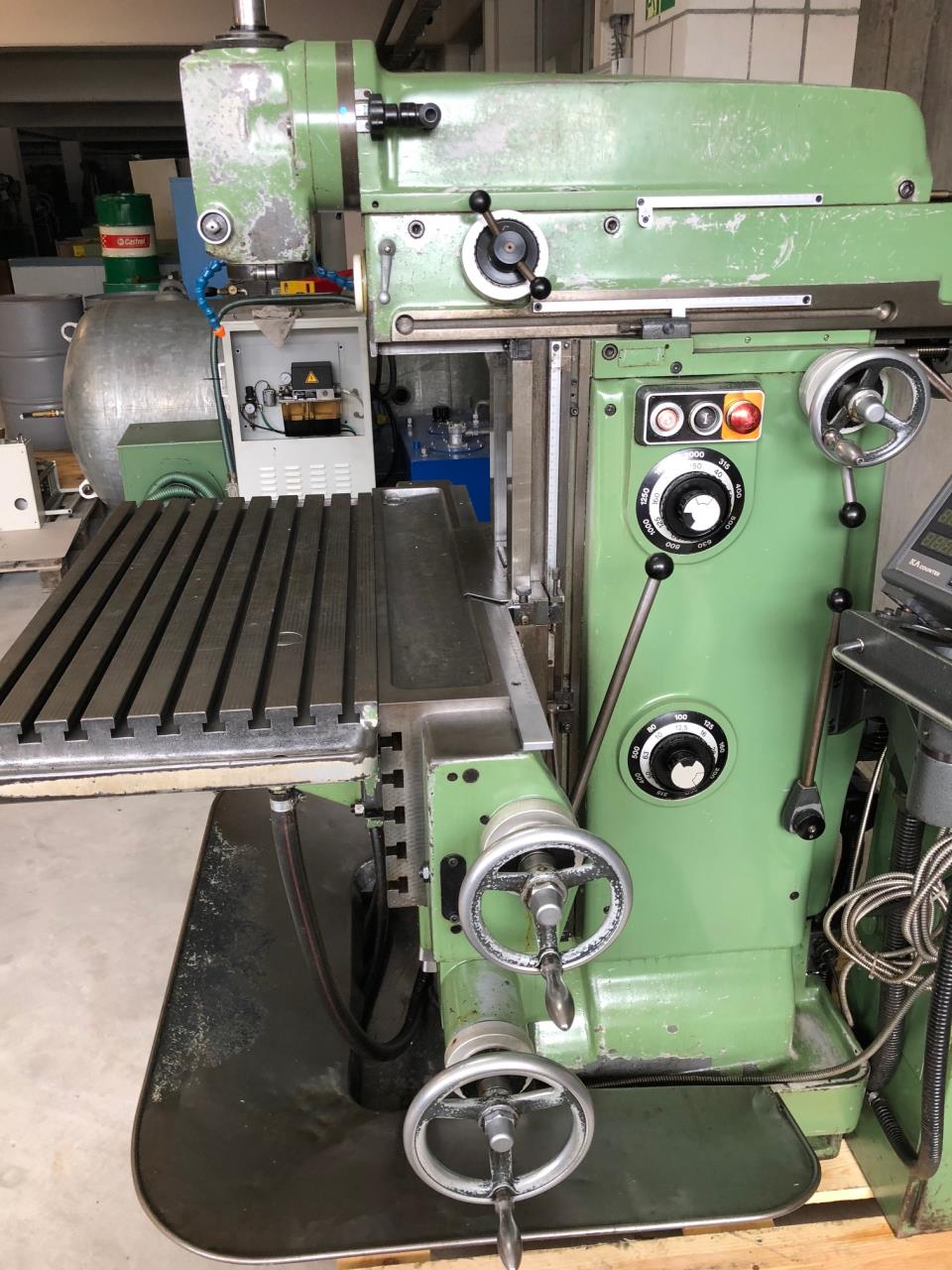

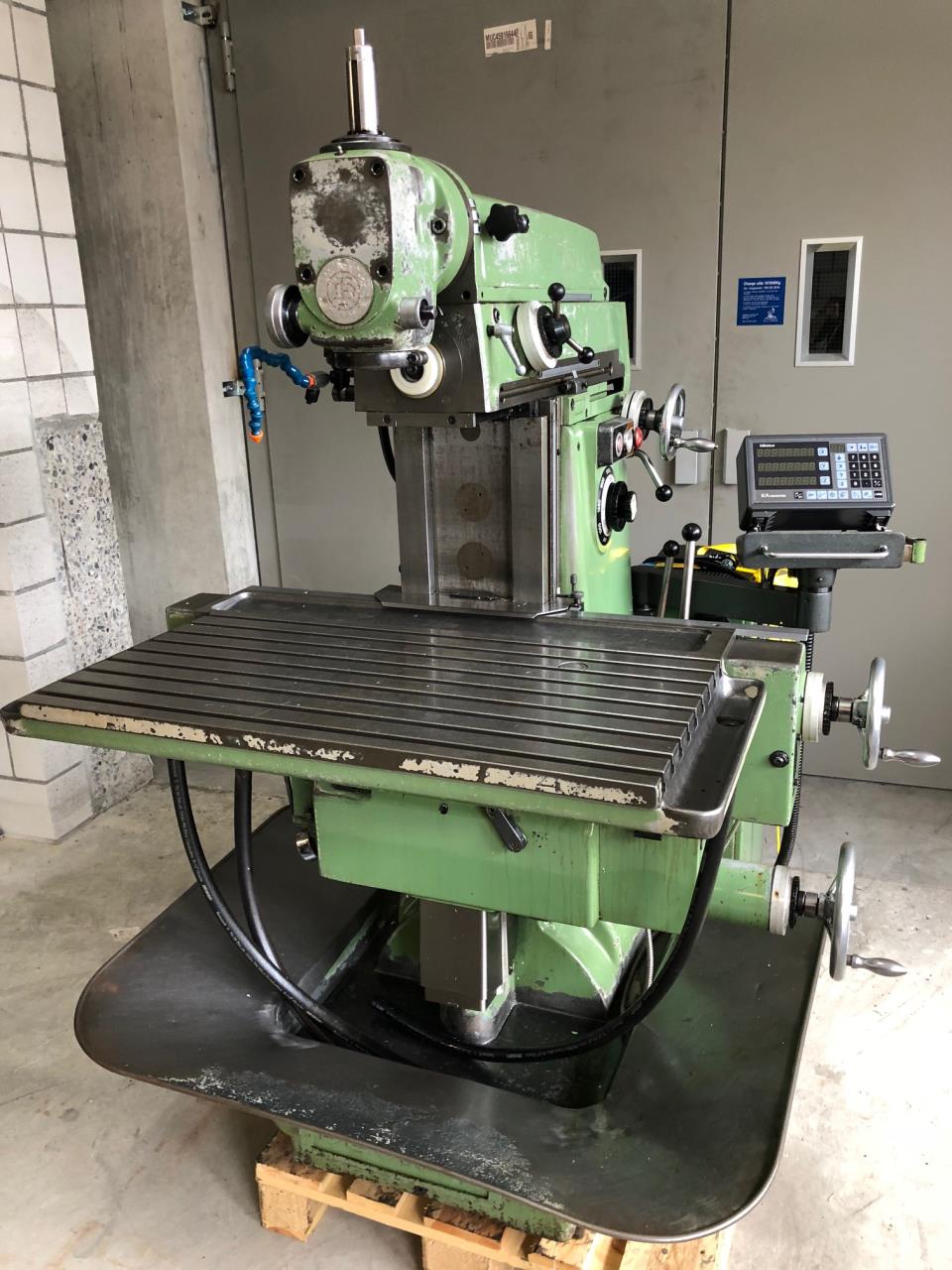

Universal milling machine
Type :
DECKEL FP 3
Information request
SAM Logo
Back
Technical data
Table length
600 mm
Table width
350 mm
Longitudinal travel (X-axis)
500 mm
Transversal travel (y axis)
300 mm
Vertical travel (z axis)
380 mm
Distance from vertical spindle to table
470 mm
Spindle speeds:
    number (steps)
18
       from
40 rpm
       up to
2000 rpm
Taper in spindle
40 ISO
Feeds steps:
18
    longitudinal from
10.0 mm/min
       up to
500 mm/min
    transversal from
10.0 mm/min
       up to
500 mm/min
    vertical from
10.0 mm/min
       up to
500 mm/min
Vertical quill travel
100 mm
Rapid traverse:
    longitudinal
1.5 m/min
    transversal
1.5 m/min
    vertical
1.5 m/min
Voltage 50 Hz 3x
380 Volt
Motor output
4.0 HP
Machine's weight about
1100 kg
Overall dimensions machine:
    Length
2200 mm
    Width
1800 mm
    Height
2000 mm

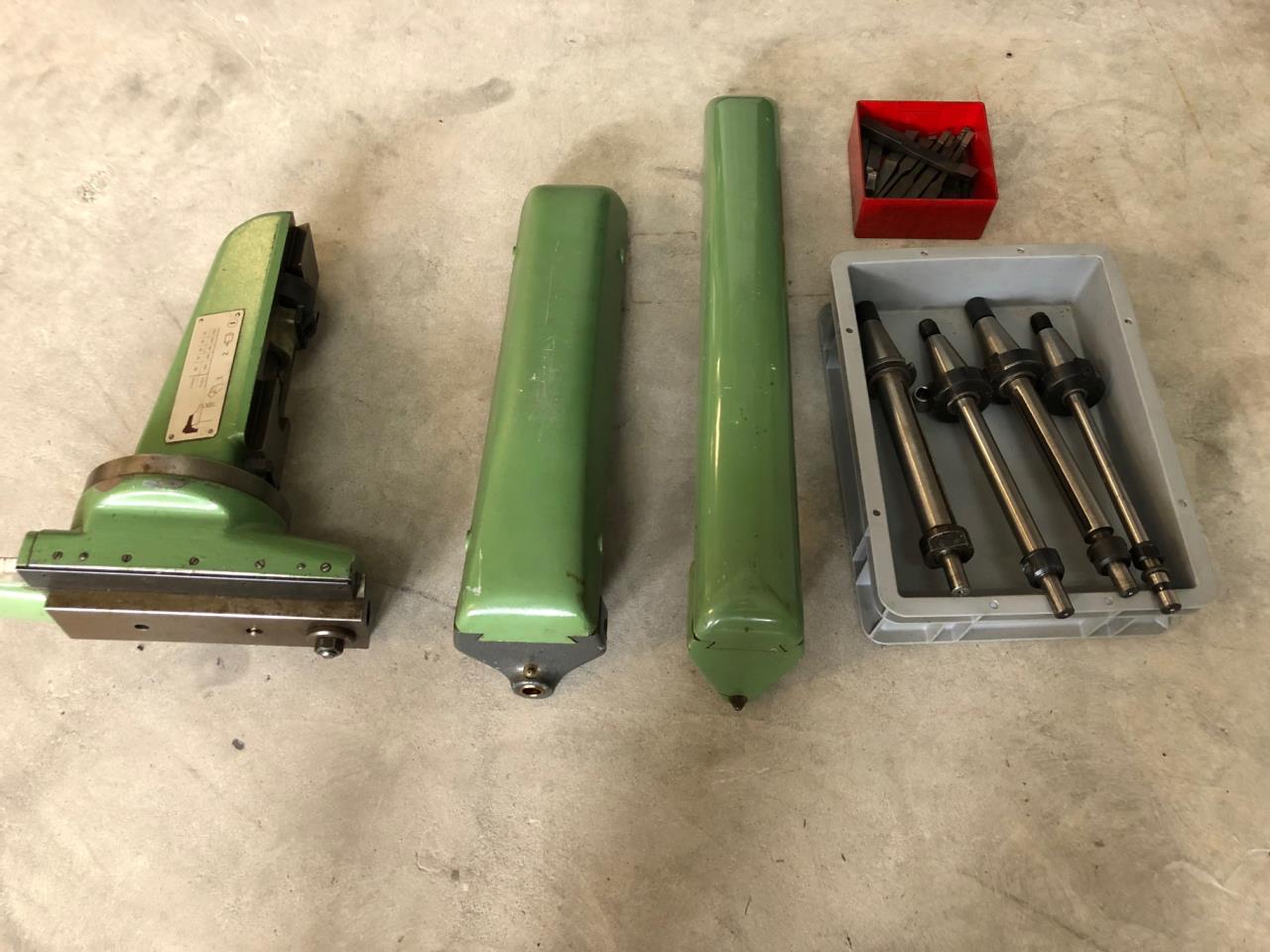

Various accessories:

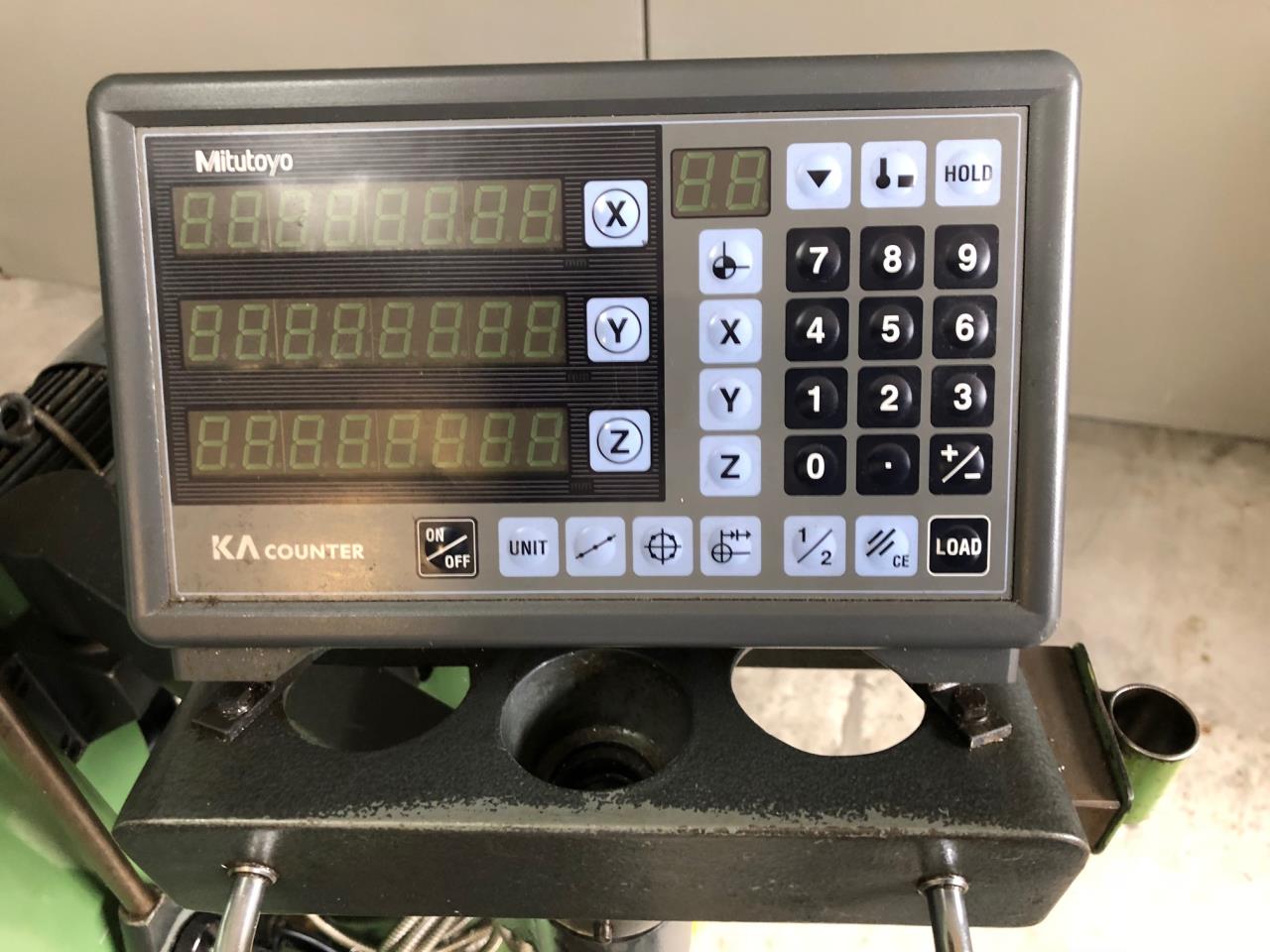

Digital readout number of axis:
3
    Manufacturer
Mitutoyo

Technical specifications and pictures without guarantee.
